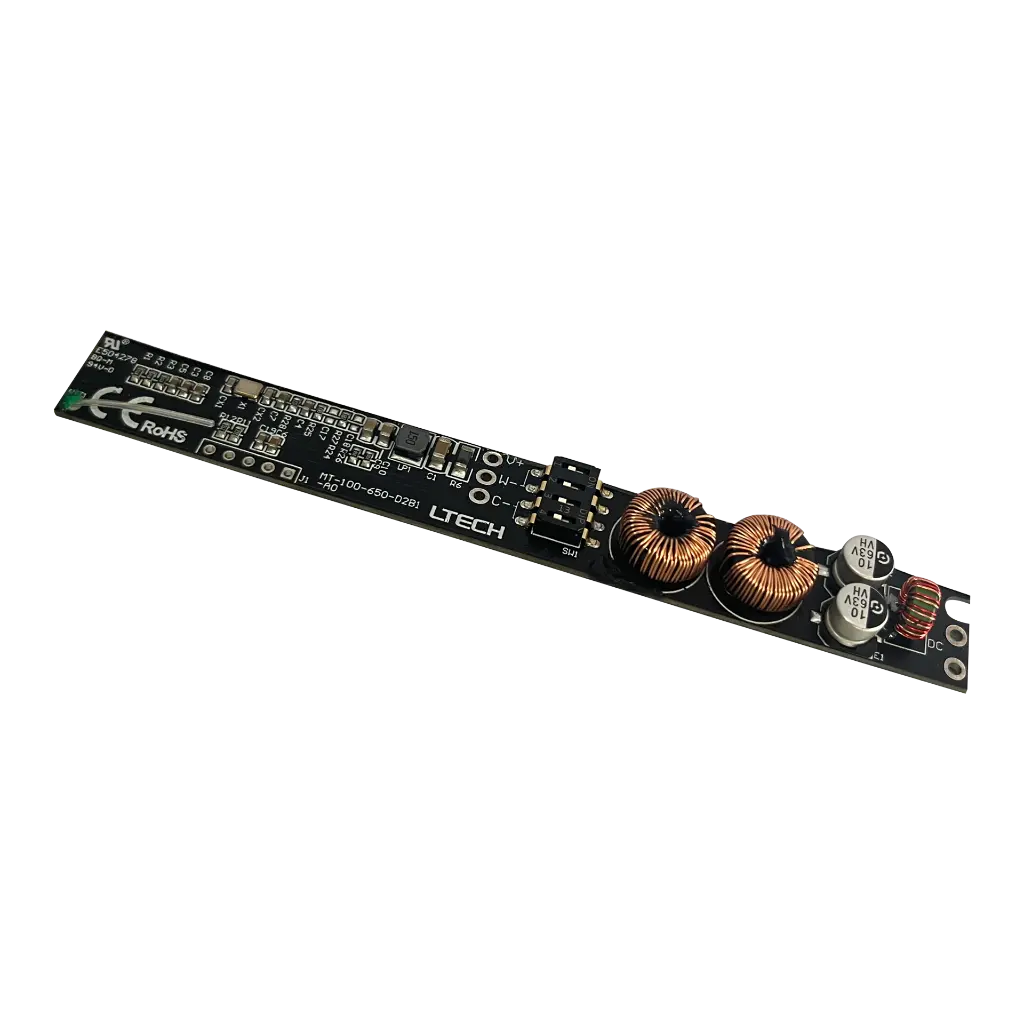

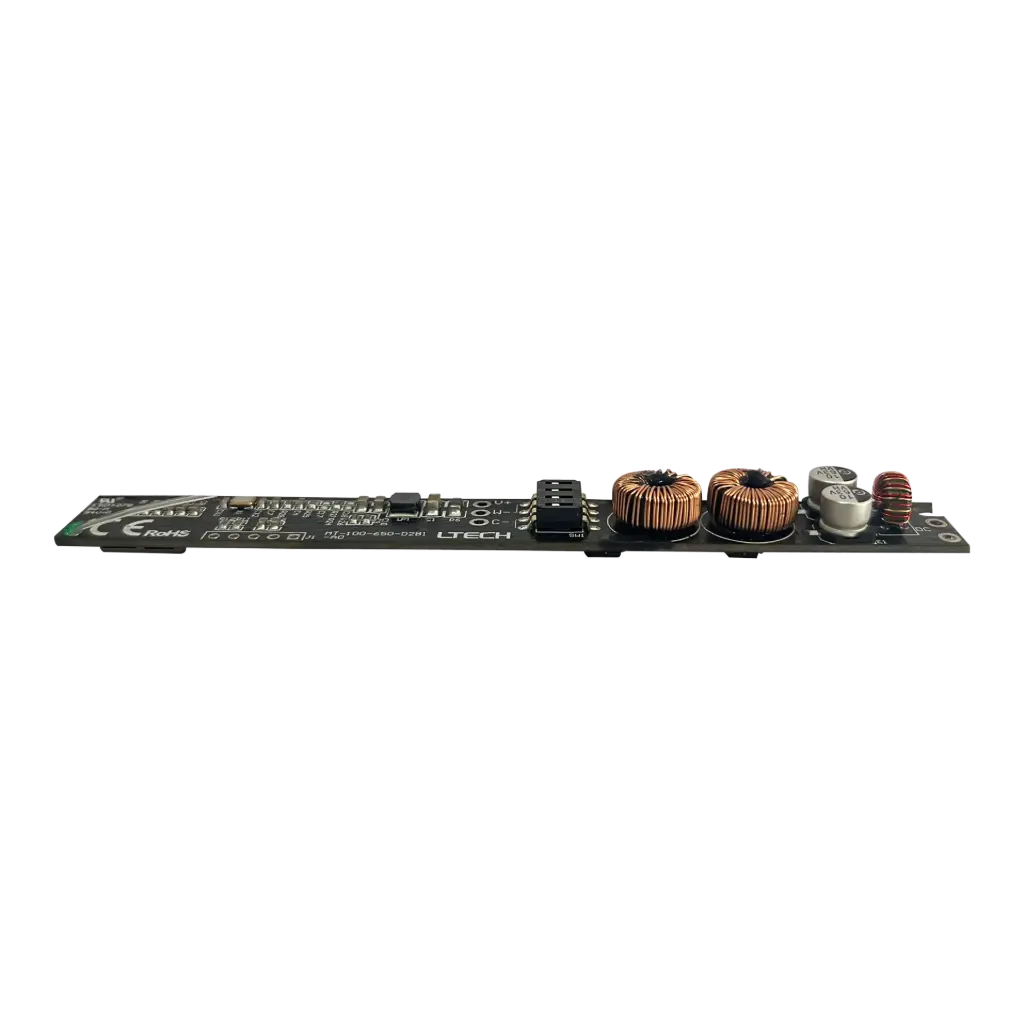

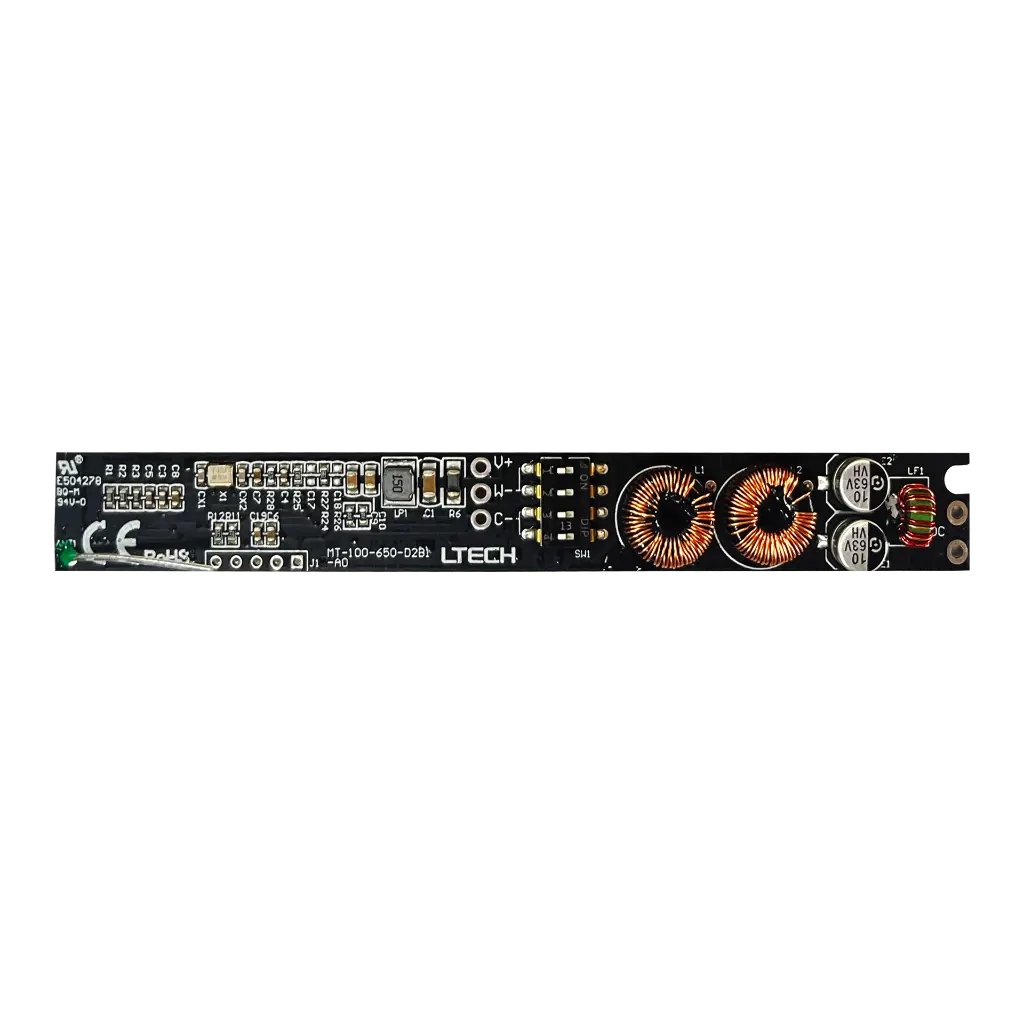

Designed for magnetic track and linear lamps. Features Bluetooth 5.0 SIG Mesh for reliable, stable networking and direct control via iOS or Android devices. Supports online upgrades, soft start time, and lighting status settings. Compatible with Super Panel for voice control, cloud scenes, and automation. No input polarity required. Offers multiple output current settings with DC-to-DC constant current output. Ultra-compact, suitable for STUCCHI standard housings. Magnetic installation ensures quiet operation without high-frequency noise. Smooth, flicker-free dimming. Built-in protections for short circuit, overload, no-load, and reverse connection. 5-year warranty.
• Input Voltage: 48V DC ±5% (No polarity)
• Input Current: <0.57A
• Output Voltage: 9-39V DC
• Output Current Range: 500-650mA
• Output Power: 4.5W-25.35W
• Channel: 2
• Dimming Range: 0-100%, down to 0.1%
• Dimming Interface: Bluetooth 5.0 SIG Mesh
• Working Temperature: ta: -30~55°C tc: 87°C
• Dimensions: L115.5 × W14 × H10 (mm)
