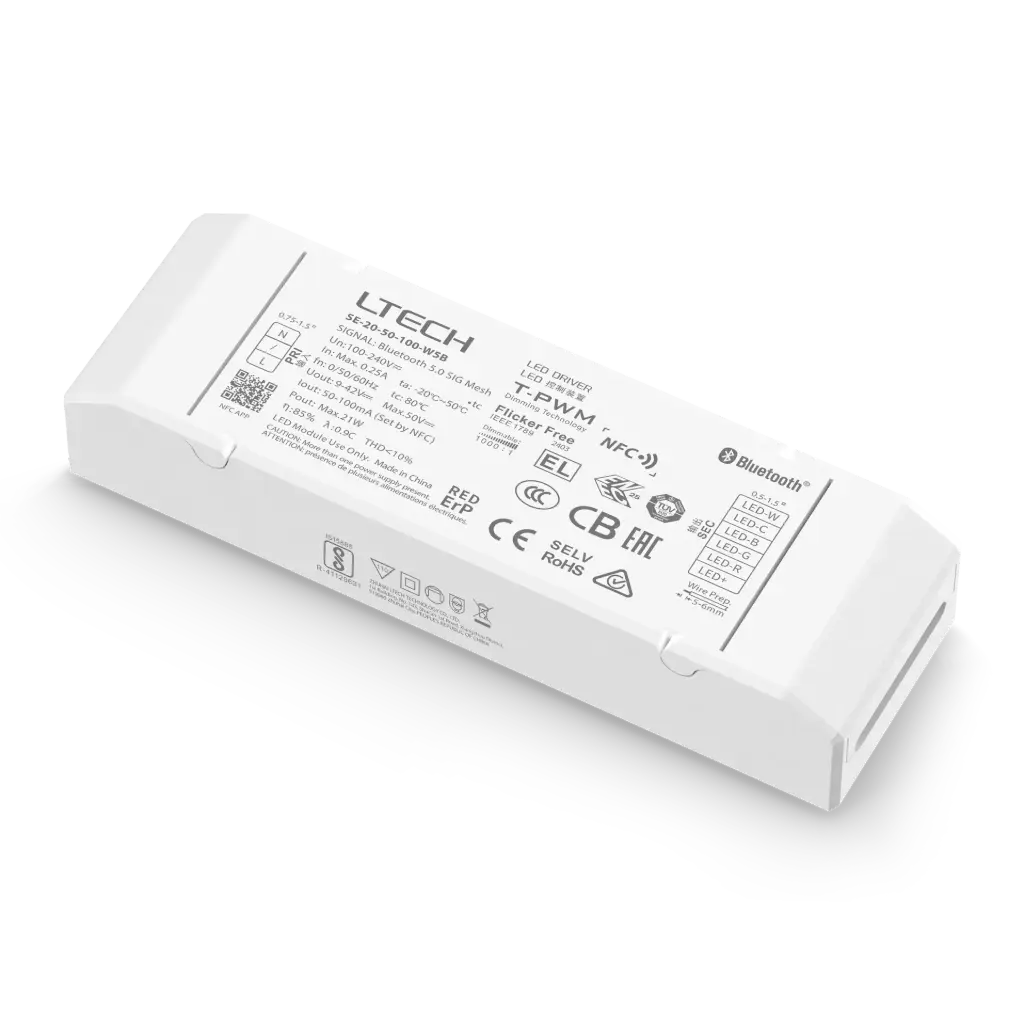

The Intelligent LED Driver features a V0 flame-retardant PC housing, ultra-compact screwless end cap, and adjustable output down to 1 mA via NFC or App. It offers 0-100% flicker-free dimming with T-PWM™ technology, complies with EU ErP standby <0.5 W, and includes protections for overheat, overvoltage, overload, and short circuit. Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor fixtures, with up to 100,000 hours of life and a 5-year Rubycon capacitor warranty.
• Input Voltage: 100-240V DC 100-240V AC
• Output Voltage: 9-42V DC Max. 50V DC
• Output Current: 50-100mA (Set this parameter using the NFC APP）
• Output Range: 0.45W-21W
• Dimming Range: 0.1~100%, down to 0.1%
• Dimming Interface: Bluetooth 5.0 SIG Mesh
• Working Temperature: ta: -20~50°C tc: 80°C
• Dimensions: L127 x W40 x H23 (mm)
• Weight (N.W): 100g
