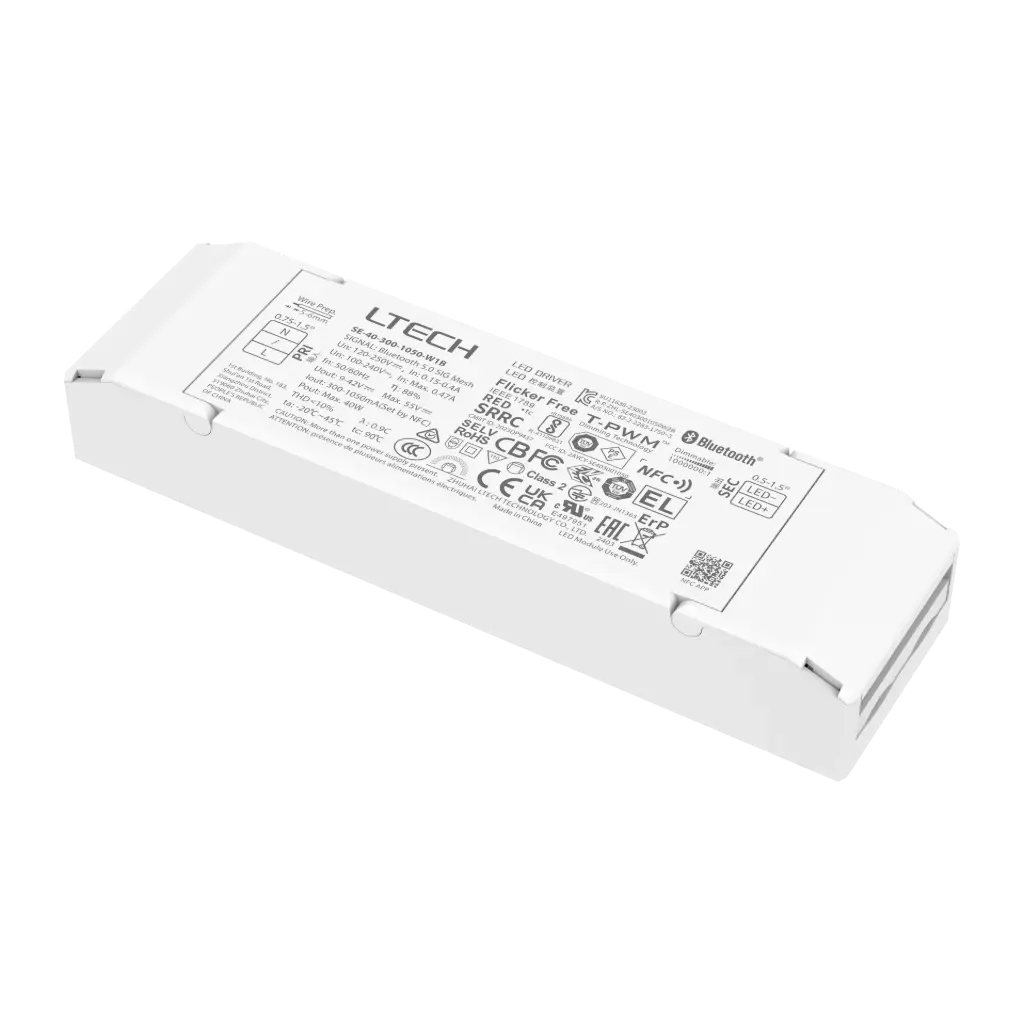

Ultra-compact LED driver with V0 flame-retardant housing and screwless end cap. Adjustable output current in 1 mA steps, soft-on/fade-in dimming, and T-PWM™ for flicker-free lighting. Bluetooth 5.0 SIG Mesh enables control via iOS/Android and app-based parameter adjustments. Features overheat, overload, short-circuit protection, and 0 V output at no load. Complies with EU ErP, suitable for Class Ⅰ/Ⅱ/Ⅲ fixtures, 100,000 h life, 5-year warranty.
• Input Voltage: 120-250V DC 100-240V AC
• Output Voltage: 9-42V DC Max. 55V DC
• Output Current: 300-1050mA
• Output Power: 2.7W-40W
• Dimming Range: 0~100% down to 0.0001%
• Dimming Interface: Bluetooth 5.0 SIG Mesh
• Working Temperature: ta: -20~45°C tc: 90°C
• Dimensions: L142 x W40 x H23 (mm)
• Weight (N.W): 170g
