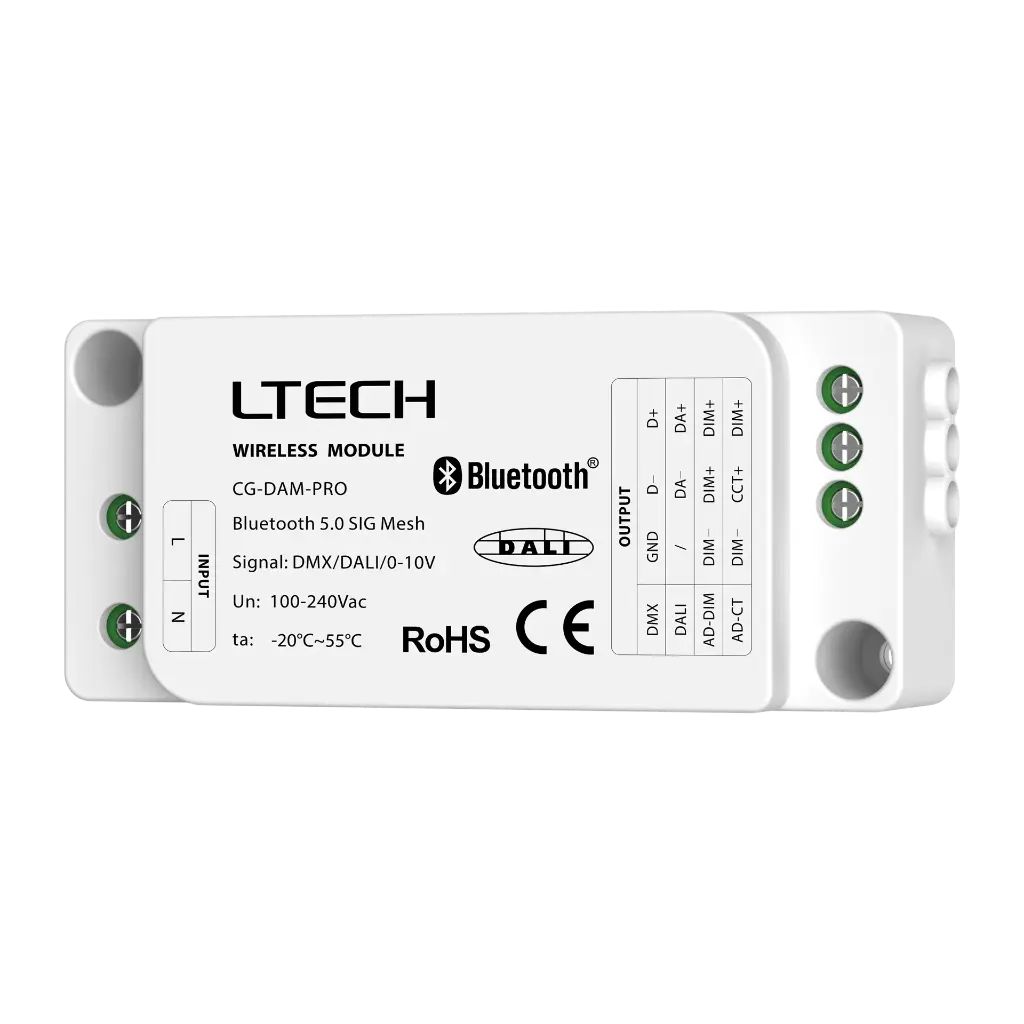

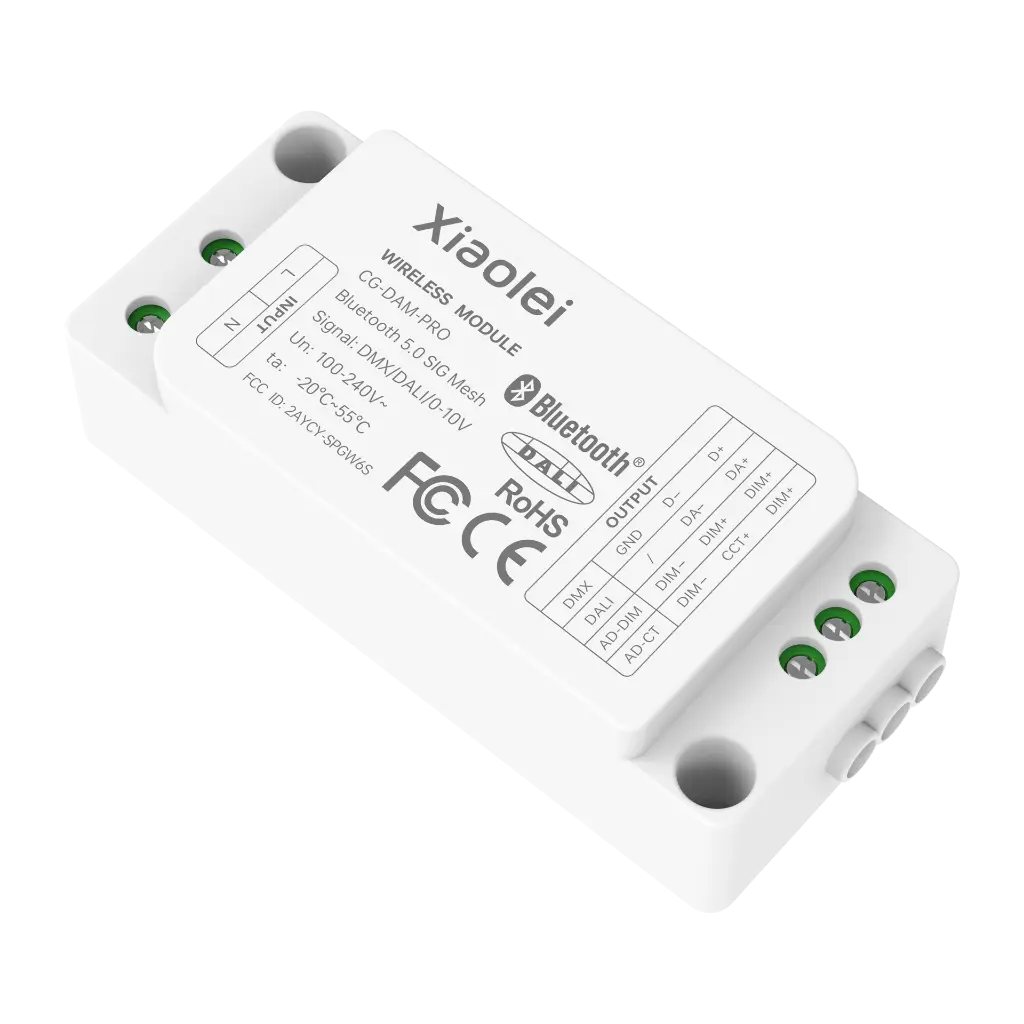

Bluetooth 5.0 SIG Mesh Controller
Compact V0 flame-retardant housing with stable Bluetooth 5.0 networking. Combines DMX, DALI, and 0-10V into one output port with DALI bus power supply. Supports DIM, CT, RGB, RGBW, and RGBCW lights (0-10V for DIM/CT only). Features OTA updates, ultra-low power consumption, factory reset, fade time, and lighting status settings. CT lights support circadian lighting with customizable curves. Runs local scenes without Internet and works with a gateway for cloud scenes and automation. Ideal for large projects such as villas, hotels, and supermarkets.
• Wireless Protocol Type: Bluetooth 5.0 SIG Mesh
• Output Signal: DMX / DALI / 0-10V
• Working Voltage: 100-240V~
• DALI Output: 12V (Max.90mA)
• Working Temperature: -20°C~55°C
• Product Size: L84 × W35 × H23 (mm)
• Weight (G.W.): 30g
