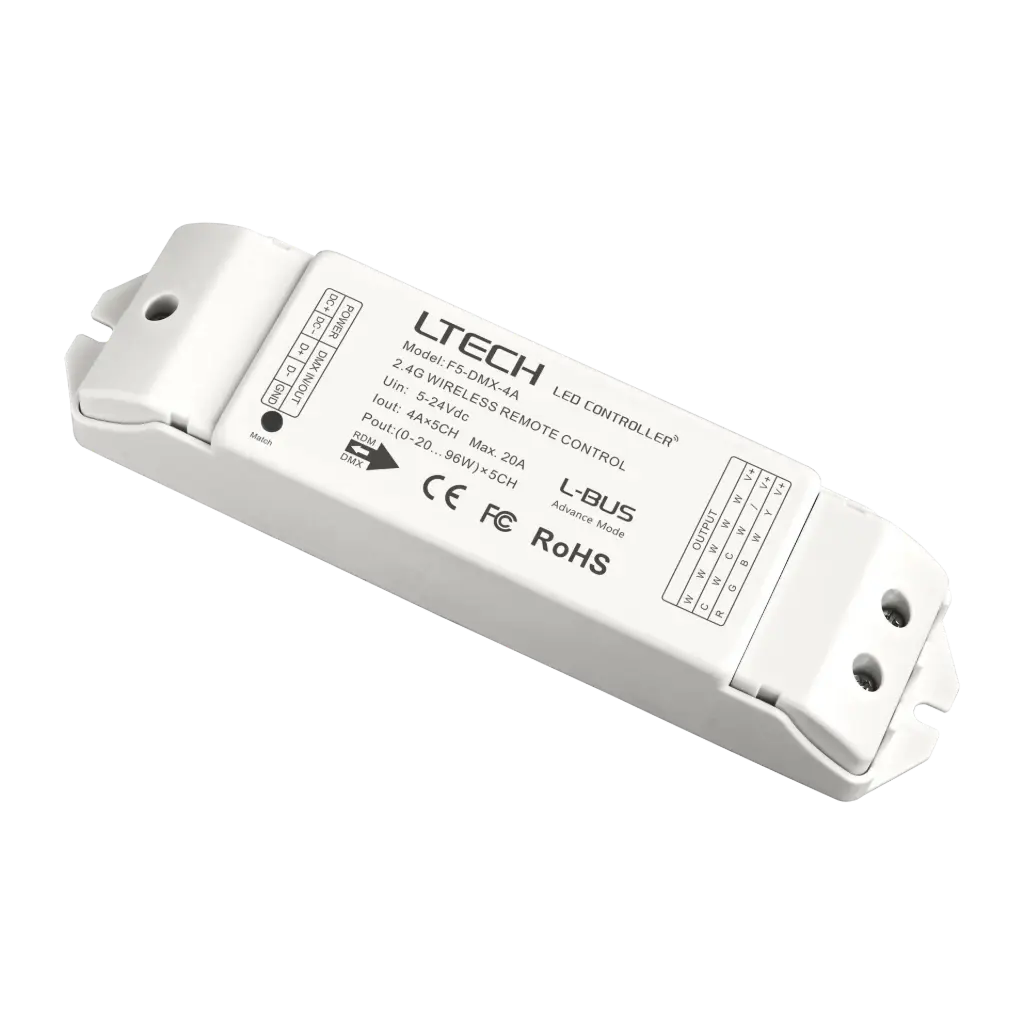

Controller supports RF 2.4GHz wireless and DMX wired connection. Compatible with dimming, CT, RGB, RGBW, and RGBWY lamps, F-series, RC4-RF-B, and Q-series remotes, EX series touch panels, and WiFi-106/108 gateways.
• Dimming Interface: DMX/RDM
• Wireless Signal: RF 2.4GHz
• Input Voltage: 5~24V DC
• Current Load: 4A x 5CH/5A x 4CH Max. 20A
• Output Power: (0~20W...96W) x 5CH Max. 480W
• Working Temperature: -30°C~55°C
• Dimensions: L175 x W44 x H30 (mm)
• Weight: 130g
