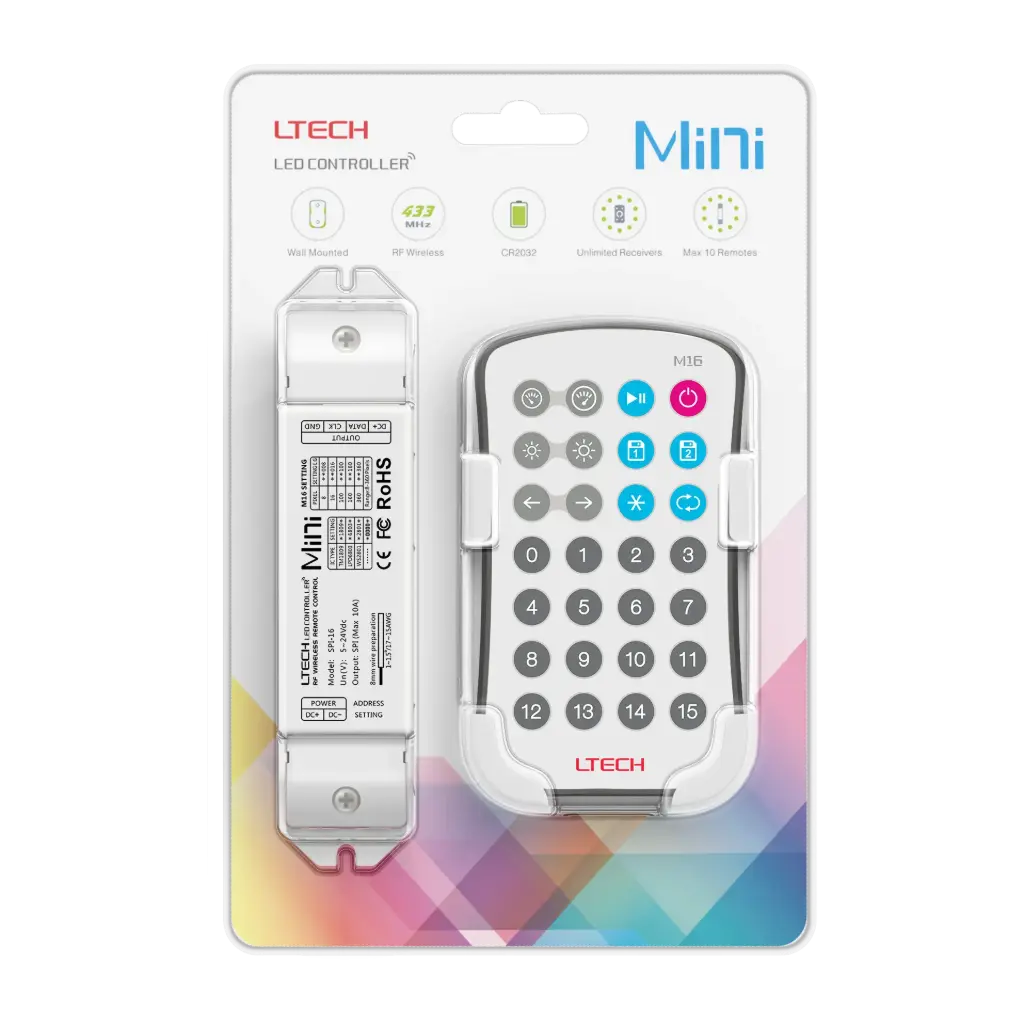

The SPI-16S is a compact Mini LED pixel controller paired with the M16S RF remote, capable of controlling almost all IC-driven LED lights. It features built-in dynamic effects and customizable scene modes.
With the M16S remote, users can select lighting effects, set pixel quantity, adjust speed and brightness, change direction, modify RGB sequence, select IC type, and store or play custom scenes.
Controller Model: SPI-16S
• Working voltage: 5~24V DC
• Output: SPI (Max 10A)
• Wireless signal: 2.4GHz
• Working temperature: -30℃~55℃
• Pixel range: 8~1020 pixels
• Size: L135 × W30 × H20 (mm)
• Weight (N.W): 52g
Suitable IC types: various, can also be customized
Remote Model: M16S
• Working Voltage: 3V DC (battery CR2032)
• Wireless Signal: RF 2.4GHz
• Changing Mode: 16 kinds
• Working Temperature: -30°C~55°C
• Remote Dimensions: L104 x W58 x H9 (mm)
• Remote Weight (N.W.): 42g
