The M series LED controller supports eight types of remotes (patented technology), allowing one receiver to handle single color/CT dimming and RGB/RGBW control. RF remotes enable brightness and speed adjustments, as well as customizable color and dynamic lighting modes.

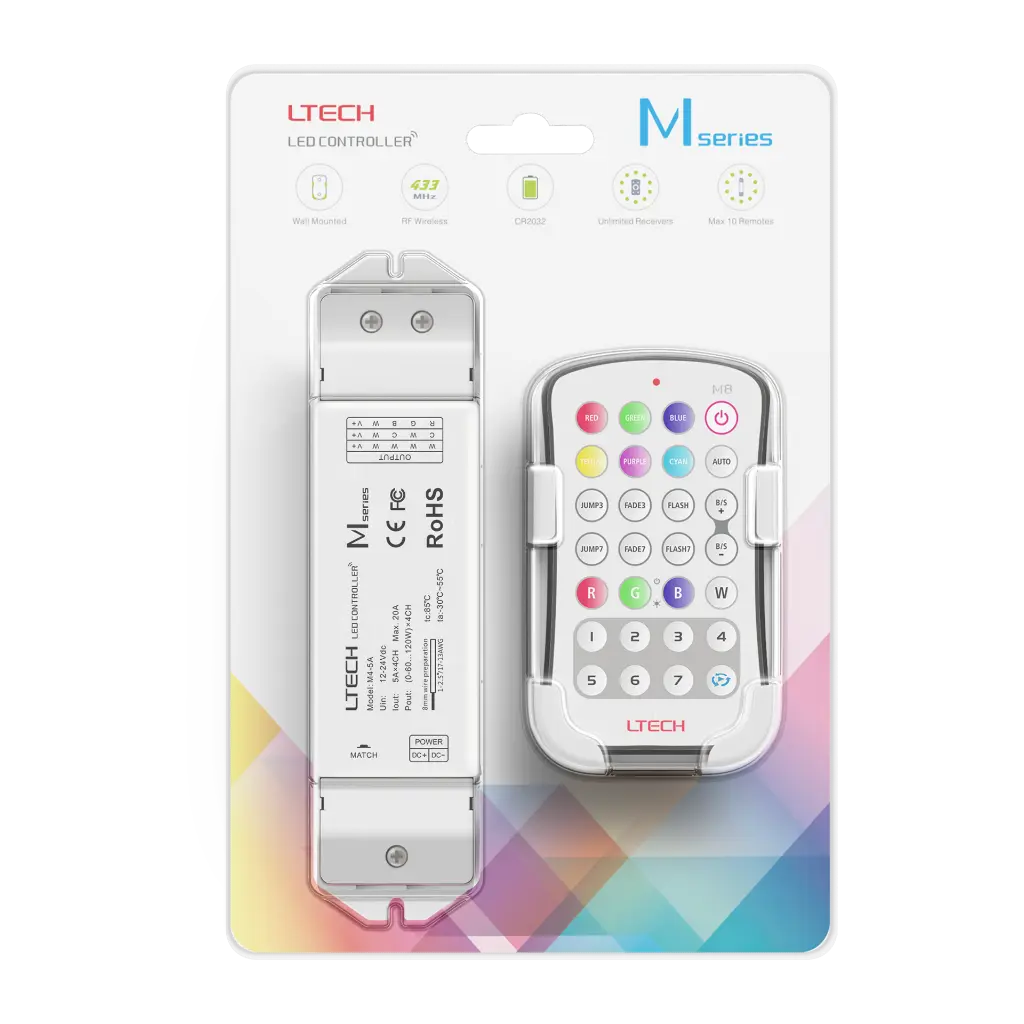

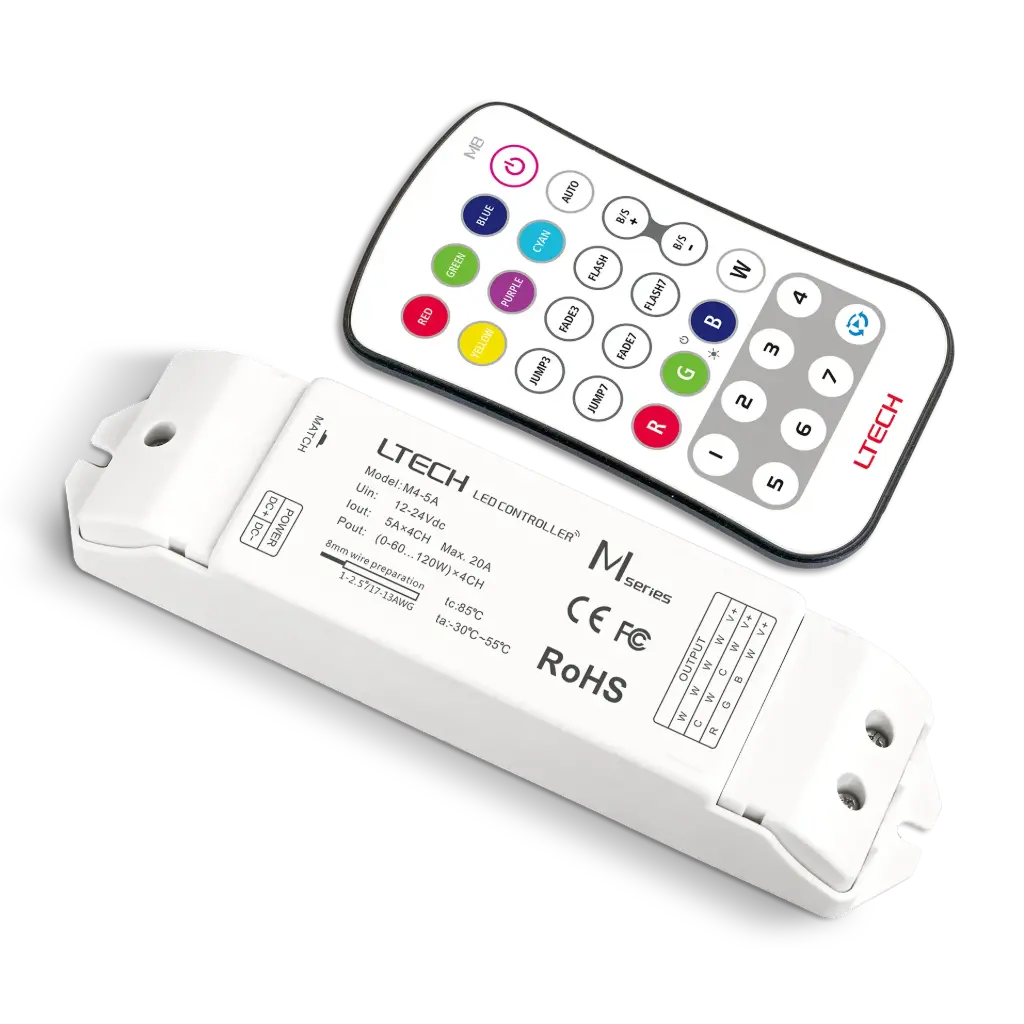

Receiver Model: M4-5A
• Input voltage: 12~24V DC
• Maximum load current: 5A × 4CH, maximum 20A
• Maximum load power: (0~60W...120W)×4 CH, maximum 480W
• Protection: short circuit/overcurrent protection
• Working temperature: -30℃~55℃
• Product size: L175 × W44 × H30(mm)
• Weight (net weight): 125g
Remote Model: M8
• Working Voltage: 3V DC (battery CR2032)
• Working Frequency: 433.92MHz
• Remote Distance: 30m
• Working Temperature: -30°C~55°C
• Remote Dimensions: L104 x W60 x H9 (mm)
• Remote Weight (N.W.): 42g
