The MINI series LED controller showcases LTECH’s more than 10 years of independent R&D in the LED industry. At just one-third the size of a standard controller, it still delivers powerful functions including dimming, RGB, and color temperature control. With its compact size, high-cost performance, and innovative design, it brings users both convenience and versatility.

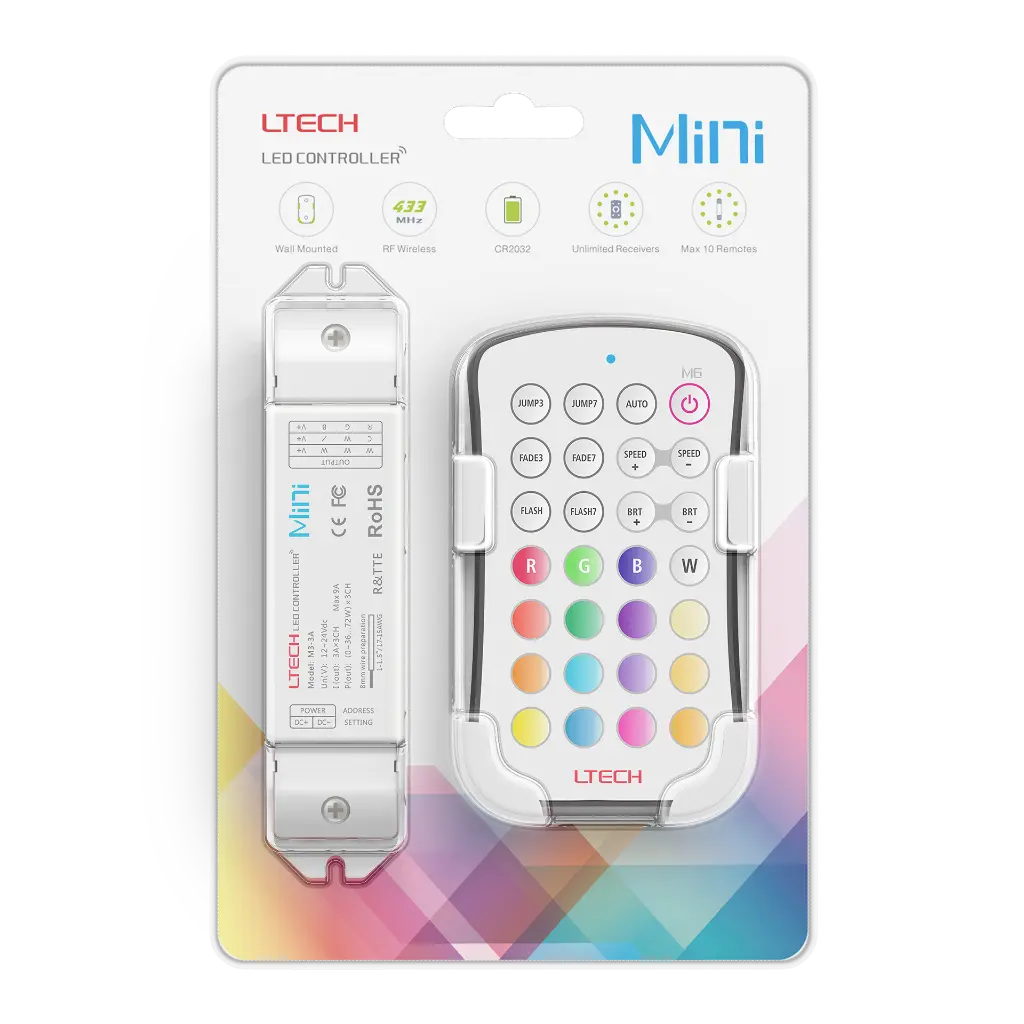

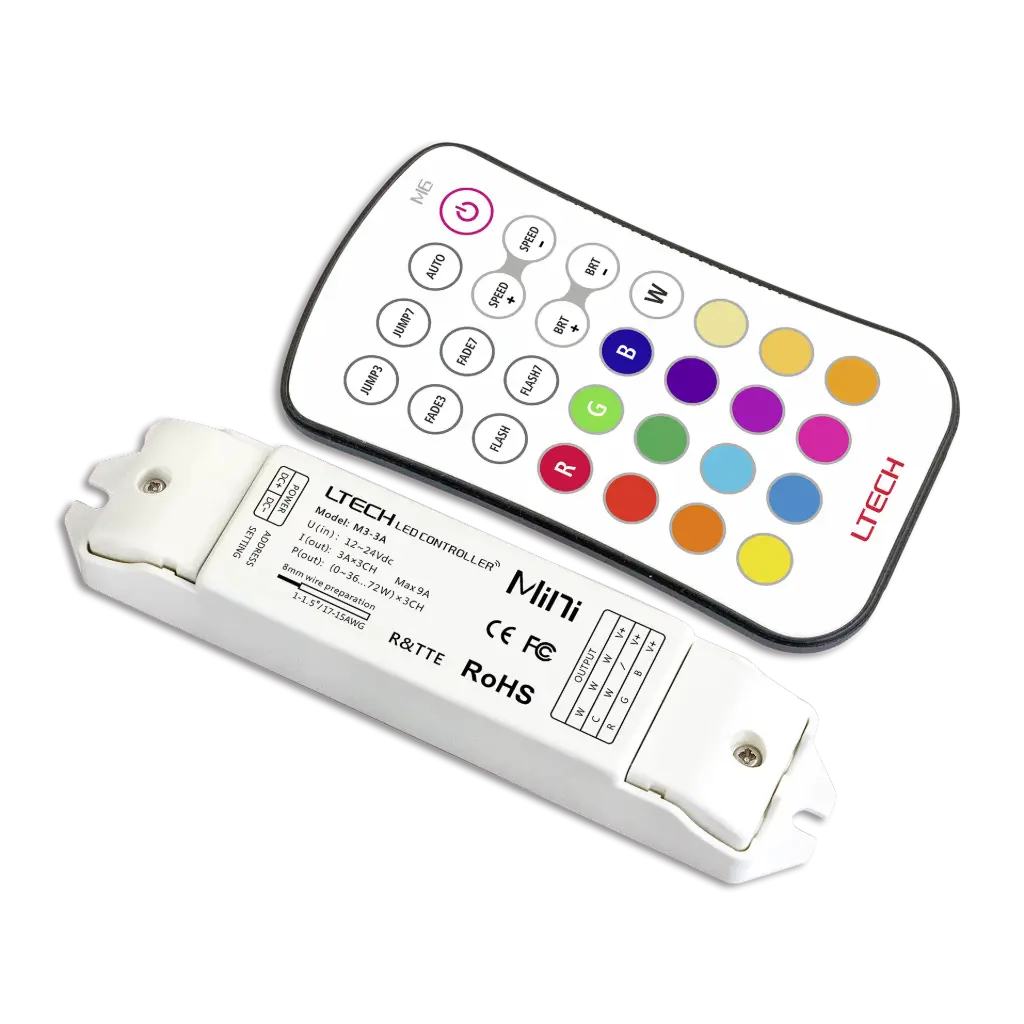

Receiver Model: M3-3A
• Input voltage: 12~24V DC
• Load current: 3A × 3 channels, maximum 9A
• Maximum load power: (0~36W...72W) × 3CH
• Working temperature: -30℃~55℃
• Product size: L135 × W30 × H20 (mm)
• Weight (N.W): 47g
Remote Model: M6
• Working Voltage: 3V (battery CR2032)
• Working Frequency: 433.92MHz
• Working Temperature: -30°C~55°C
Dimensions: L104 x W58 x H9 (mm)
• Weight (N.W): 42g
