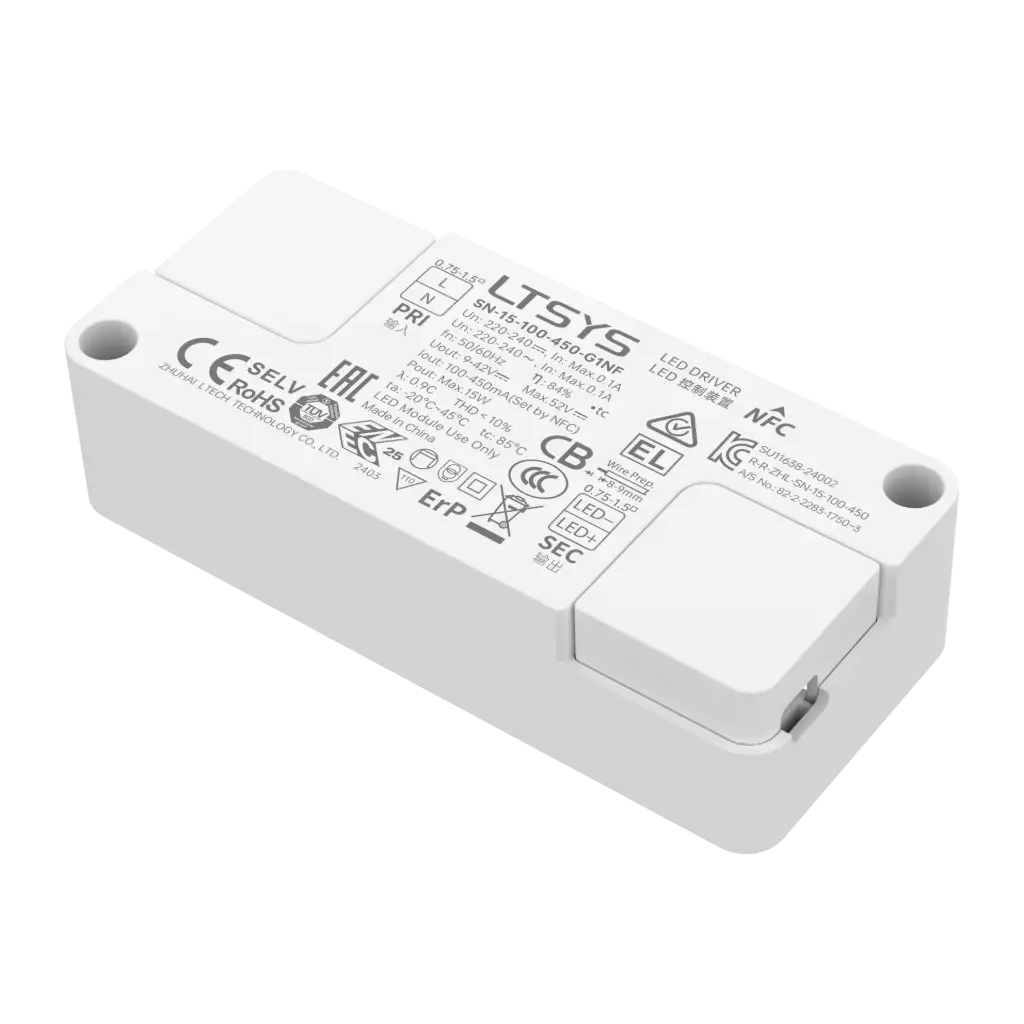

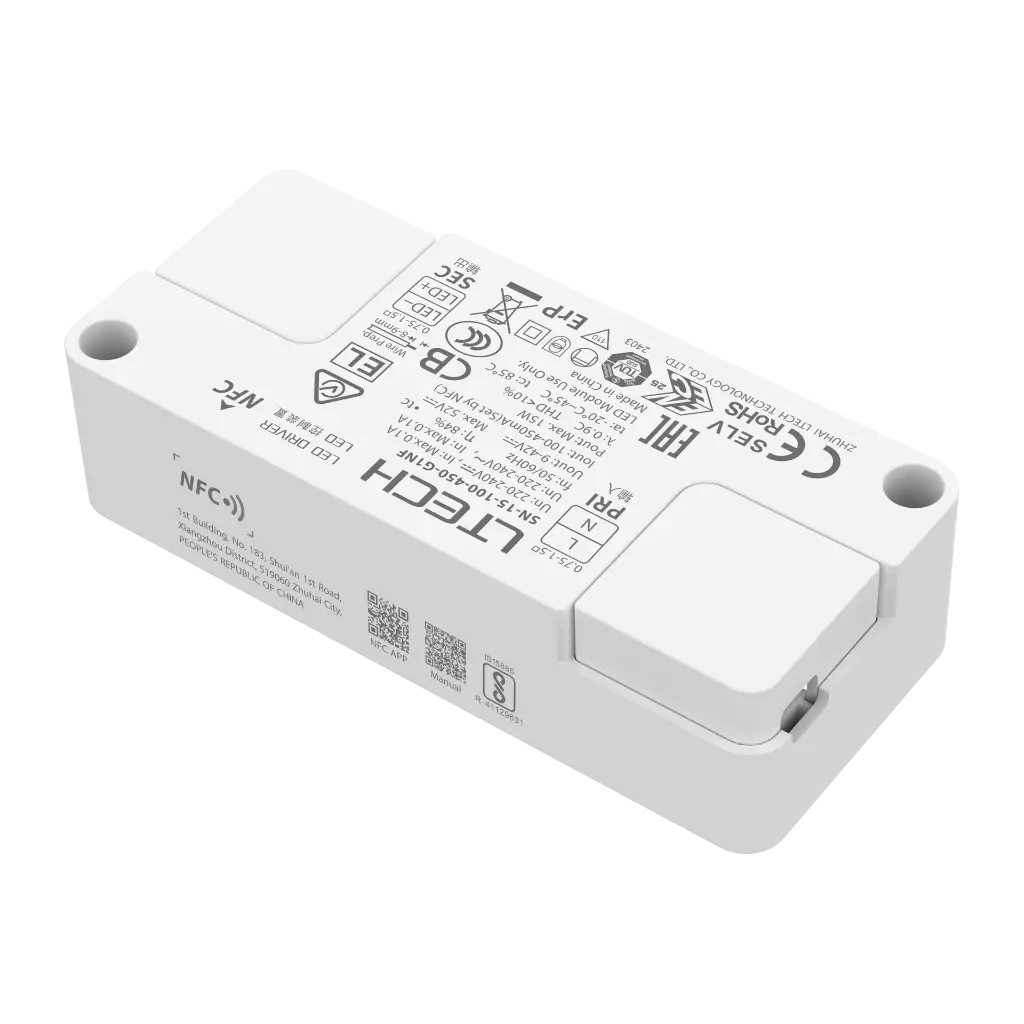

LED Driver (Constant Voltage)
Ultra-compact constant current LED driver with V0 flame-retardant PC housing and a screwless end cap. Adjustable output current with 1 mA steps; maximum brightness and other parameters can be set via the app. Features soft-on and fade-in dimming for comfortable lighting and intelligent thermal management to protect driver life. Includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Suitable for Class I/II/III indoor fixtures, including office, decorative, and commercial lighting. High performance, high efficiency, low THD, and backed by a 5-year warranty.
• Input Voltage Range: 220-240V AC 220-240V DC
• Input Current: M≤0.09A
• Output Voltage: 9-42V DC
• Output Current: 100-450mA
• Output Power Range: 0.9W-15W
• Working Temperature: ta: -20~50°C tc: 85°C
• Dimensions: L88 × W38 × H22 (mm)
• Weight (G.W.): 58g±10g
