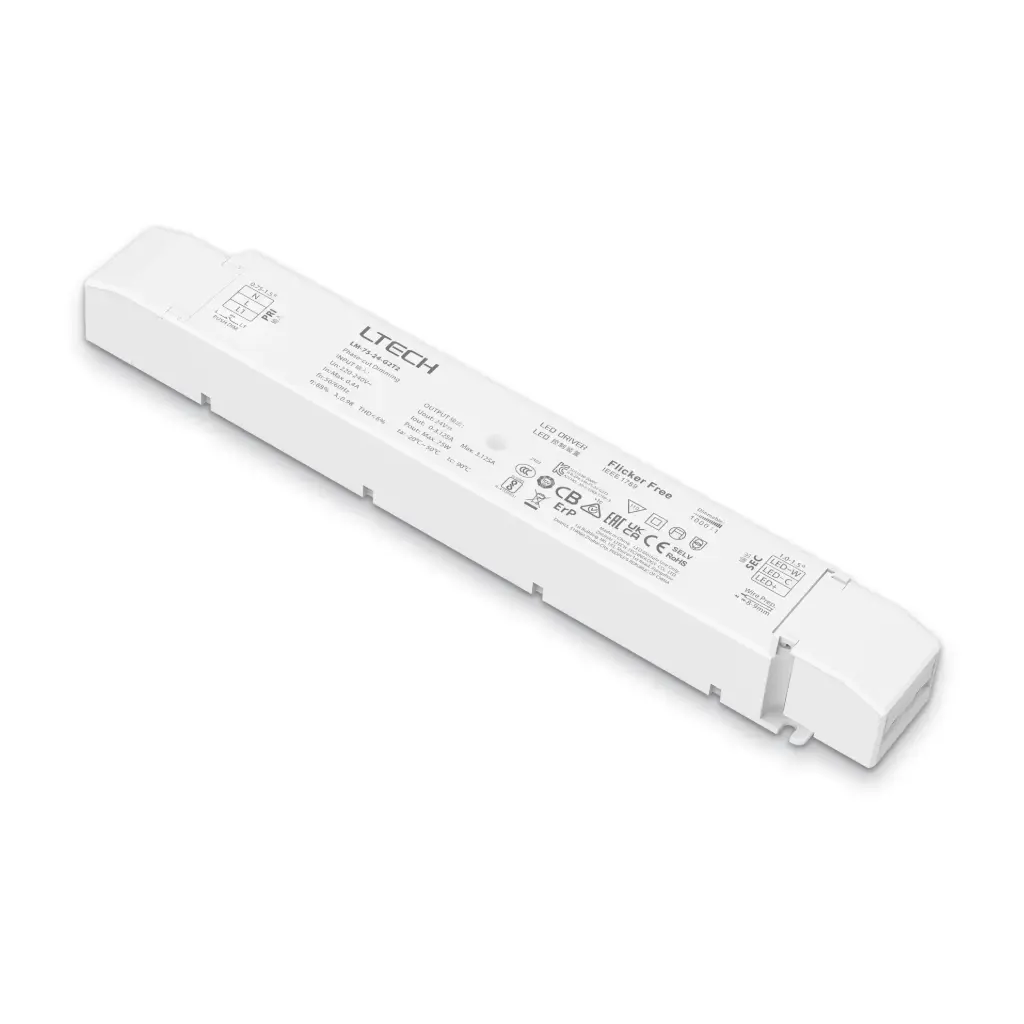

LTECH LTSYS Driver CV TRIAC 2CH 24V 75W - LM-75-24-G2T2

LED CT Intelligent Driver (CV) Supports Leading Edge (Triac), Trailing Edge (ELV) phase-cut, and Push DIM/CCT. Soft-on and fade-in dimming enhances visual comfort. Features 2 independent SELV constant voltage output channels with constant power design to adjust brightness and color temperature simultaneously. Dimming range: 0-100%, starting from 0.1%, flicker-free with high-frequency exemption. High-efficiency driver: 88% efficiency, PF>0.98, THD<6%. Built-in protections for overload, over-temperature, short circuit, and over-voltage with automatic recovery. Suitable for Class I/II/III indoor fixtures. Lifetime up to 50,000 hours with 5-year warranty (Rubycon capacitor).

• Input Voltage: 220-240V AC

• Output Voltage: 24V DC

• Output Current: Max. 3.125A

• Output Power: Max. 75W

• Output Power Range: 0~75W

• Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM/CCT.

• Working Temperature: ta: -20~50°C tc: 90°C

• Dimensions: L293 x W43 x H30 (mm)

• Weight (G.W): 350g
