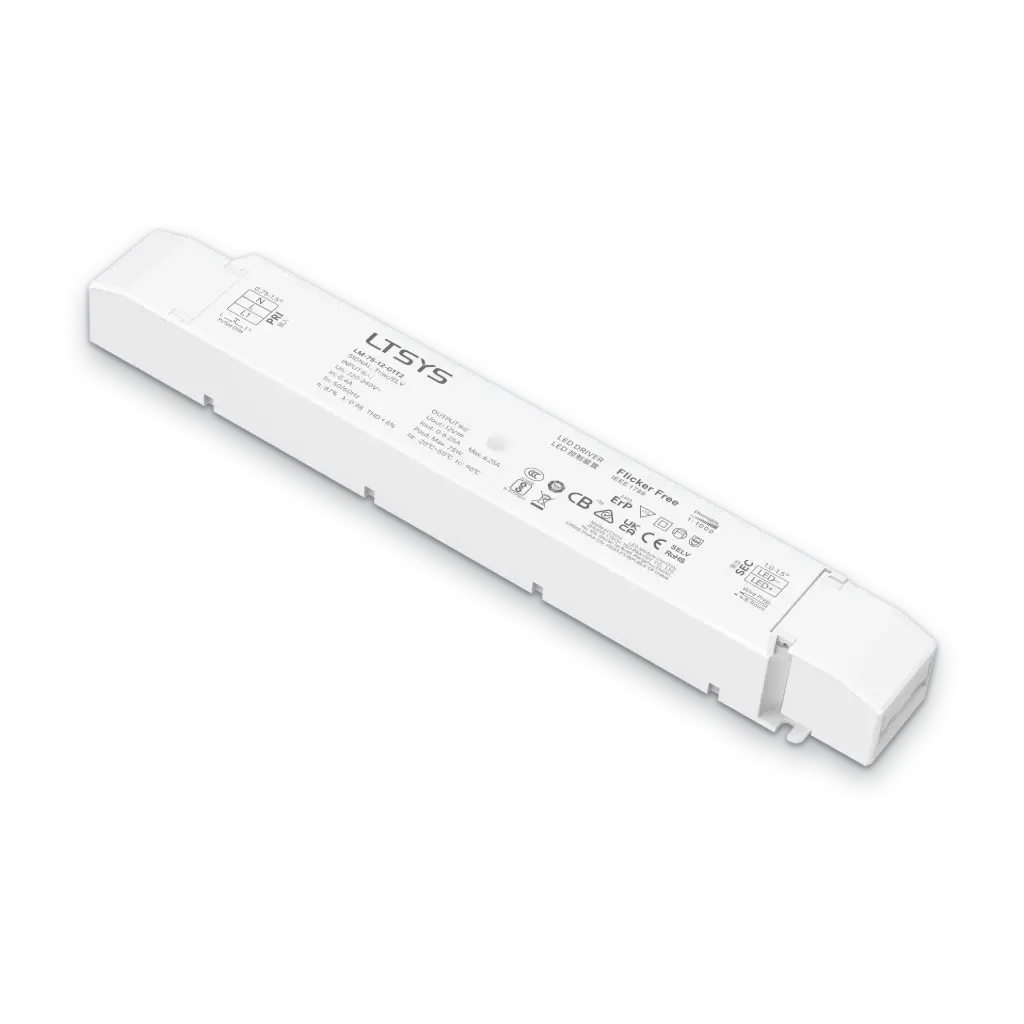

LTECH LTSYS Driver CV TRIAC 1CH 12V 75W - LM-75-12-G1T2

The LED Intelligent Driver (CV) supports Leading Edge (Triac), Trailing Edge (ELV) phase-cut, and Push DIM. It features soft-on and fade-in functionality for more comfortable lighting, with a 0-100% dimming range starting from 0.1% and flicker-free operation at high frequencies. The high-efficiency driver achieves 88% efficiency, PF >0.98, and THD <6%. Innovative thermal management ensures intelligent protection of the driver’s lifespan, with automatic recovery from overload, over-temperature, short circuit, and overvoltage conditions. Suitable for indoor lighting applications of Class I/II/III, it offers up to 50,000 hours of operation and comes with a 5-year warranty (Rubycon capacitor).

• Input Voltage: 220-240V AC

• Output Voltage: 12V DC

• Output Current: Max. 6.25A

• Output Power: Max. 75W

• Output Power Range: 0~75W

• Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.

• Working Temperature: ta: -20~50°C tc: 90°C

• Dimensions: L293 x W43 x H30 (mm)

• Weight (G.W): 350g
