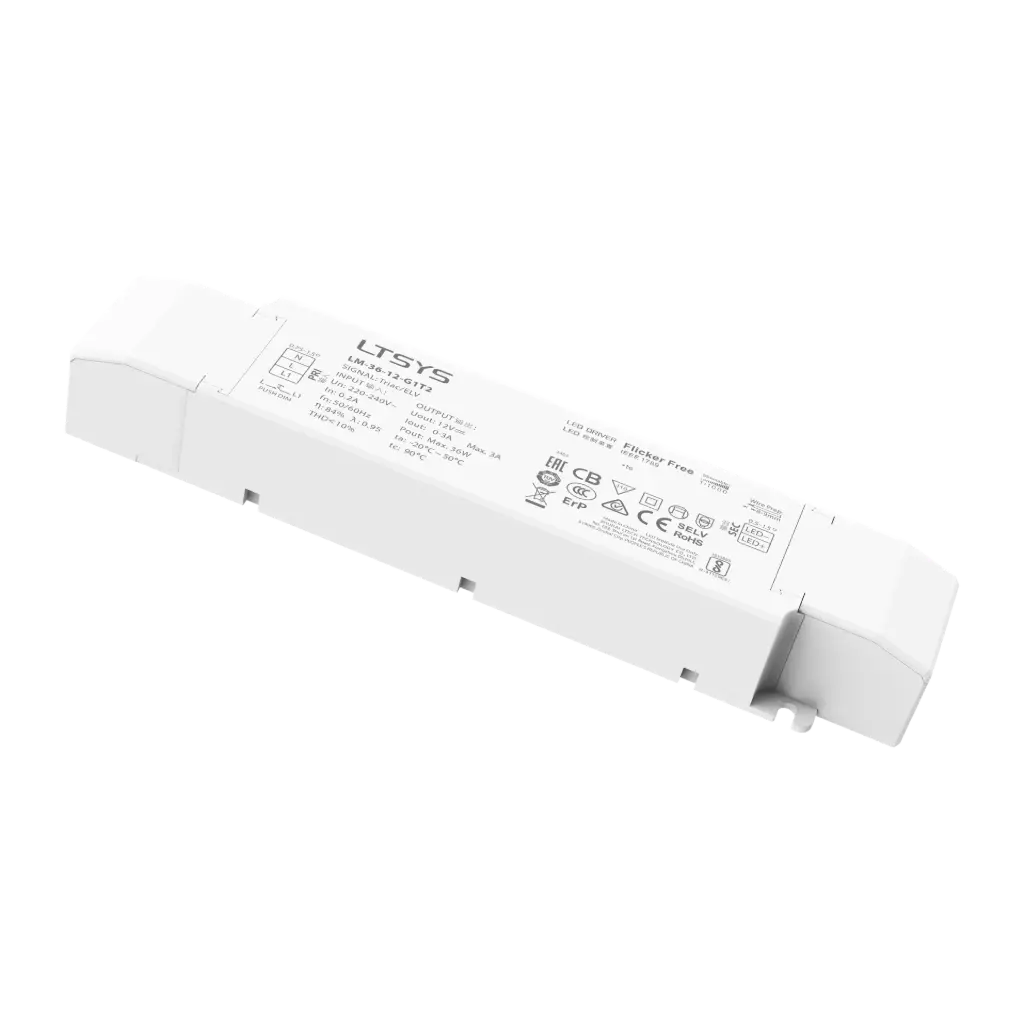

LTECH LTSYS Driver CV TRIAC 1CH 12V 36W - LM-36-12-G1T2

LED Intelligent Driver (Constant Voltage) Small, lightweight V0 flame-retardant housing from SAMSUNG/COVESTRO with removable end cap for adjustable length. Soft-on and fade-in dimming enhances visual comfort. Dimming 0-100%, down to 0.1%, flicker-free with high-frequency exemption. Supports Leading edge (Triac), Trailing edge (ELV) phase-cut, and Push DIM. Secure signal isolation and intelligent thermal management with overload, over-temp, short-circuit, and overvoltage protection. Suitable for indoor I/II/III light applications. 50,000 h lifetime. 5-year warranty (Rubycon capacitor).

• Input Voltage: 220-240V AC

• Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.

• Output Voltage: 12V DC

• Output Current: Max. 3A

• Output Power: Max. 36W

• Working Temperature: ta: -20~50°C tc: 90°C

• Dimensions: L210 × W43 × H30 (mm)

• Weight (G.W): 210g
