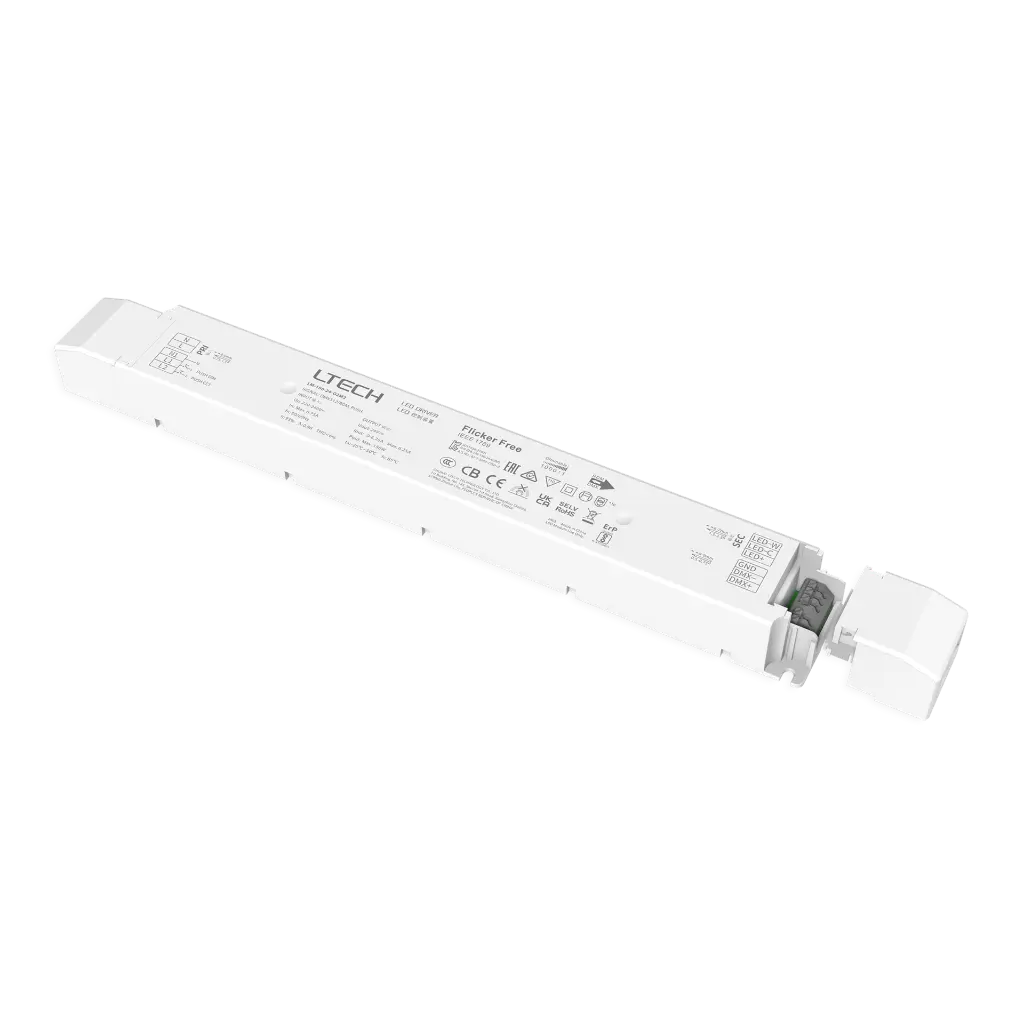

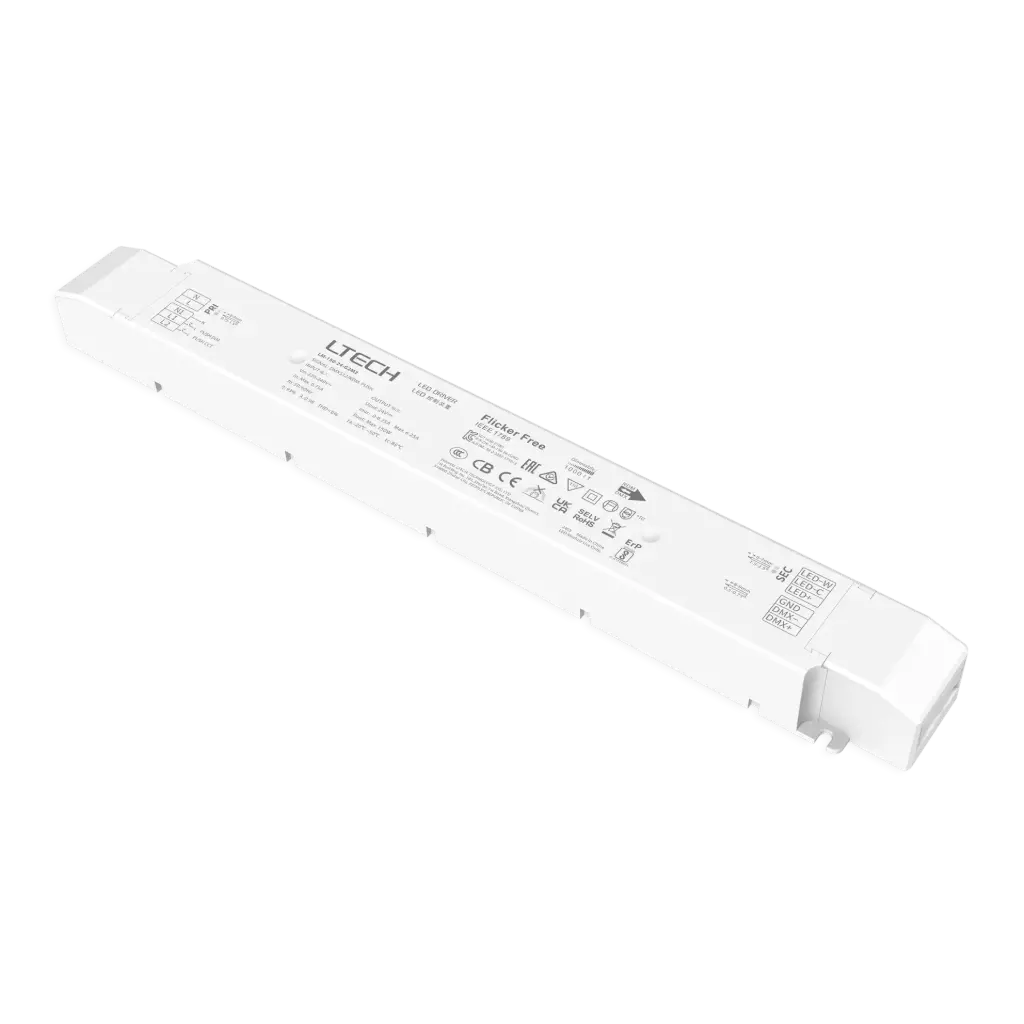

LED Intelligent CT Driver (Constant Voltage)
Compact and lightweight with V0 flame-retardant PC housing from SAMSUNG/COVESTRO. Features two independent SELV constant voltage channels with constant power design to maintain brightness during color temperature adjustment (2700-6500K). Supports RDM protocol, soft-on and fade-in dimming, and a 0-100% range down to 0.1%. High efficiency at 93% (PF>0.98, THD<6%) with standby power <0.5W. Includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Fully protected housing with dismountable end cover, suitable for indoor Class I/II/III lighting. Up to 50,000-hour lifetime with 5-year warranty (Rubycon capacitor).
- Input Voltage: 220-240Vac / 200-280Vdc
- Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT
- Output Voltage: 24Vdc
- Output Current: Max. 6.25A
- Output Power: Max. 150W
- Working Temperature: ta: -20~50°C tc: 85°C
- Dimensions: L352 × W43 × H30 (mm)
- Weight (G.W): 430g
