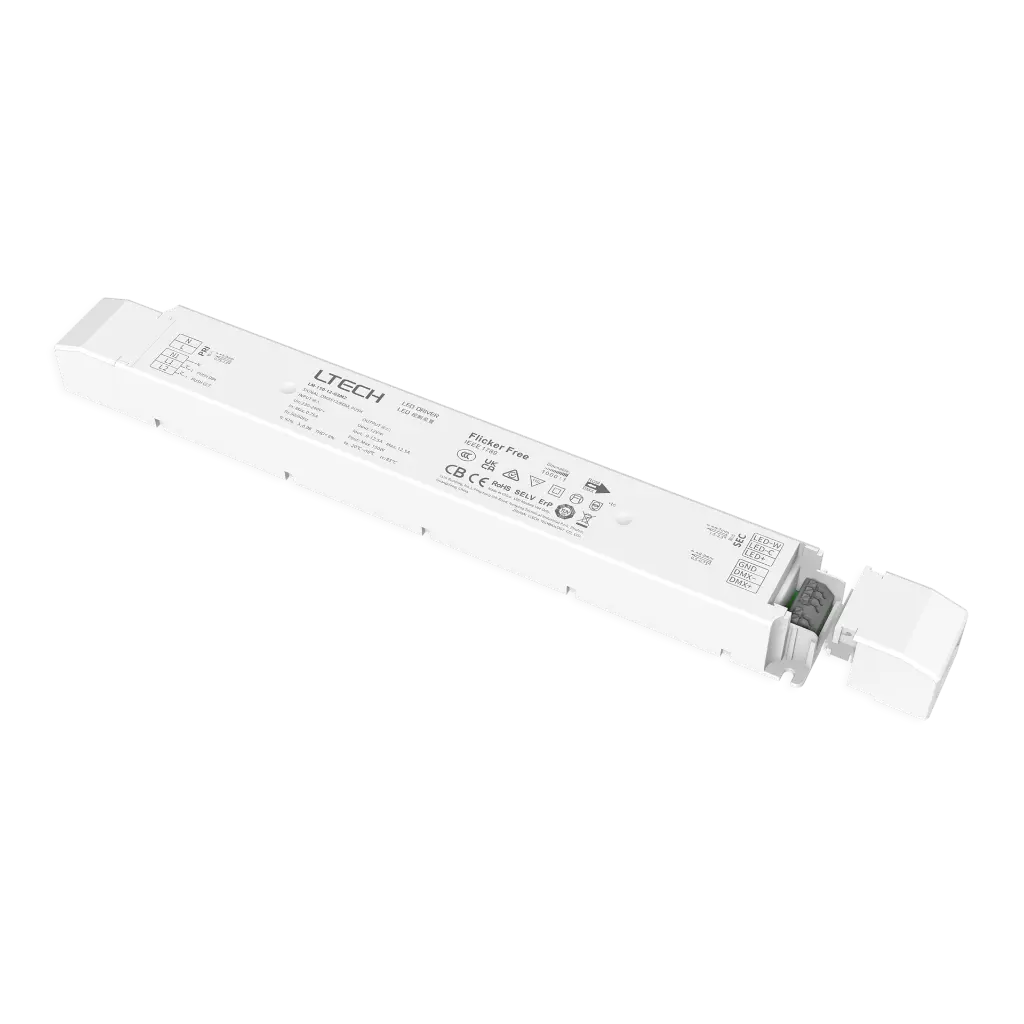

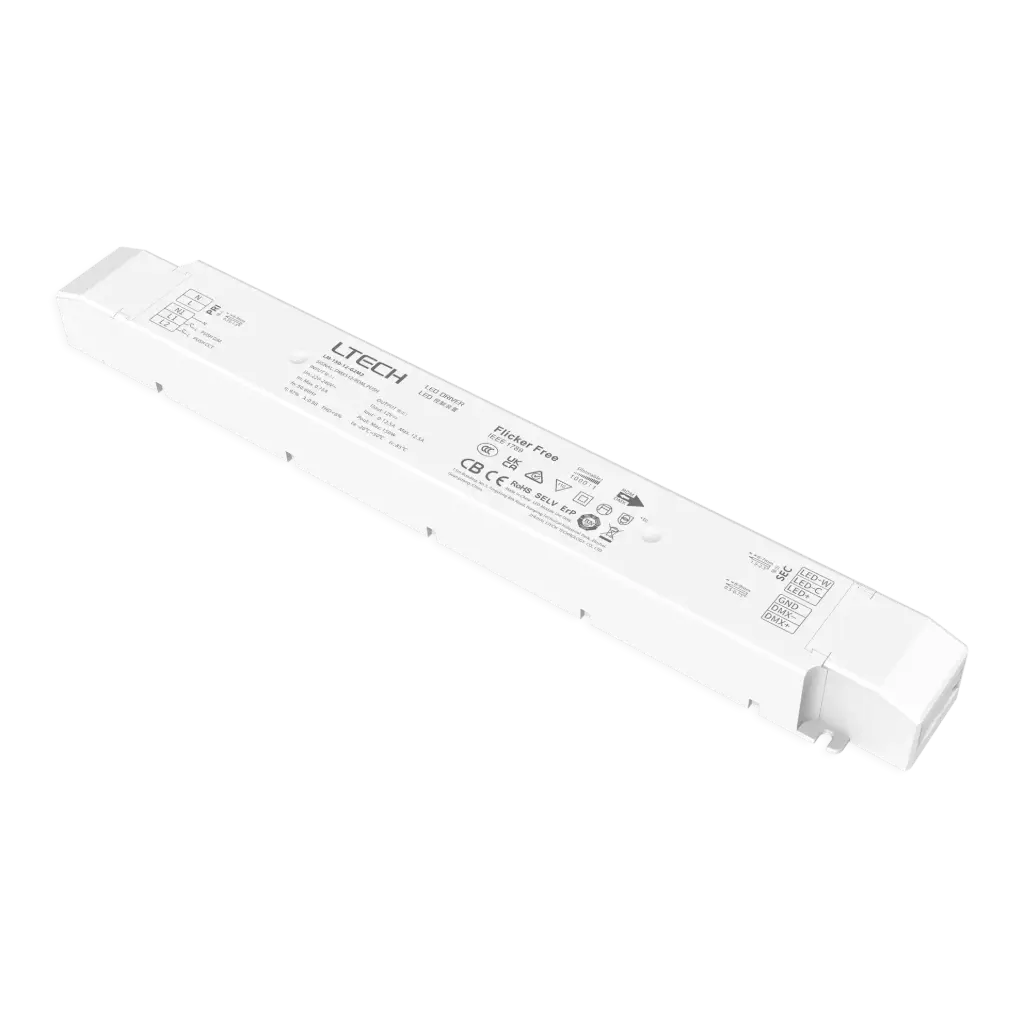

LTECH LTSYS Driver CV DMX 2CH 12V 150W - LM-150-12-G2M2

LED Intelligent CT Driver (Constant Voltage) Compact and lightweight with V0 flame-retardant PC housing from SAMSUNG/COVESTRO. Features two independent SELV constant voltage channels with constant power design to maintain brightness during color temperature adjustment (2700-6500K). Supports RDM protocol, soft-on/fade-in dimming, and a 0-100% range down to 0.1%. High efficiency at 93% (PF>0.98, THD<6%) with standby power <0.5W. Includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Fully protected housing with dismountable end cover, suitable for indoor Class I/II/III lighting. Up to 50,000-hour lifetime with 5-year warranty

• Input Voltage: 220-240V AC 200-280V DC

• Dimming Interface: 0-10V(1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT

• Output Voltage: 12V DC

• Output Current: Max. 12.5A

• Output Power: Max. 150W

• Output Power Range: 0-150W

• Working Temperature: ta: -20~50°C tc: 85°C

• Dimensions: L352 × W43 × H30 (mm)

• Weight (G.W): 430g
