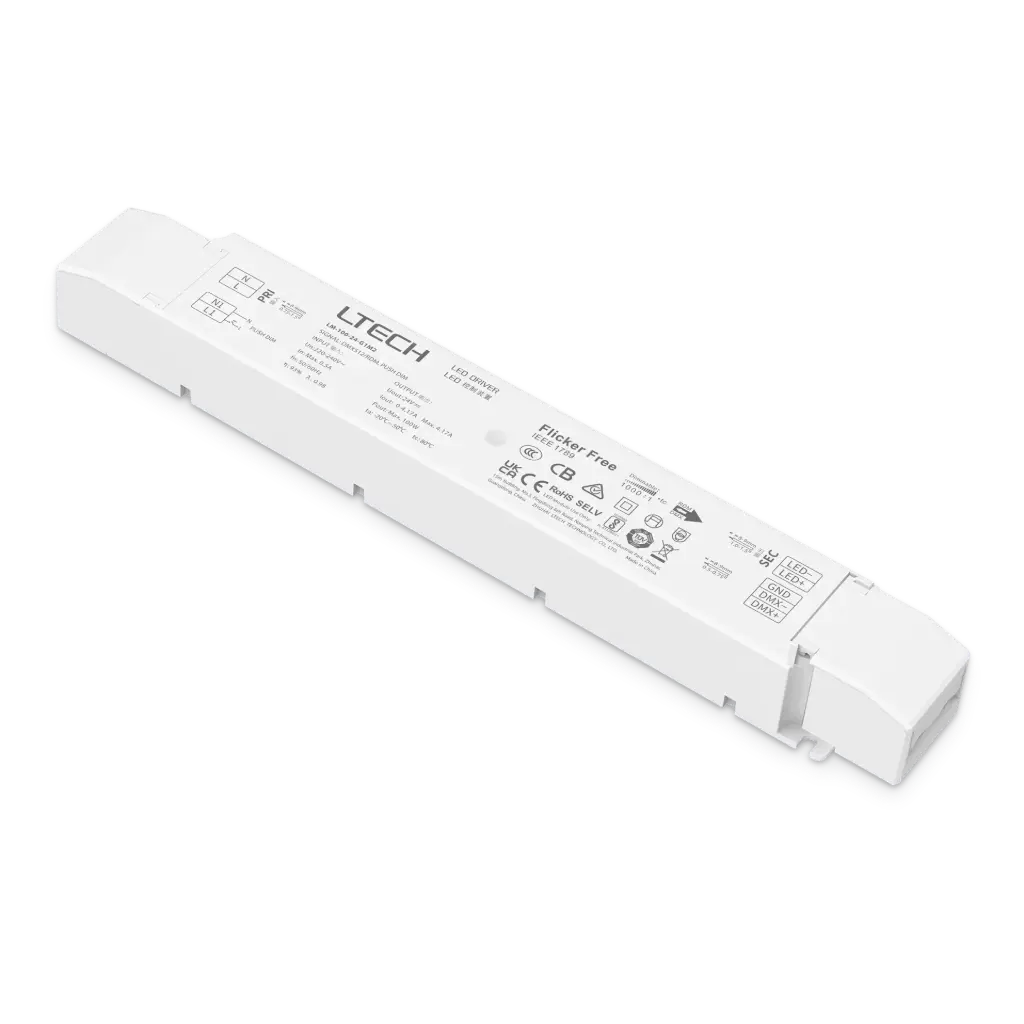

LTECH LTSYS Driver CV DMX 1CH 24V 100W - LM-100-24-G1M2

This LED intelligent driver (constant voltage) features DMX512/RDM and Push DIM interfaces, supporting RDM remote device management. It offers 0.1–100% dimming with soft-on and fade-in for comfortable lighting, 0–100% flicker-free output, and high-frequency exemption. Compliant with EU energy efficiency ERP standards, its standby power consumption is under 0.5 W. Built-in thermal management and automatic protection against overheat, overvoltage, overload, and short circuit extend its lifespan. The fully protected plastic housing includes a dismountable end cover, making it suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamp applications.

• Input Voltage: 220-240V

• AC Output Voltage: 24 DC

• Output Current: Max. 4.17A

• Output Power: Max. 100W

• Output Power Range: 0~100W

• Dimming Interface: DMX/RDM, Push DIM

• Working Temperature: ta:-20~50°C tc:80°C

• Dimensions: L293 x W43 x H30 (mm)

• Weight (G.W): 300g
