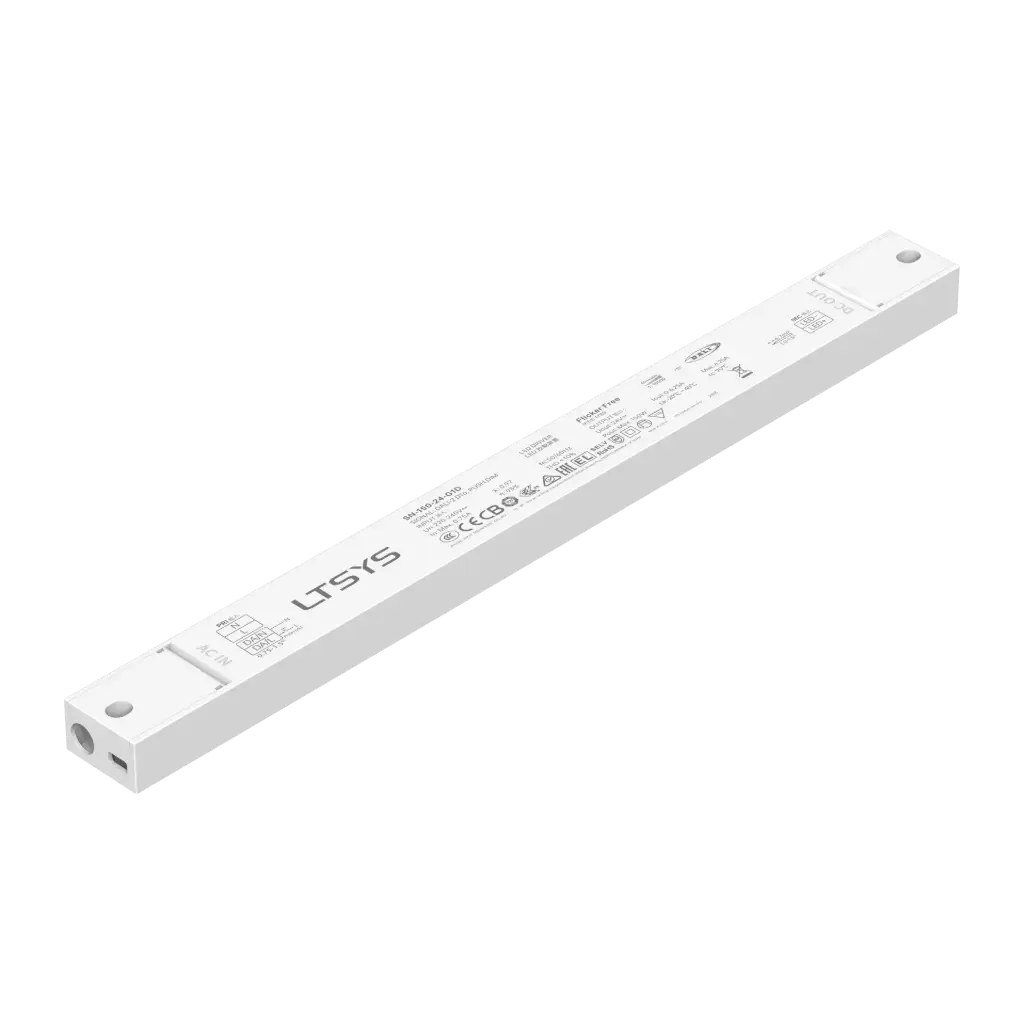

Constant voltage LED driver with an ultra-thin, integrated clamshell design made from V0 flame-retardant PC. Automatically recognizes 0-10V and 1-10V input signals, with ultra-low 0-10V port consumption (<0.05 mA). Offers 0-100% flicker-free dimming down to 0.01% and high-performance operation (93% efficiency, PF > 0.97, THD < 10%). Complies with the EU ErP Directive, with no-load and standby power <0.5 W. Features intelligent thermal management and protection against overheat, overload, and short circuits with automatic recovery. Suitable for Class I/II/III indoor fixtures, including LED strips and magnetic track lights. 5-year warranty.
• Input Voltage: 220-240V AC 220-240V DC (EMI needs to be evaluated after the luminaire is installed)
• Input Current: Max. 0.75A/230V AC
• Output Voltage: 24V DC
• Output Current: Max. 6.25A
• Output Power Range: 0-150W
• Dimming Interface: 0-10V (1-10V,10V PWM, RX)
• Working Temperature: ta: -20 ~ 45°C tc: 90°C
• Dimensions: L350 × W30 × H18 (mm)
• Weight (N.W.): 211g±10g
