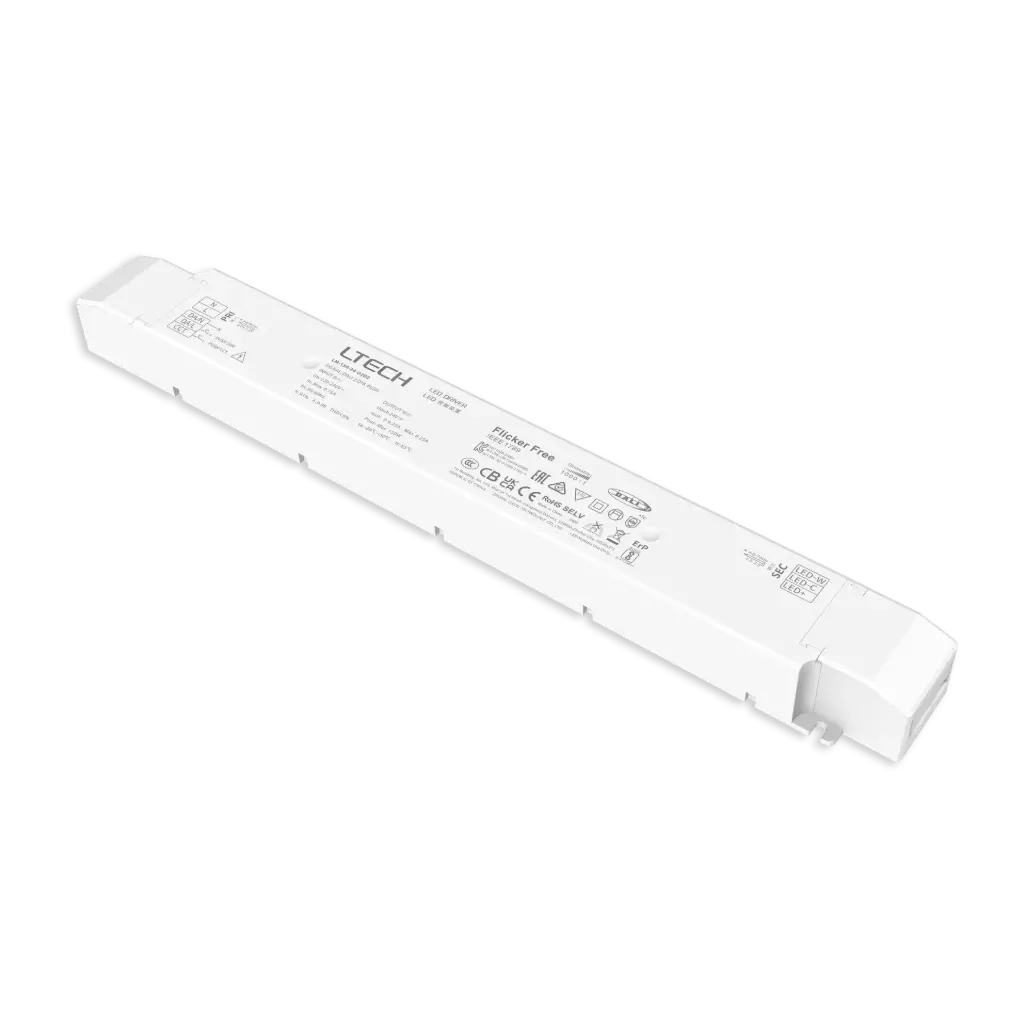

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 24V 150W NFC - LM-150-24-G2D2F

Intelligent Tunable White LED Driver (Constant Voltage) Compact and lightweight with flame-retardant PC housing from SAMSUNG/COVESTRO. Features 2 SELV output channels with constant power design to maintain brightness during color temperature adjustment (1000K-10000K, default 2700K-6500K). Supports smooth 0-100% dimming down to 0.1% with soft-on and fade-in function. High efficiency (93%, PF>0.98, THD<6%) and low standby power <0.5W. Includes protections against overheat, overload, overvoltage, and short circuit with automatic recovery. Suitable for indoor Class Ⅰ/Ⅱ/Ⅲ lighting, with up to 50,000-hour lifetime.

• Input Voltage: 220-240V AC 200-280V DC

• Dimming Interface: 0-10V (1-10V/10V PWM/RX) DIM/CCT, Push DIM/CCT

• Output Voltage: 24V DC

• Output Current: Max. 6.25A

• Output Power: Max. 150W

• Output Power Range: 0-150W

• Working Temperature: ta: -20~50°C tc: 85°C

• Dimensions: L352 × W43 × H30 (mm)

• Weight (G.W): 430g
