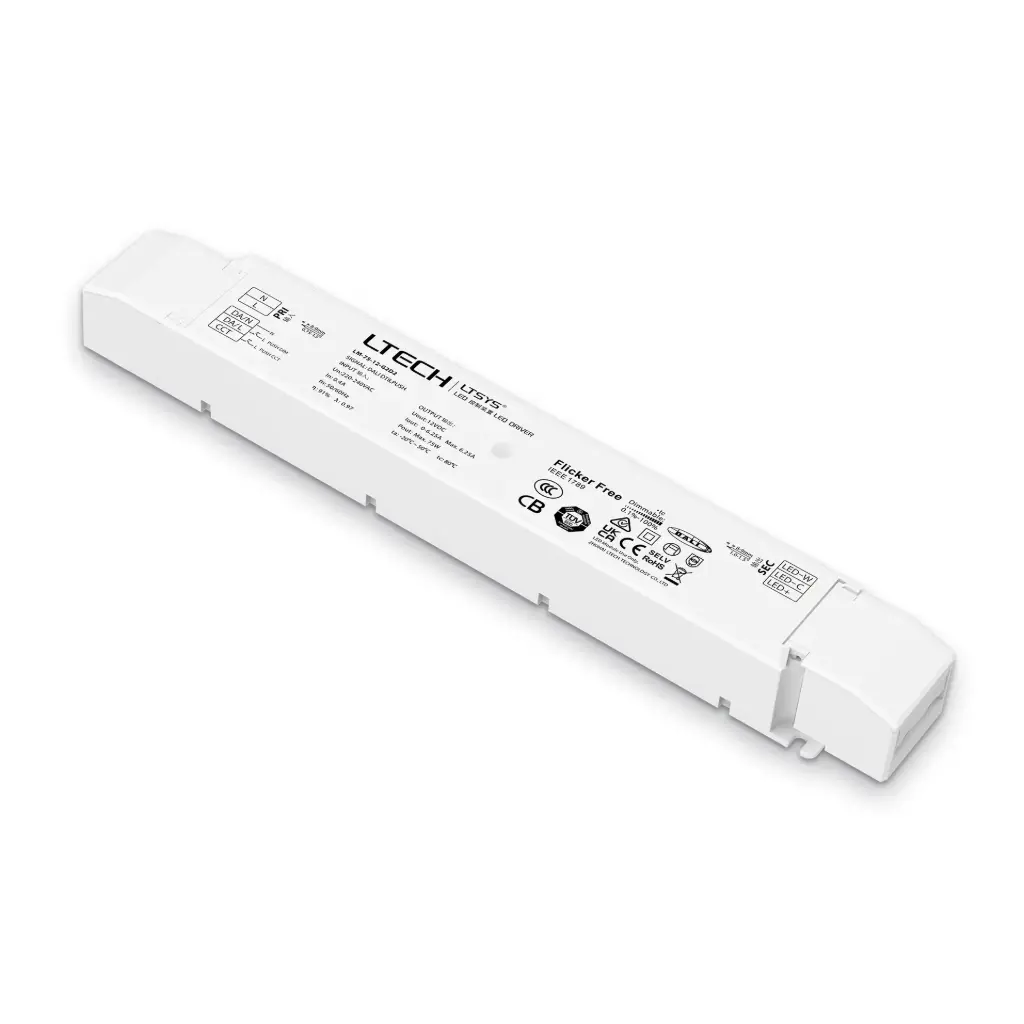

LTECH LTSYS Driver CV DALI-2 DT6/DT8 2CH 12V 75W - LM-75-12-G2D2

Intelligent Tunable White LED Driver (Constant Voltage) Compact and lightweight, with a V0 flame-retardant PC housing from SAMSUNG/COVESTRO. The clamshell, screwless design with a removable end cap allows adjustable housing length. Constant power design maintains brightness across adjustable color temperatures (1000-10000K, default 2700-6500K). Dimming range: 0-100%, down to 0.1%. Features 2 SELV output channels with common anode, secure signal isolation, and protections against overheat, overvoltage, overload, and short circuits with automatic recovery. Suitable for Class I/II/III indoor fixtures. Lifetime up to 50,000 hours with a 5-year warranty (Rubycon capacitor).

• Input Voltage: 220-240V AC

• Output Voltage: 12V DC

• Output Current: Max. 6.25A

• Output Power: Max. 75W

• Dimming Interface: DALI-2 DT6/DT8, Push DIM/CCT

• Working Temperature: ta:-20~50°C tc:80°C

• Dimensions: L293 x W43 x H30 (mm)

• Weight (G.W): 300g
