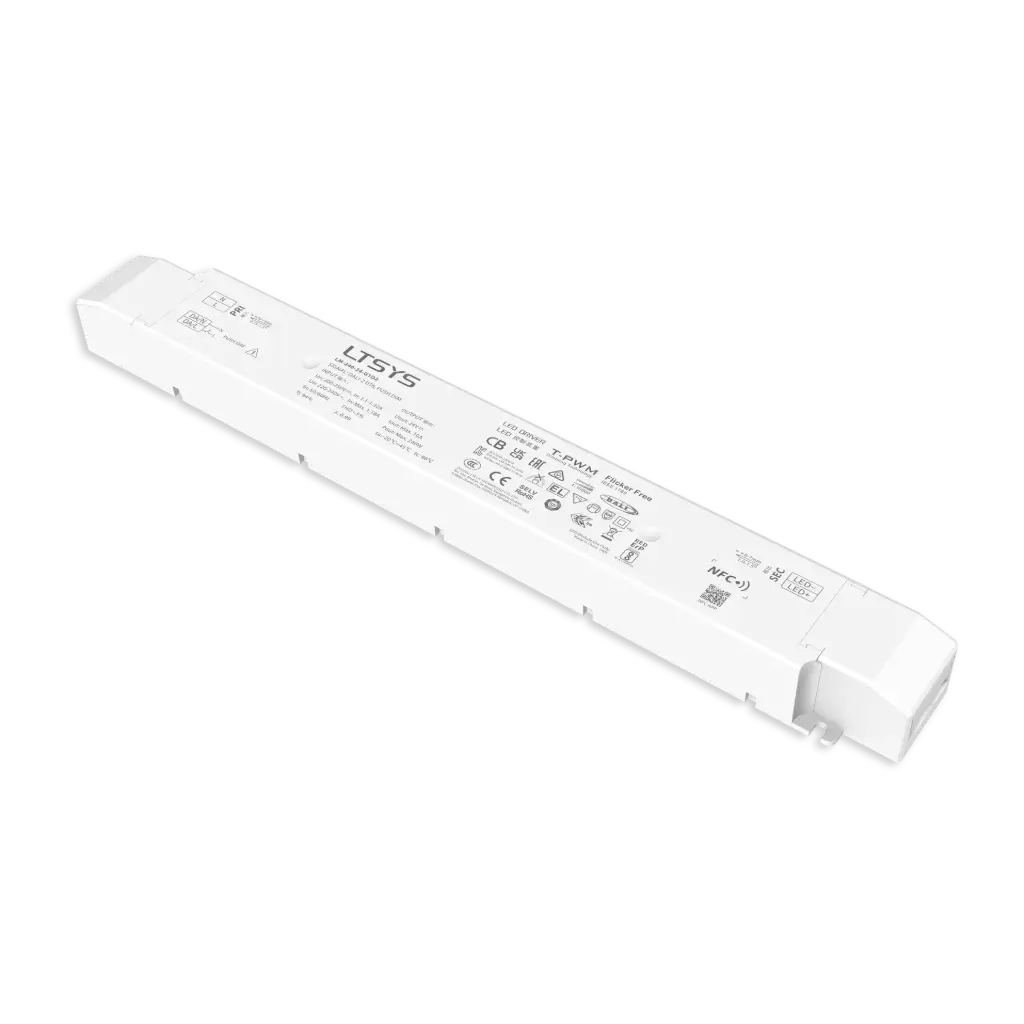

LTECH LTSYS Driver CV DALI-2 1CH 24V 200W - LM-240-24-G1D2

The housing is made from V0 flame-retardant PC materials from SAMSUNG/COVESTRO. Its clamshell, screwless design with a removable end cap allows adjustable length for easy installation. Change DALI addresses, PWM frequency, and other parameters via the app, and set DALI groups and scenes using the advanced template. Soft-on and fade-in dimming ensures flicker-free operation with high-frequency exemption. T-PWM™ technology enables ultra-deep dimming down to 0.01%. Complies with the EU ErP directive (standby <0.5 W) and includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Lifetime up to 100,000 hours.

• Input Voltage: 220-240V AC 200-250V DC

• Dimming Interface: DALI-2 DT6, PUSH DIM

• Output Voltage: 24V DC

• Output Current: Max. 10A

• Output Power: Max. 240W

• Working Temperature: ta: -20~45°C tc: 86°C

• Dimensions: L380 × W49.5 × H30 (mm)

• Weight (G.W): 555g
