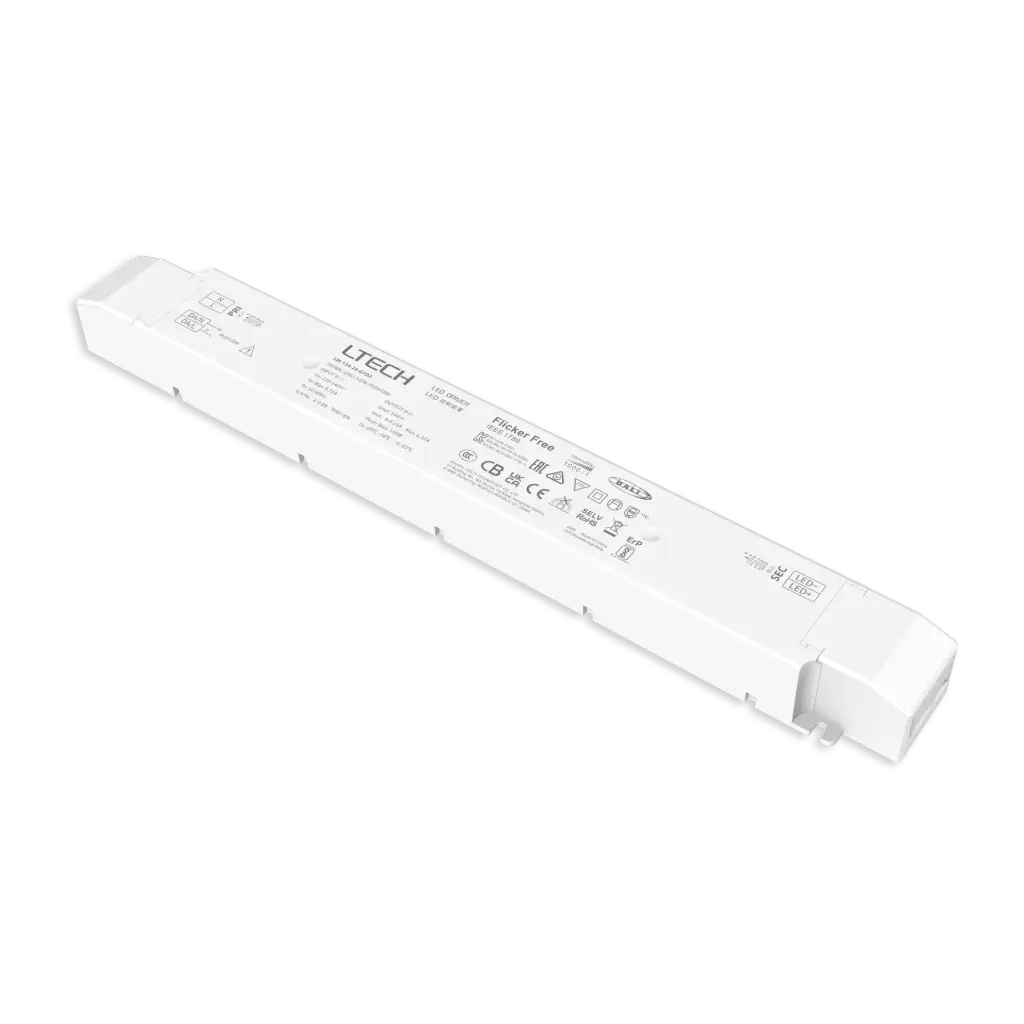

LTECH LTSYS Driver CV DALI-2 1CH 24V 150W - LM-150-24-G1D2

LED Intelligent Driver (Constant Voltage) Compact and lightweight with V0 flame-retardant housing from SAMSUNG/COVESTRO. Clamshell design with screwless strain-relief and adjustable end cap. Soft-on and fade-in dimming from 0-100% (from 0.1%). High efficiency (93%), PF>0.98, THD<6%, compliant with EU ErP (<0.5W standby). Innovative thermal management with protection against overheat, overvoltage, overload, and short circuit. Fully protected housing, DALI standard IEC62386-101/102/207. Suitable for indoor Class I/II/III fixtures. 50,000-hour life, 5-year warranty.

• Input Voltage: 220-240V AC 200-280V DC

• Dimming Interface: DALI (IEC62386), Push DIM

• Output Voltage: 24V DC

• Output Current: Max. 6.25A

• Output Power: Max. 150W

• Output Power Range: 0-150W

• Working Temperature: ta: -20~50°C tc: 85°C

• Dimensions: L352 × W43 × H30 (mm)

• Weight (G.W): 430g
