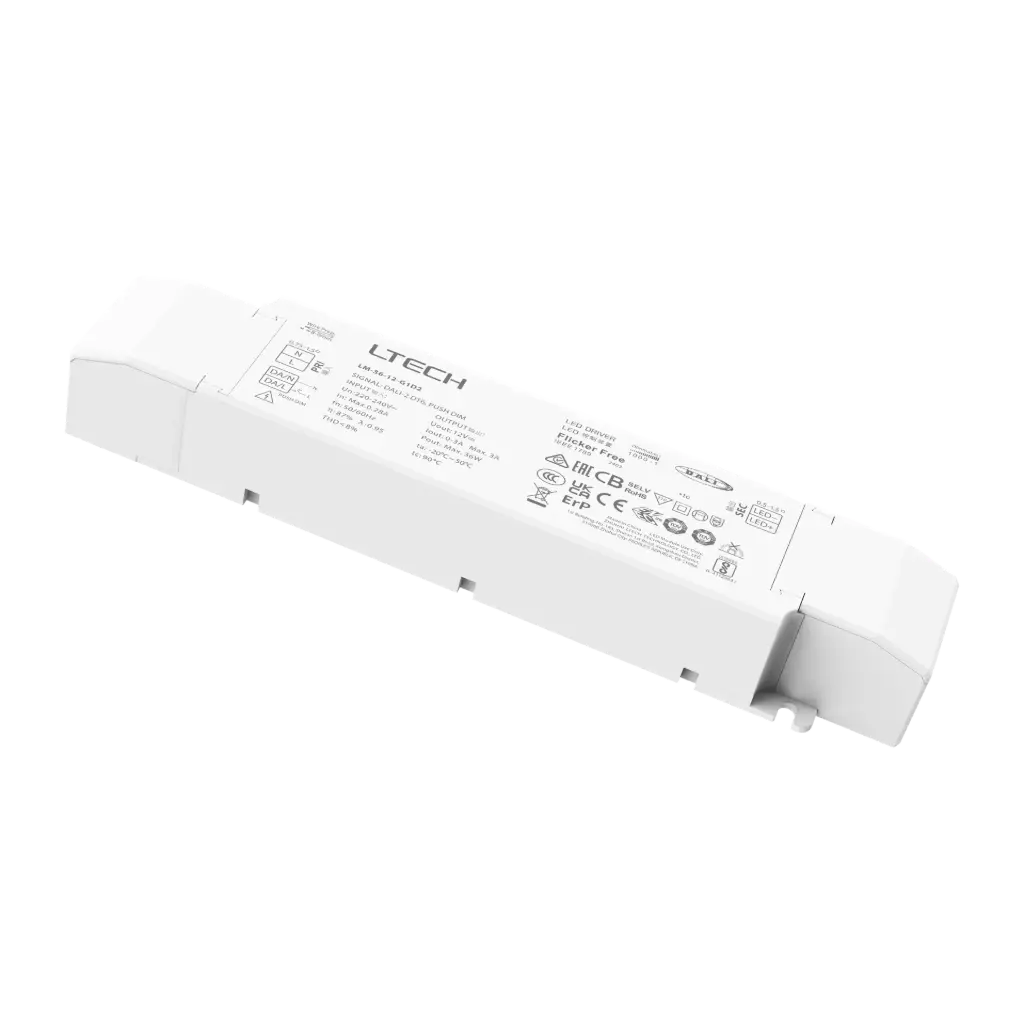

LTECH LTSYS Driver CV DALI-2 1CH 12V 36W - LM-36-12-G1D2

LED Intelligent Driver (Constant Voltage) Small, lightweight V0 flame-retardant housing from SAMSUNG/COVESTRO. Removable end cap allows adjustable length. DALI-2 and Push DIM interfaces, 0–100% dimming down to 0.1%, flicker-free with high-frequency exemption. Efficiency 88%, PF>0.95, THD<8%, standby <0.5 W. Thermal management with overheat, overvoltage, overload, and short-circuit protection. Complies with DALI bus standard IEC62386-101,102,207. Suitable for indoor I/II/III lamps. 50,000 h lifetime. 5-year warranty (Rubycon capacitor).

• Input Voltage: 220-240V AC 200-280V DC

• Dimming Interface: DALI-2, Push DIM

• Output Voltage: 12V DC

• Output Current: Max. 3A

• Output Power: Max. 36W

• Working Temperature: ta: -20~50°C tc: 90°C

• Dimensions: L210 × W43 × H30 (mm)

• Weight (G.W): 210g
