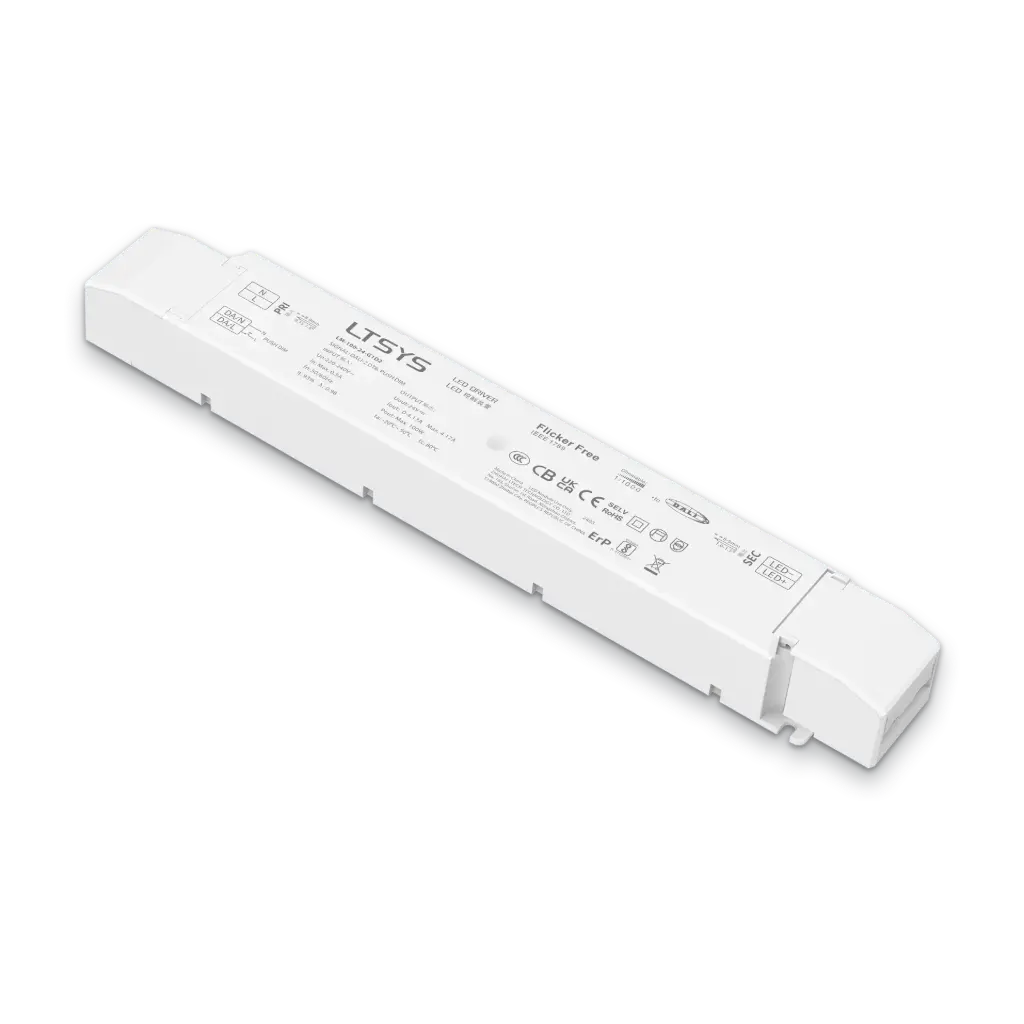

LTECH LTSYS Driver CV DALI-2 1CH 12V 100W - LM-100-24-G1D2

This LED driver supports DALI and Push DIM with 0.1-100% dimming and flicker-free output. Compatible with DALI 1 and DALI 2, it offers linear or logarithmic dimming curves. Built with full protective housing, it features automatic protection against overheat, overvoltage, overload, and short circuit. Standby power loss is under 0.5 W. Compliant with IEC62386 DALI standards and Safety Extra Low Voltage, it’s suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamp applications.

• Input Voltage: 220-240V

• AC Output Voltage: 24 DC

• Output Current: Max. 4.17A

• Output Power: Max. 100W

• Output Power Range: 0~100W

• Dimming Interface: DALI (IEC62386), Push DIM

• Working Temperature: ta:-20~50°C tc:80°C

• Dimensions: L293 x W43 x H30 (mm)

• Weight (G.W): 300g
