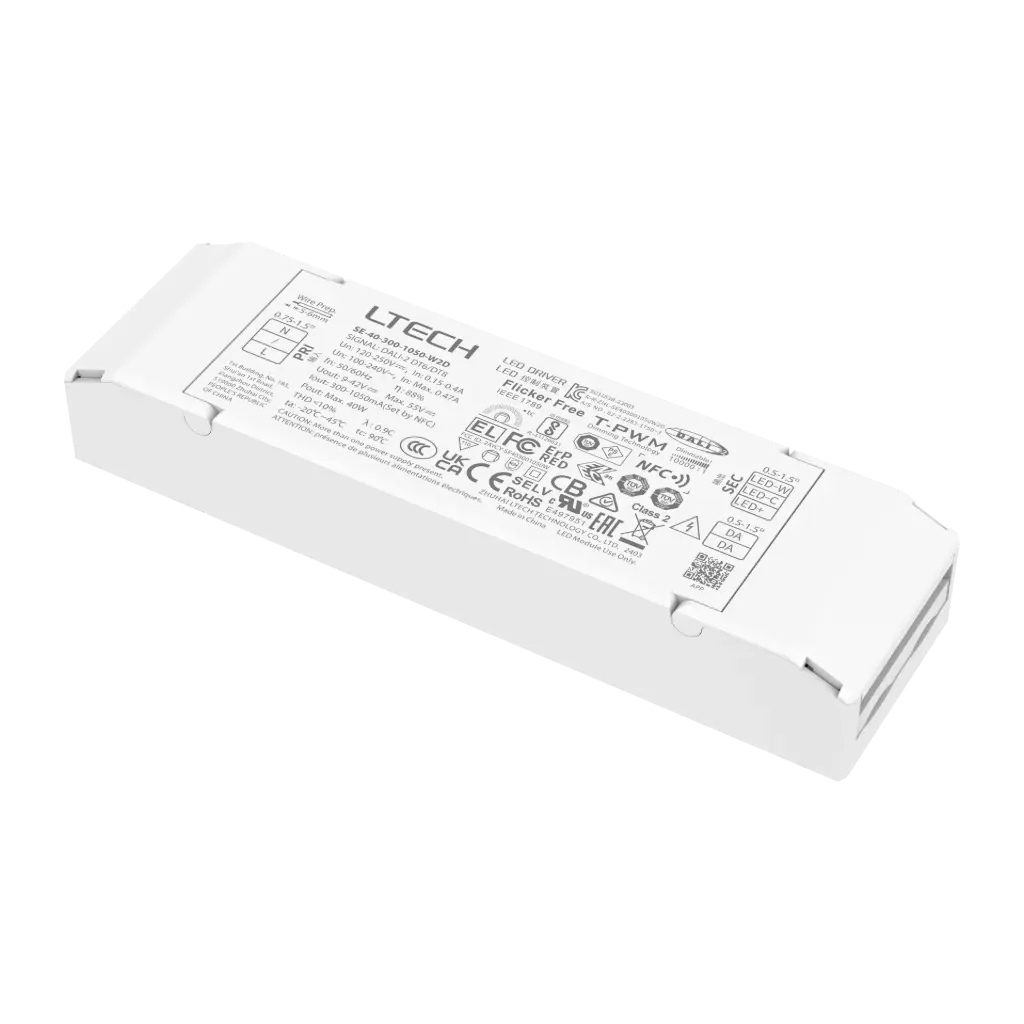

Intelligent Tunable White LED Driver (Constant Current)
Compact LED driver with V0 flame-retardant housing and screwless end cap. Features adjustable output current in 1 mA steps, soft-on/fade-in dimming, and T-PWM™ super-deep flicker-free dimming down to 0.01%. Supports DALI groups and scenes, with parameters adjustable via app. Includes overheat, overvoltage, overload, and short-circuit protection, 0 V no-load output, EU ErP compliance (<0.5 W standby), suitable for Class Ⅰ/Ⅱ/Ⅲ fixtures, 100,000 h lifespan, and 5-year warranty
• Input Voltage: 120-250V DC 100-240V AC
• Output Voltage: 9-42V DC Max. 55V DC
• Output Current: 300-1050mA
• Output Power: 2.7W-40W
• Dimming Range: 0~100%, down to 0.01%
• Dimming Interface: DALI-2 T6/DT8
• Working Temperature: ta: -20~45°C tc: 90°C
• Dimensions: L142 x W40 x H23 (mm)
• Weight (N.W): 170g
