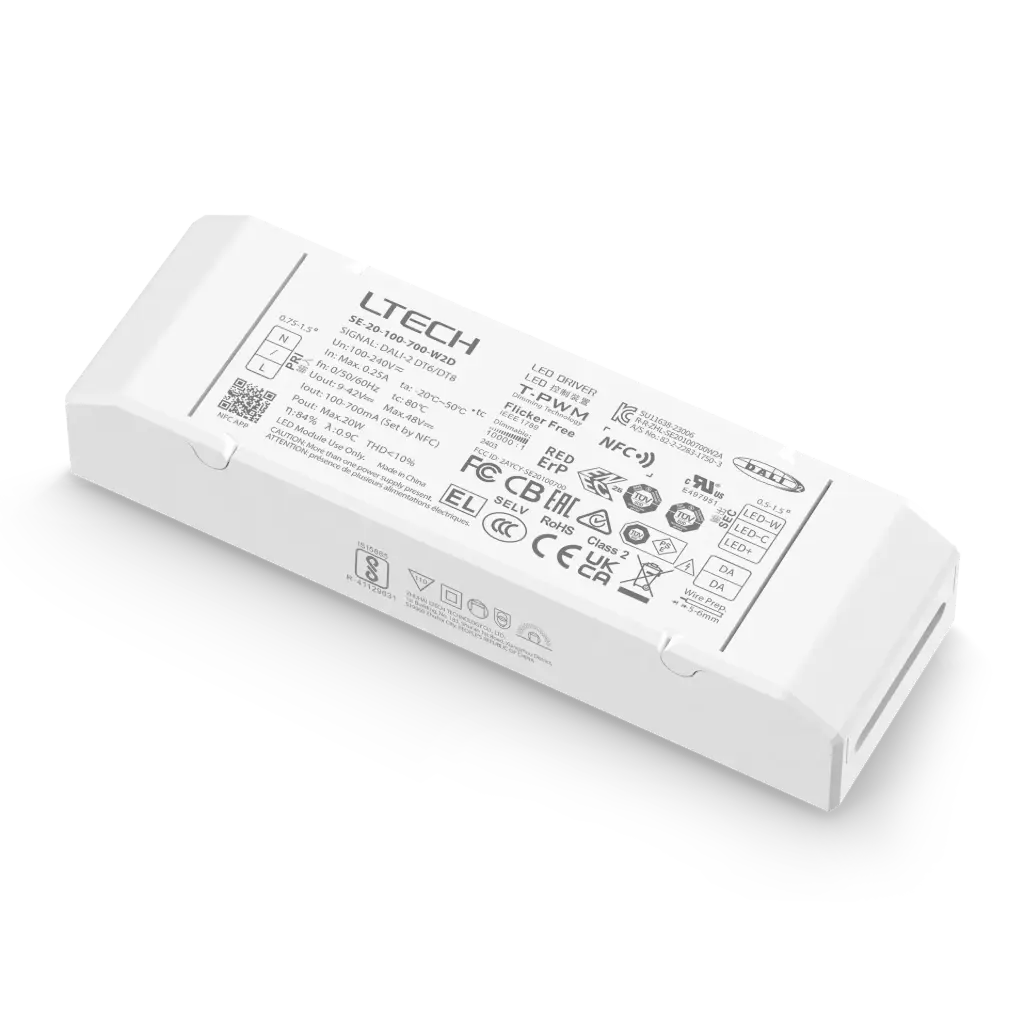

Intelligent Tunable White LED Driver (Constant Current)
Compact LED driver with V0 flame-retardant housing and screwless end cap. Adjustable output down to 1 mA via NFC or App. Soft-on, fade-in, and T-PWM™ dimming (0.0001%) with flicker-free performance. Full protection, ErP compliant, 100,000 h lifespan, 5-year Rubycon warranty.
• Input Voltage: 120-300V DC 100-240V AC
• Output Voltage: 9-42V DC Max. 48V DC
• Output Current: 100-700mA
• Output Range: 0.9W-20W
• Dimming Range: 0~100% down to 0.01%
• Dimming Interface: DALI-2 DT6/DT8
• Working Temperature: ta: -20~50°C tc: 90°C
• Dimensions: L127 x W40 x H23 (mm)
• Weight (N.W): 105g
