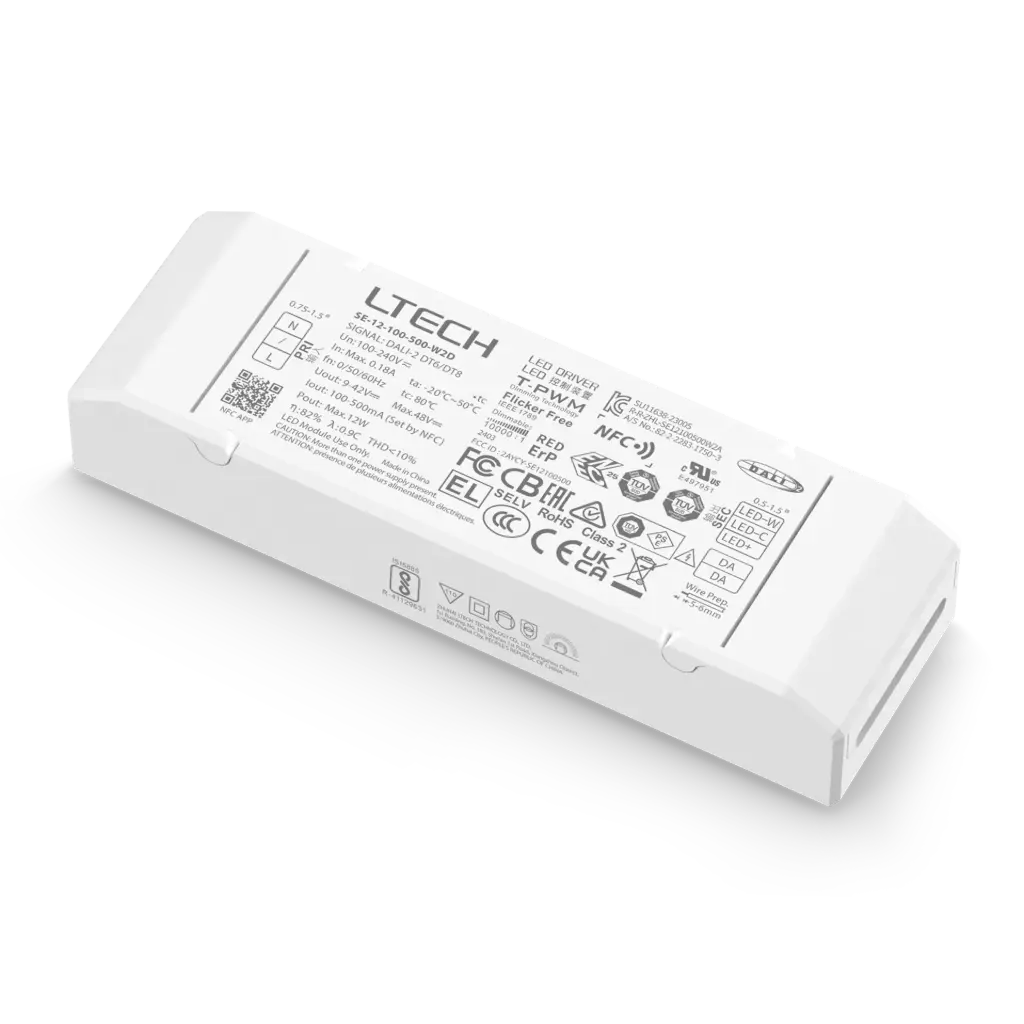

The Intelligent Tunable White LED Driver (Constant Current) features a compact, lightweight SAMSUNG/COVESTRO V0 flame-retardant PC housing with a screwless end cap. It supports fine output current adjustment, DALI control, soft-on/fade-in and T-PWM™ flicker-free dimming, with networked standby <0.5 W. Built-in protections include overheat, overload, overvoltage, and short-circuit, with automatic recovery. Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor fixtures, it offers up to 100,000 hours of service life and a 5-year Rubycon capacitor warranty.
• Parameters can be adjusted via NFC programmer or App
• Input Voltage: 120-300V DC 100-240V AC
• Output Voltage: 9-42V DC
• Output Current: 100-500mA
• Output Power Range: 0.9W-12W
• Dimming Interface: DALI-2 DT6/DT8
• Dimming Range: 0~100%, down to 0.01%
• Working Temperature: ta: -20°C~50°C tc: 90°C
• Dimensions: L110 x W35 x H20 (mm)
• Weight (N.W): 85g
