WiFi-104 is a smart WiFi lighting control system that allows you to manage various LED lighting products using our iOS or Android app. The system consists of the app and the WiFi controller, providing seamless control via WiFi.
It supports 4-in-1 operation - dimming (DIM), color temperature adjustment (CT), RGB, and RGBW along with control for up to 12 zones. The system can be connected directly to your device or through a router for more flexible network setups.

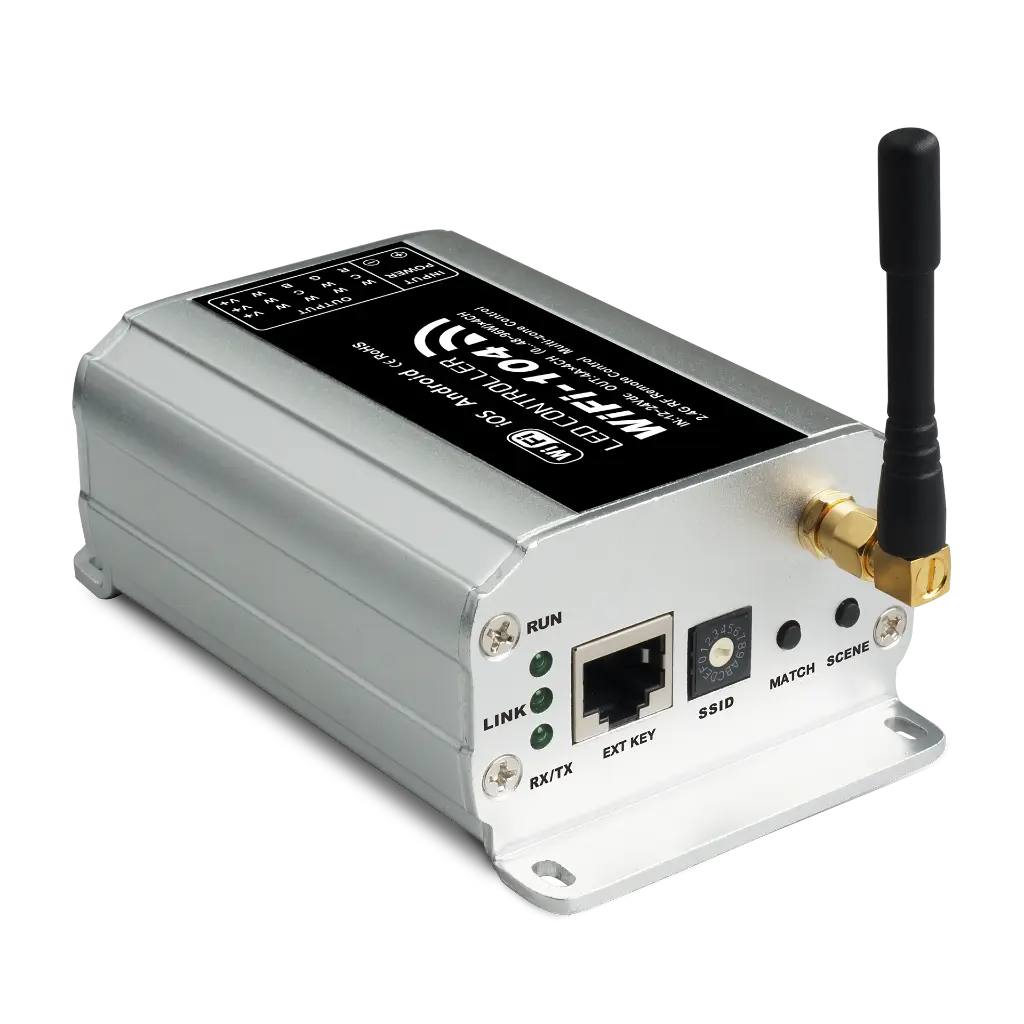

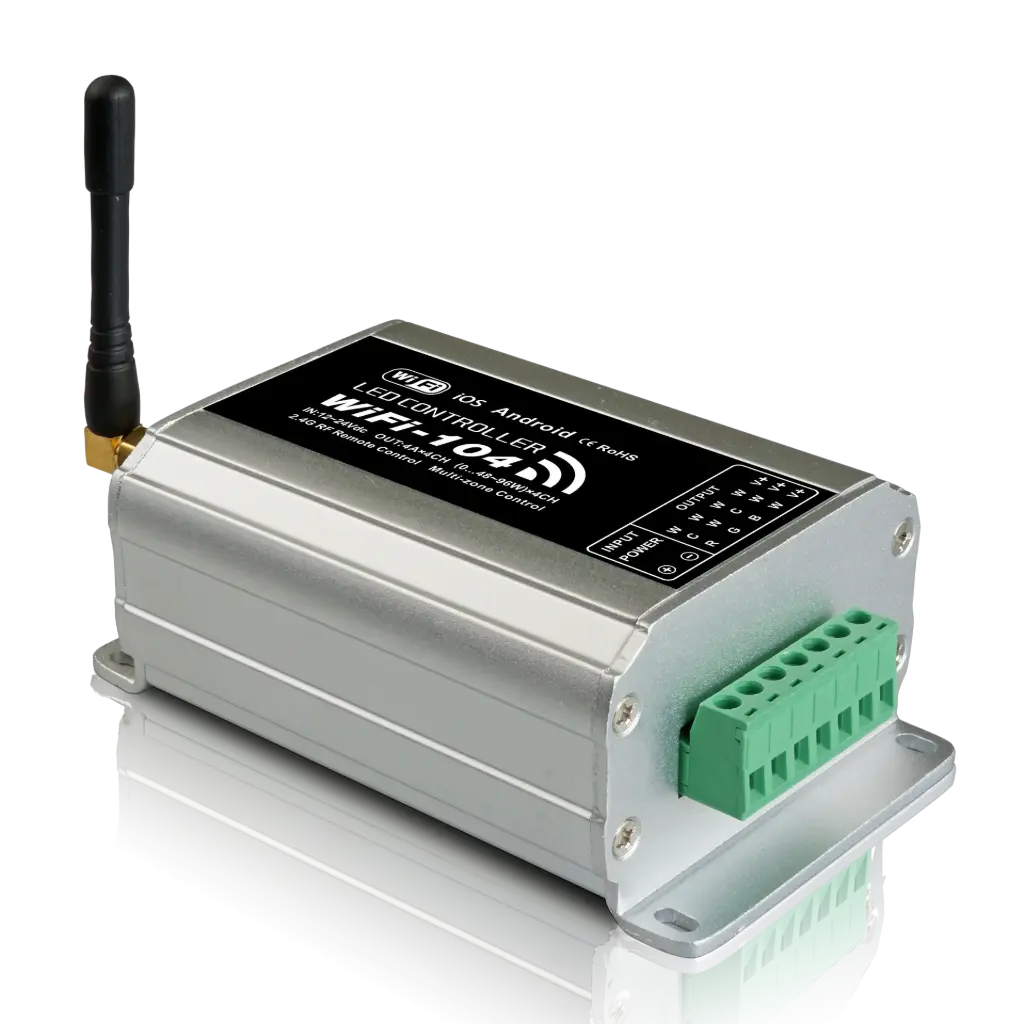

Controller Model: WiFi-104
• Input Voltage: 12V~24V DC
• Max Current Load: 4A x 4CH Max 16A
• Control Distance: 100m (Distance of cross-eyed)
• Working Temperature: -30℃～55℃
• Dimensions: L128 × W73 × H45 (mm)
• Weight (G.W.): 390g
Remote Model: M12
• Working Voltage: 3V DC (Button battery CR2032)
• Transmitting Frequency: 2.4GHz
• Dimensions:
L106 × W60 × H9 (mm)
• Weight (G.W): 42g
