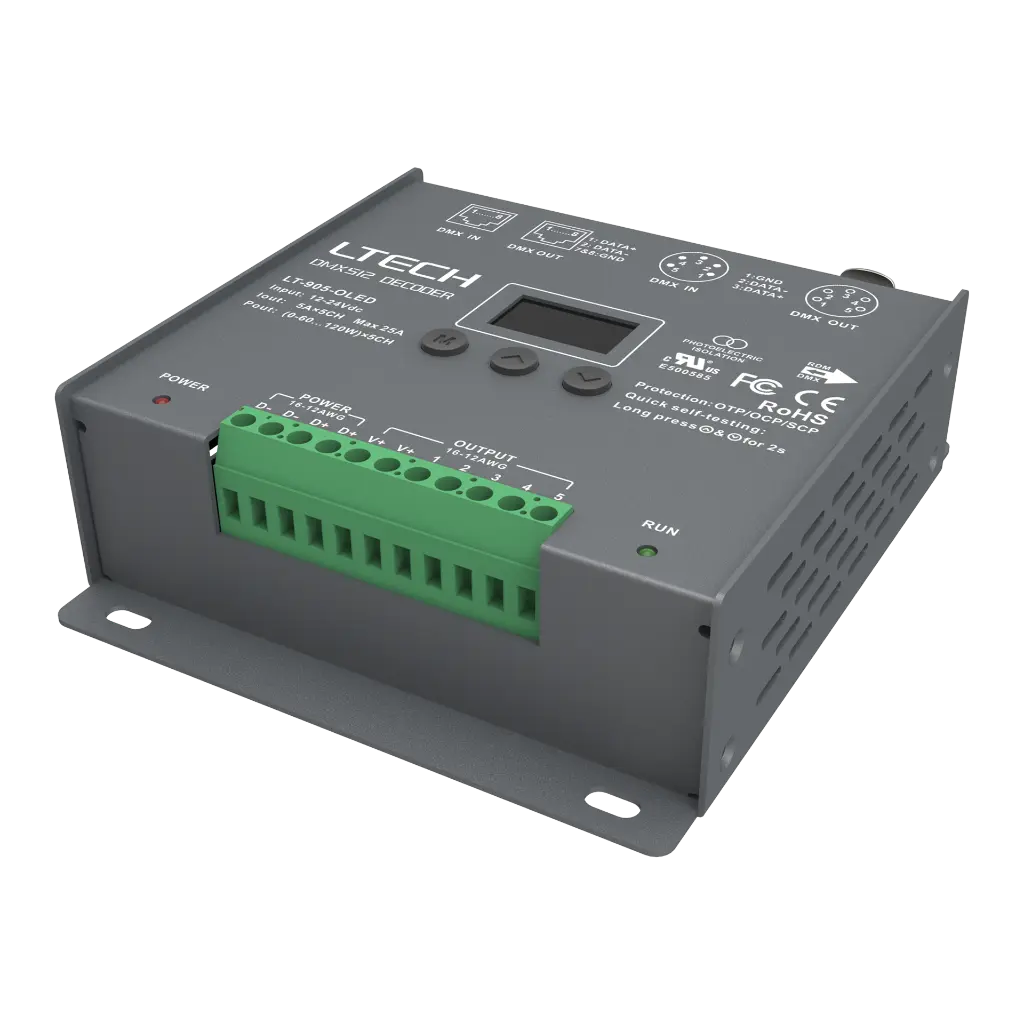

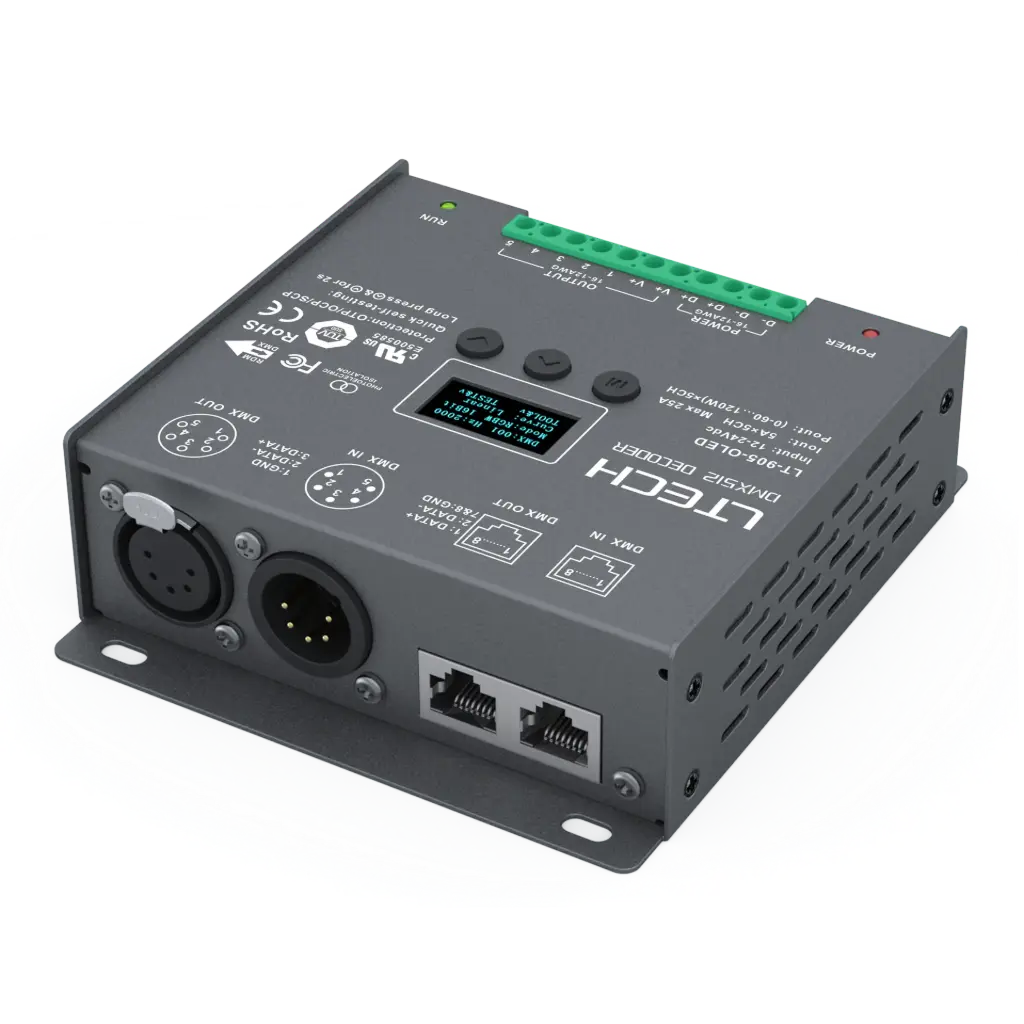

5-channel controller with up to 5A per channel (600W total). Features OLED display with touch buttons, 5 operating modes (DIM, CT, RGB, RGBW, RGBWY), and RDM remote management. Includes XLR/RJ45 DMX with photoelectric isolation, firmware upgrade, fault protections, power-on state management, and fast self-testing. Supports 8/16-bit gray levels and multiple dimming curves (standard, linear, LOG, or custom).
• Input Signal: DMX512/RDM
• Input Voltage: 12~24V DC
• Current Load: 5A × 5CH Max. 25A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L122 x W110 x H37 (mm)
• Weight: 550g
