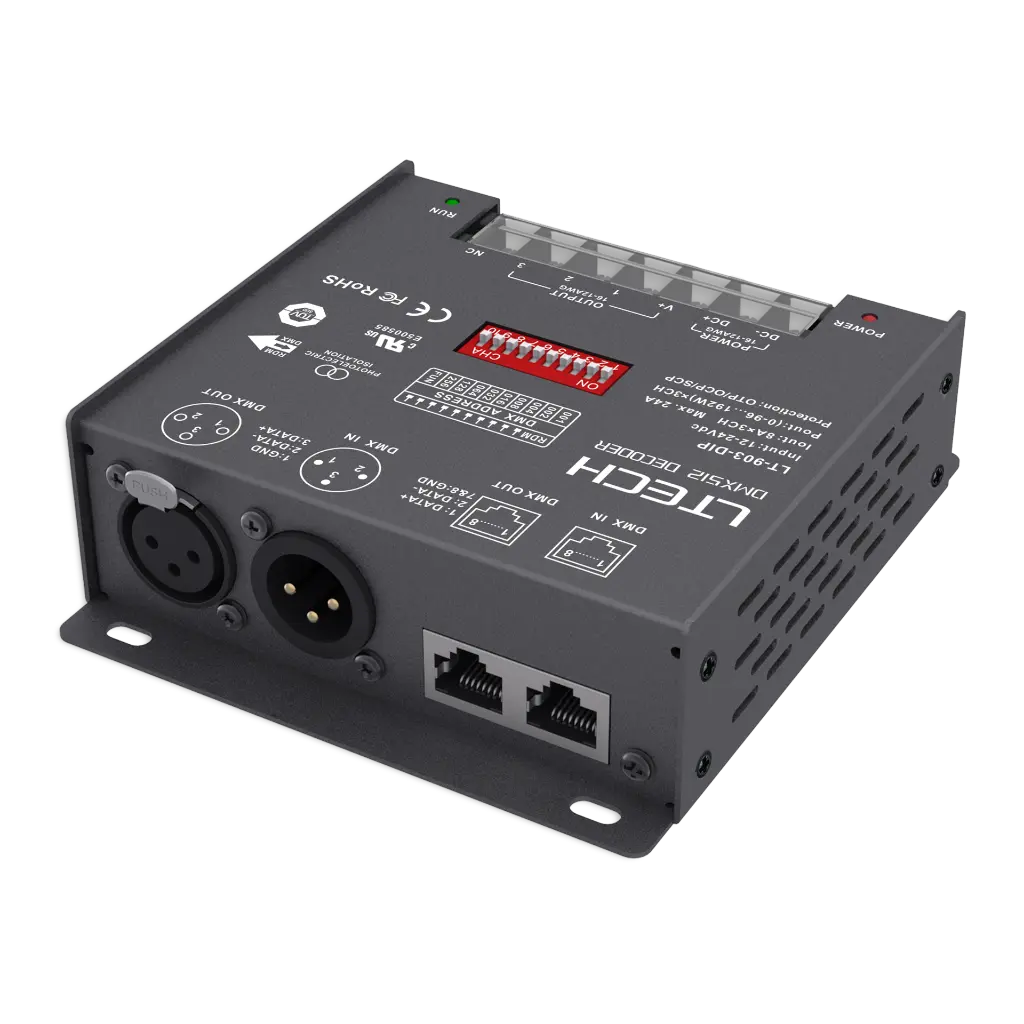

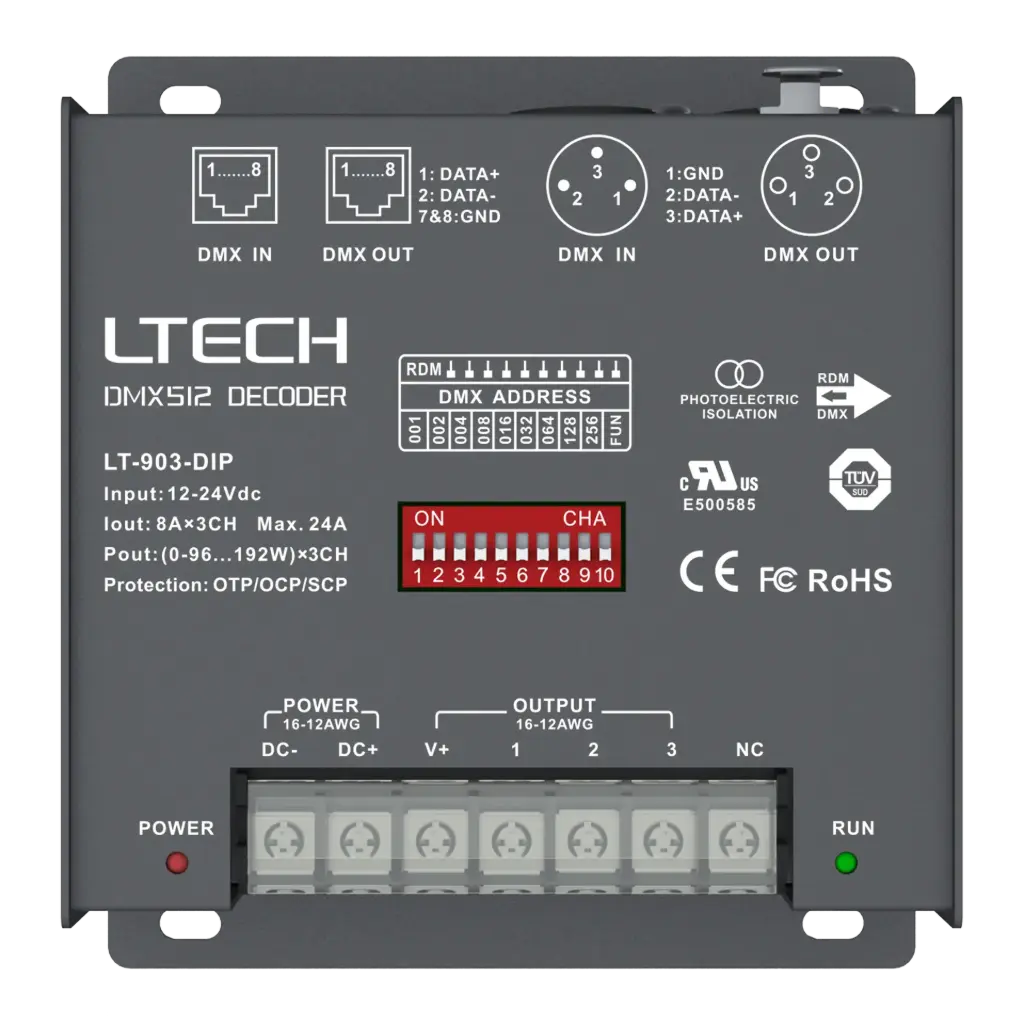

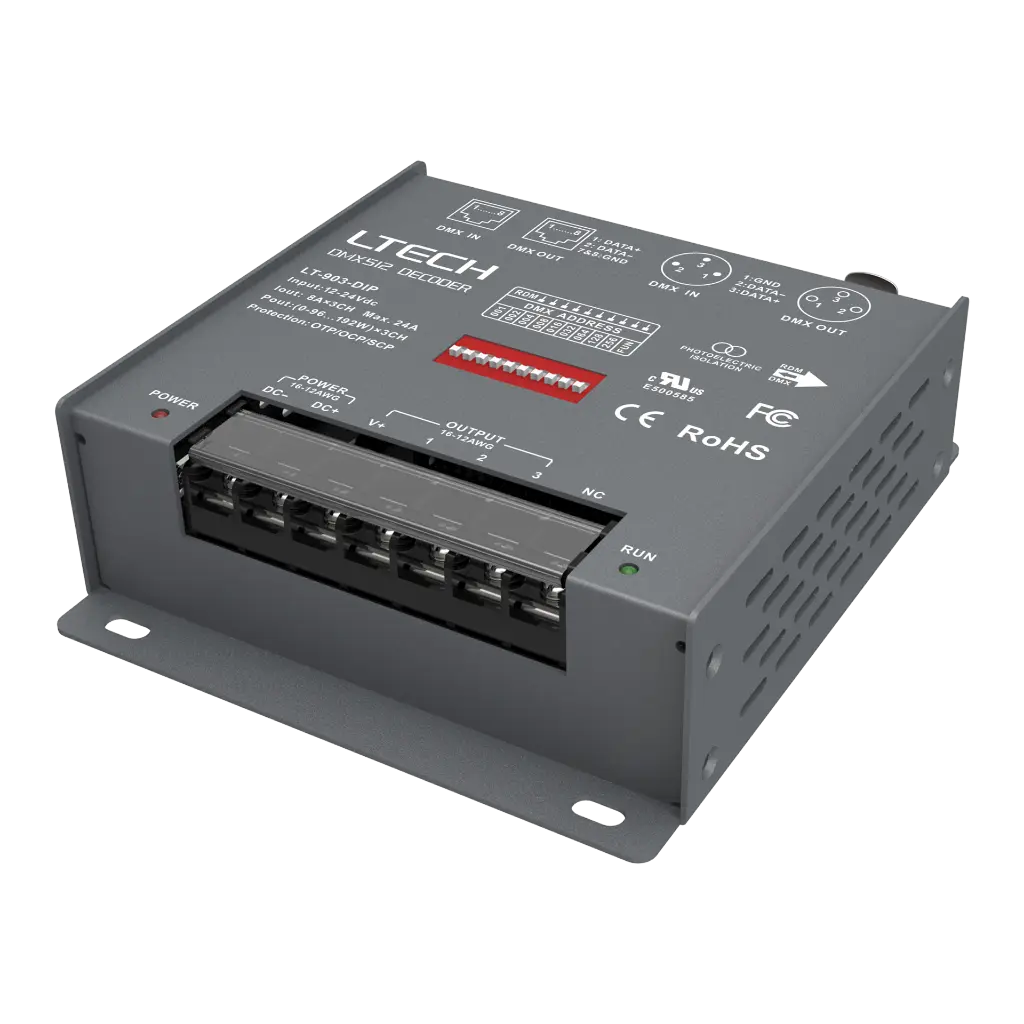

This 3-channel DMX/RDM decoder provides up to 8A per channel (576W total) and features 3-pin XLR and RJ45 DMX interfaces with photoelectric isolation for reliable signal transmission and reduced interference. It supports RDM remote management, enabling parameter browsing, DMX address setup, and equipment recognition via an RDM master console.
• Input Voltage: 12~24V DC
• Current Load: 8A x 3CH Max. 24A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L122 x W110 x H37 (mm)
• Weight: 550g
