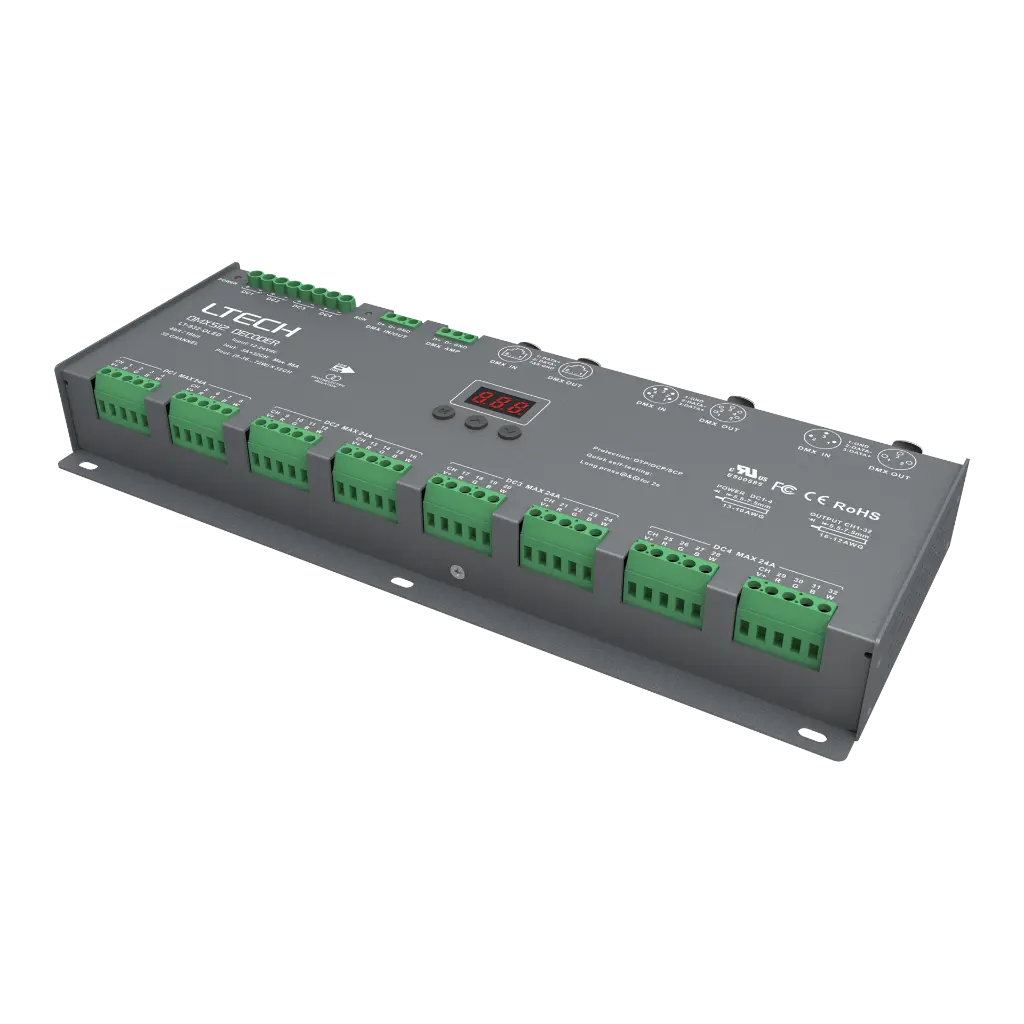

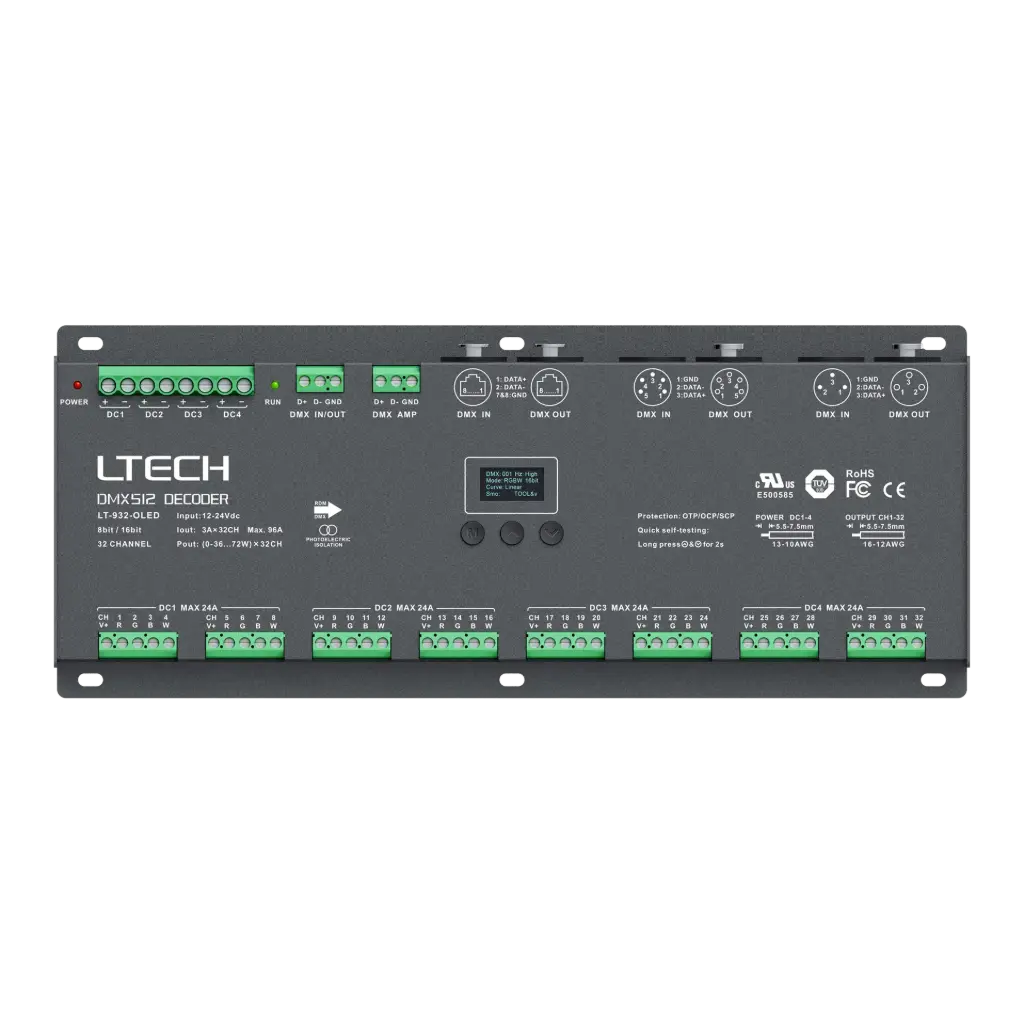

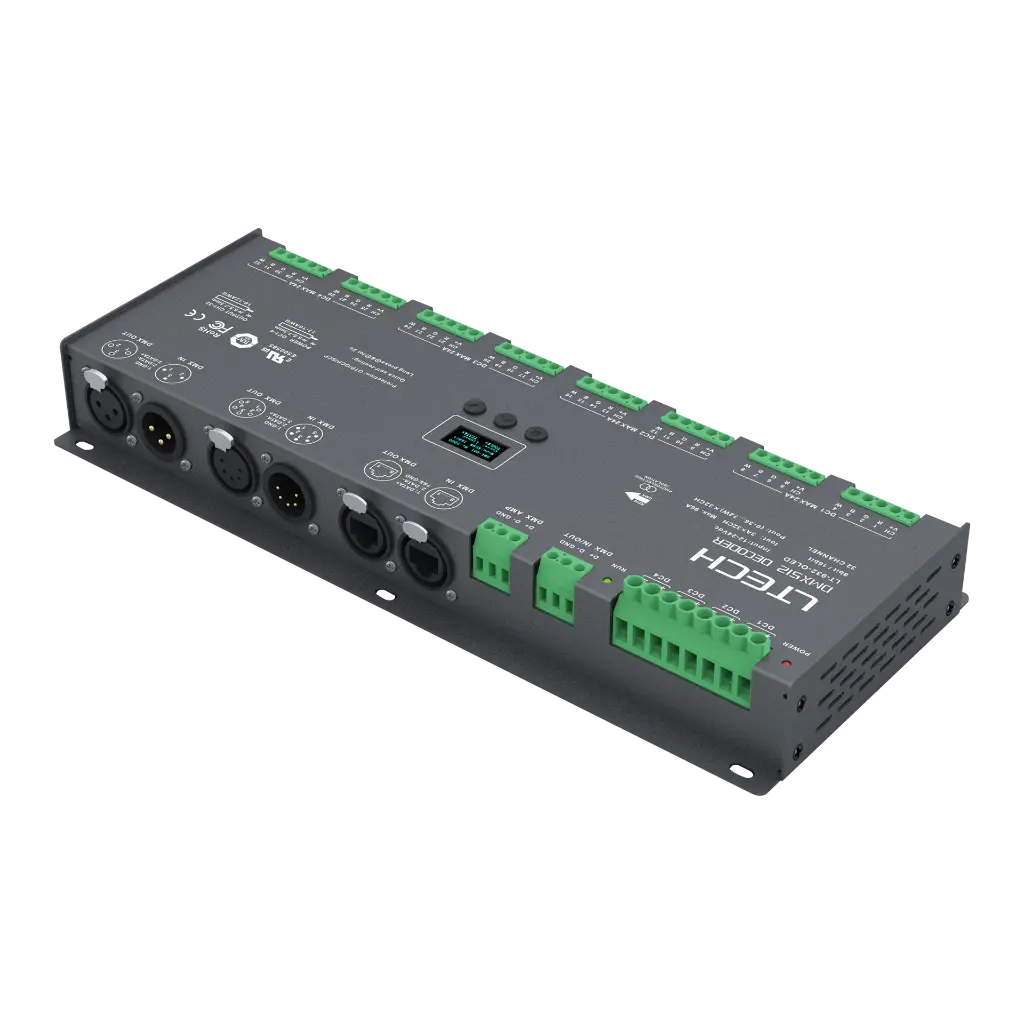

32-channel high-power controller with up to 3A per channel (2304W total). Features OLED screen with touch buttons, RDM remote management, and firmware upgrade support. Offers four control modes (DIM, CT, RGB, RGBW), 8/16-bit gray levels, and adjustable PWM frequency. Supports 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification. Includes power-on state management, fast self-testing, and full protection with fault warnings.
• Input signal: DMX512/RDM
• Input voltage: 12~24V DC
• Current load: 3A × 32CH Max. 96A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L300 x W122 x H39 (mm)
• Weight: 1180g
