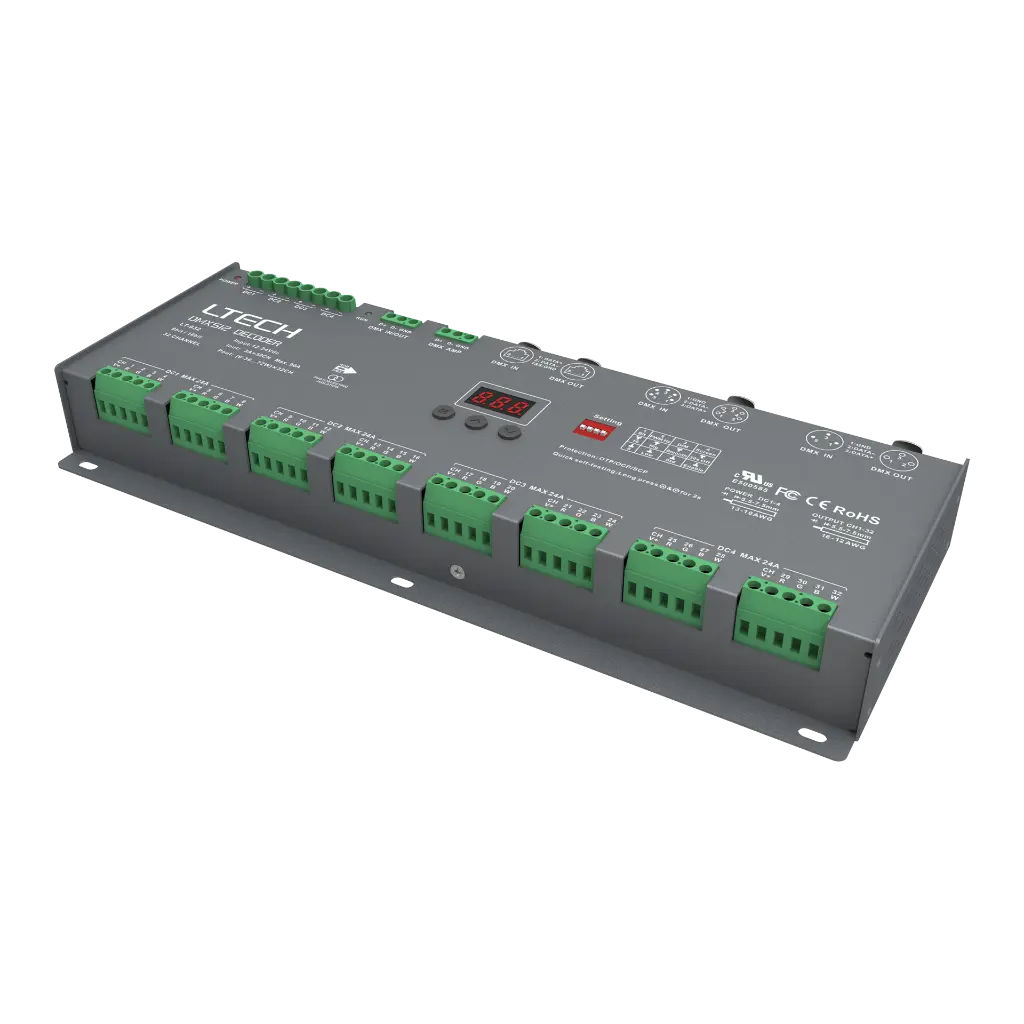

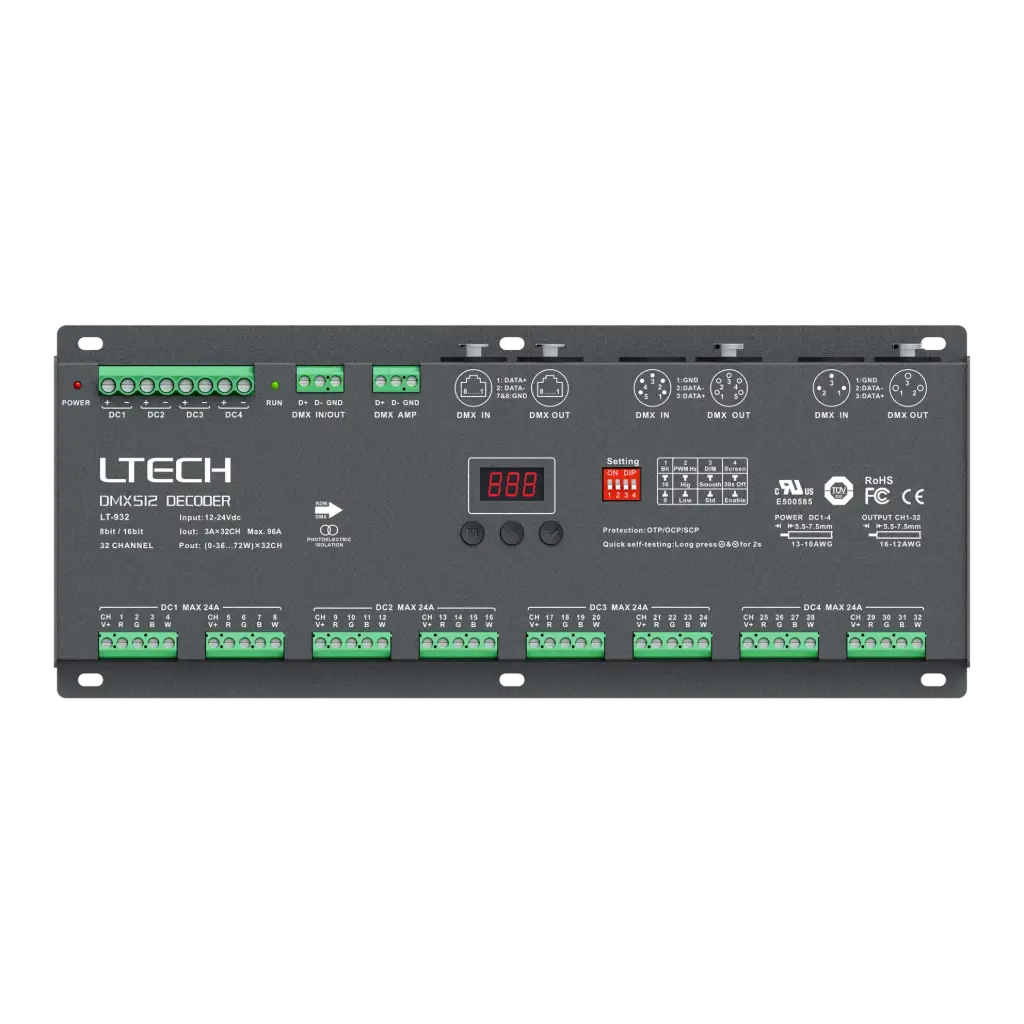

32-channel high-power controller with up to 2304W output. Features digital display with touch buttons, RDM remote management, and firmware upgrade support. Supports 3-pin XLR, 5-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification. Includes fast self-testing, adjustable PWM frequency, 8/16-bit gray levels, and full protection with fault warnings.
• Input signal: DMX512/RDM
• Input voltage: 12~24V DC
• Current load: 3A × 32CH Max. 96A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L300 x W122 x H39 (mm)
• Weight: 1180g
