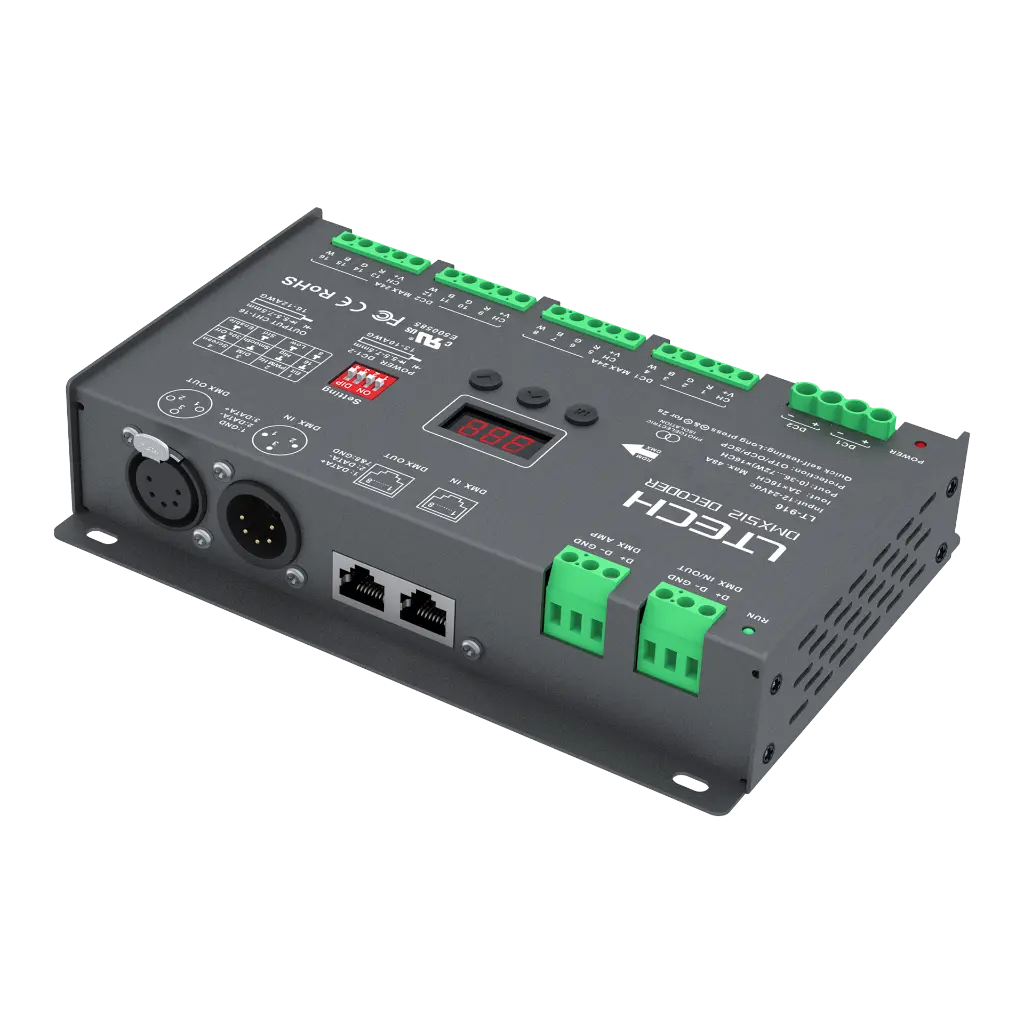

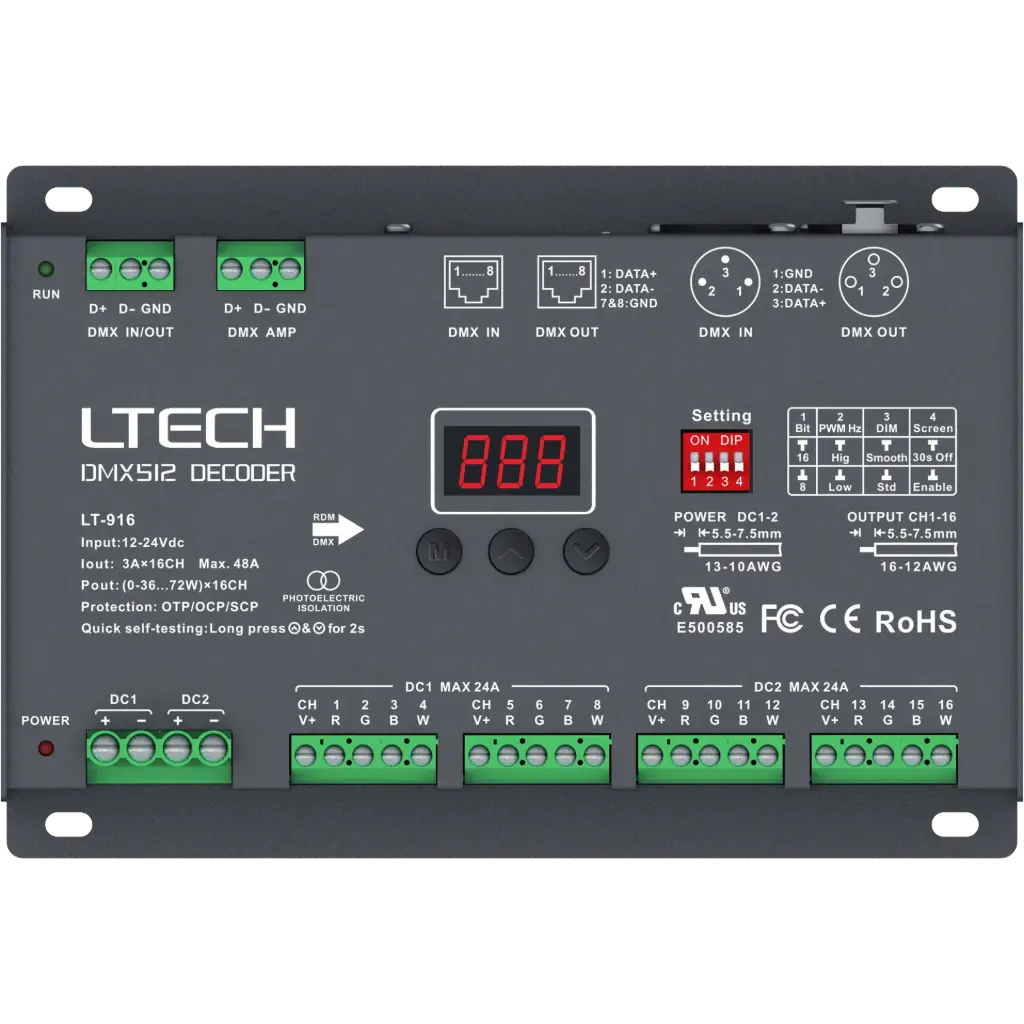

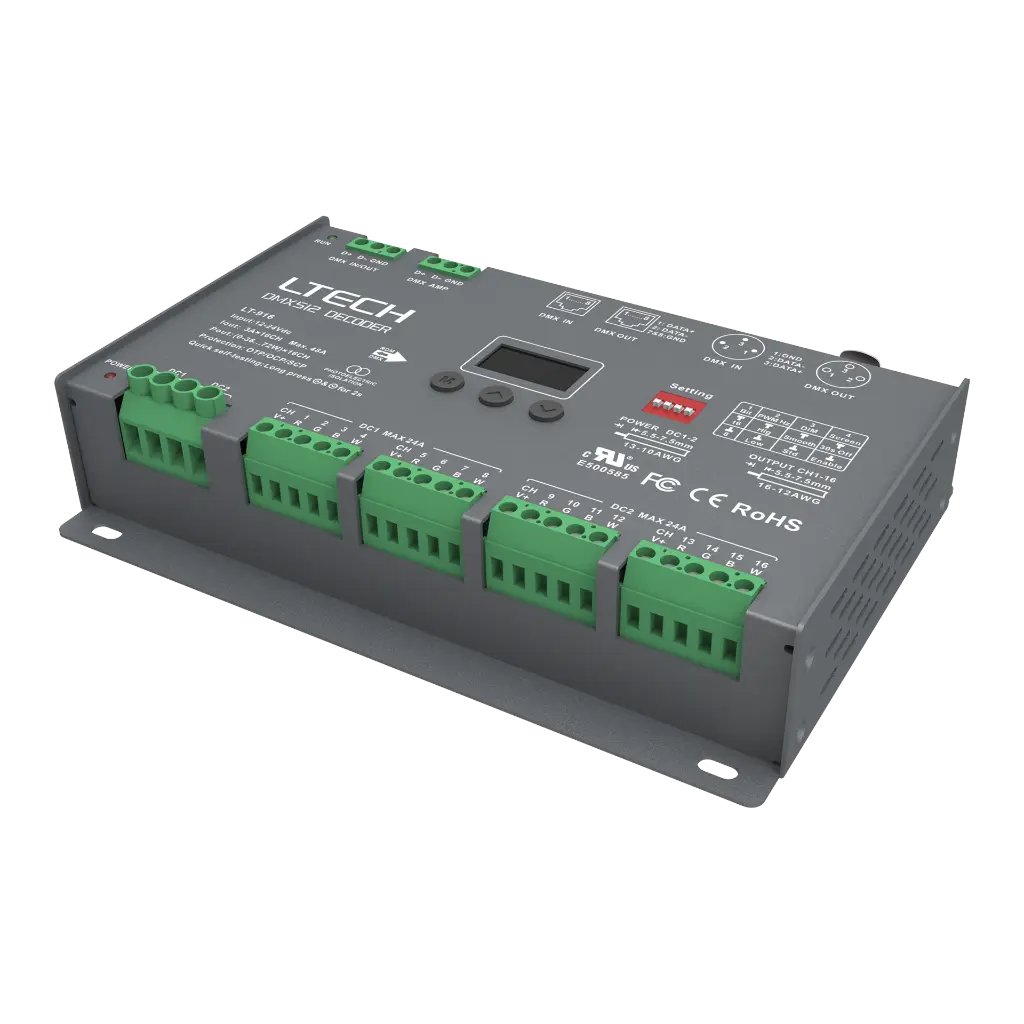

16-channel high-power controller with up to 1152W output. Features digital display with touch buttons, RDM remote management, firmware upgrade support, and selectable 8/16-bit gray levels with adjustable PWM frequency. Equipped with 3-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification. Includes power-on state management, fast self-testing, and complete protection with fault warnings.
Input signal: DMX512/RDM
Input voltage: 12~24V DC
Current load: 3A × 16CH Max. 48A
Photoelectric Isolation: Yes
Working Temperature: -30°C~65°C
Dimensions: L180 x W122 x H39 (mm)
Weight: 730g
