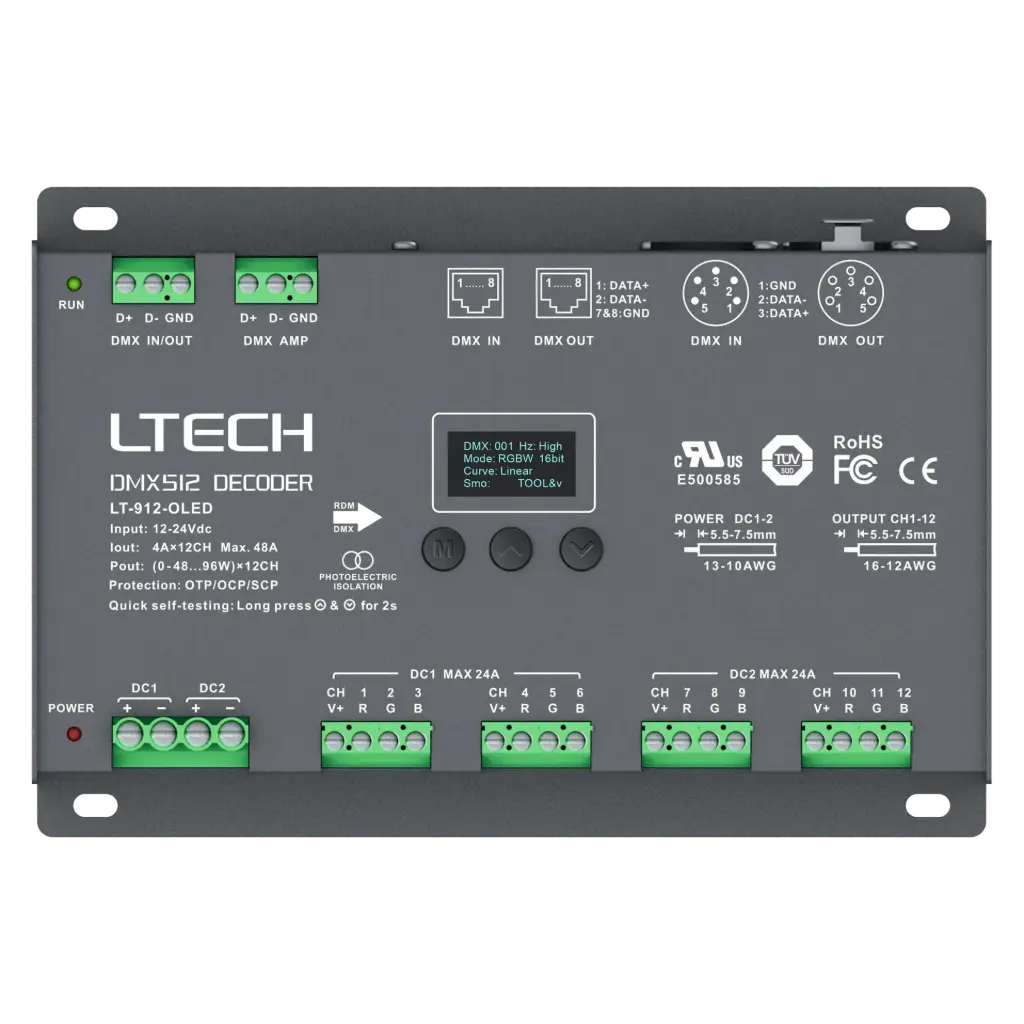

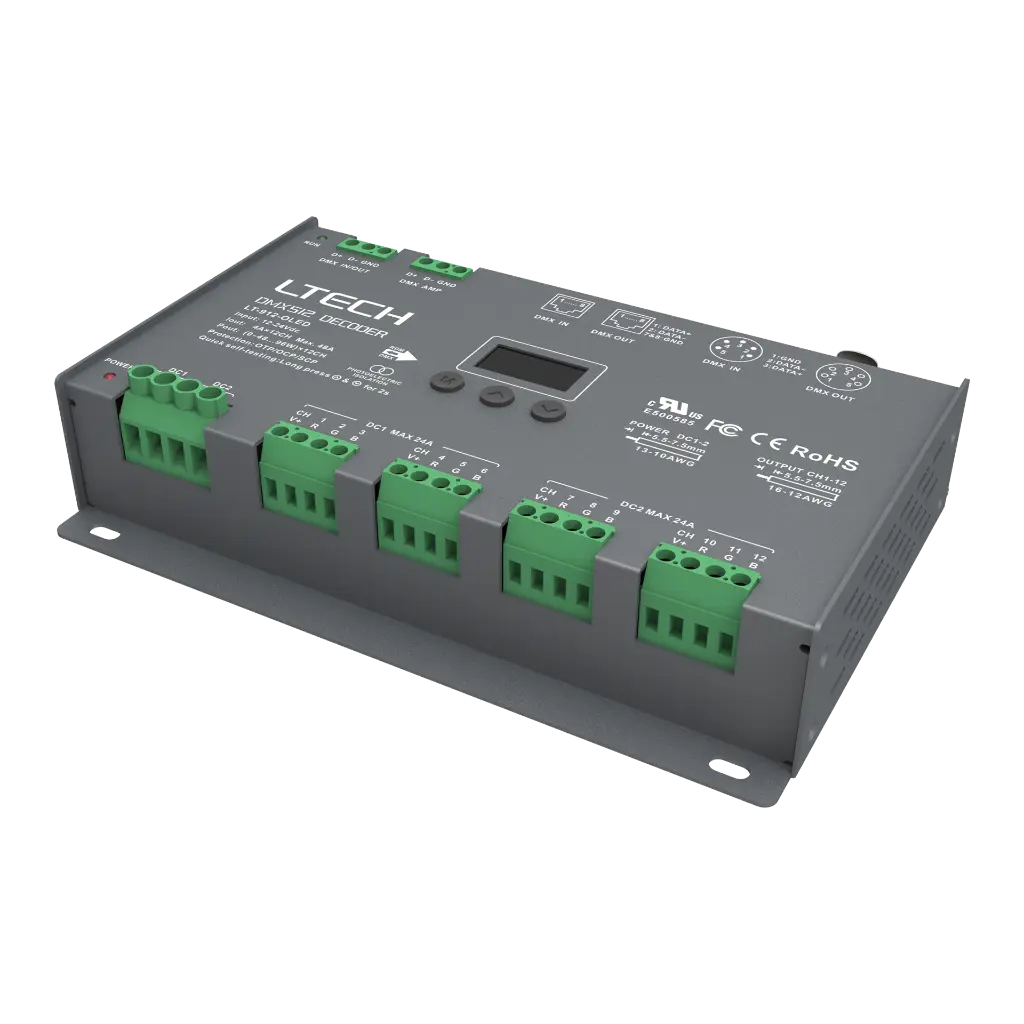

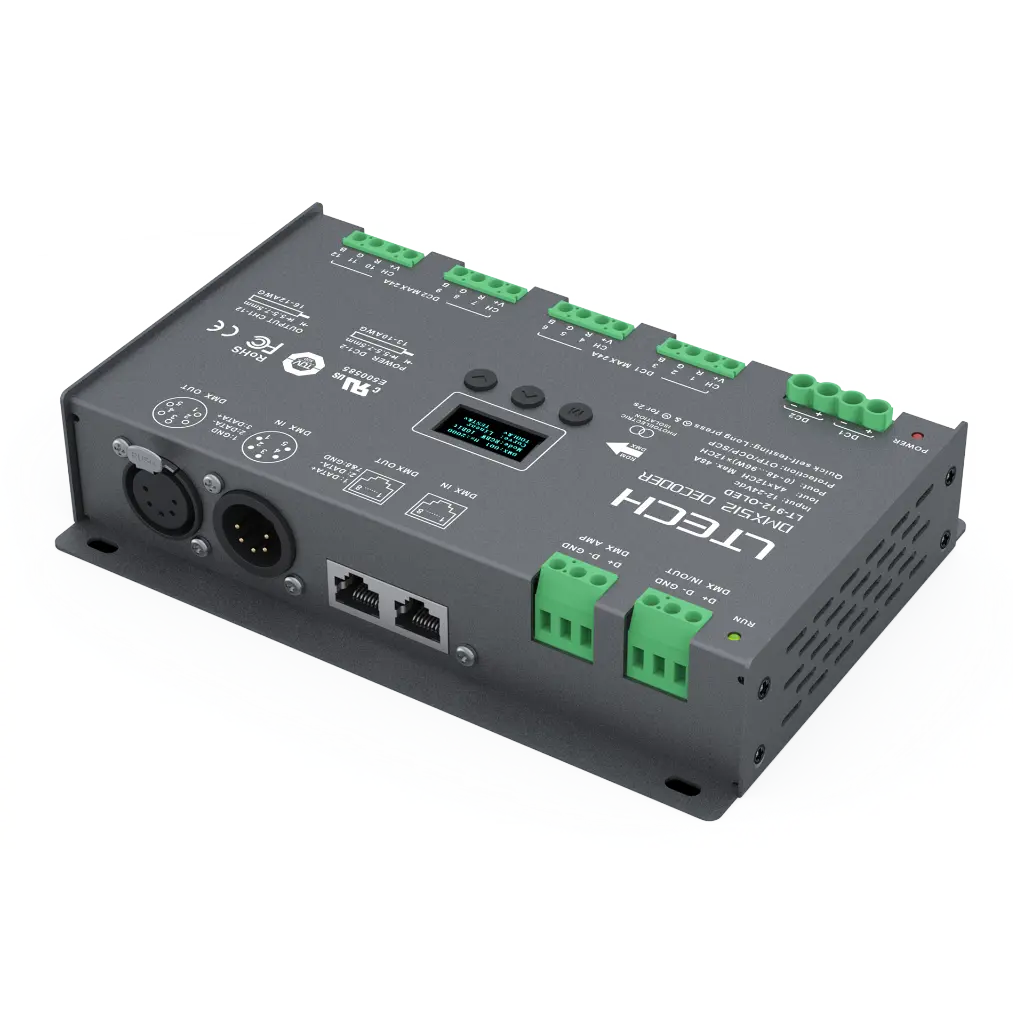

12-channel high-power controller with up to 4A per channel (1152W total). Features OLED screen with touch buttons, RDM remote management, and firmware upgrade support. Offers three modes (DIM, CT, RGB), selectable dimming curves (standard, linear, LOG, or custom), and reliable DMX connectivity via 5-pin XLR, RJ45, and green terminal with photoelectric isolation and signal amplification. Includes power-on state management, fast self-testing, and full protection with fault warnings.
• Input signal: DMX512/RDM
• Input voltage: 12~24V DC
• Current load: 4A × 12CH Max. 48A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L180 x W122 x H39 (mm)
• Weight: 730g
