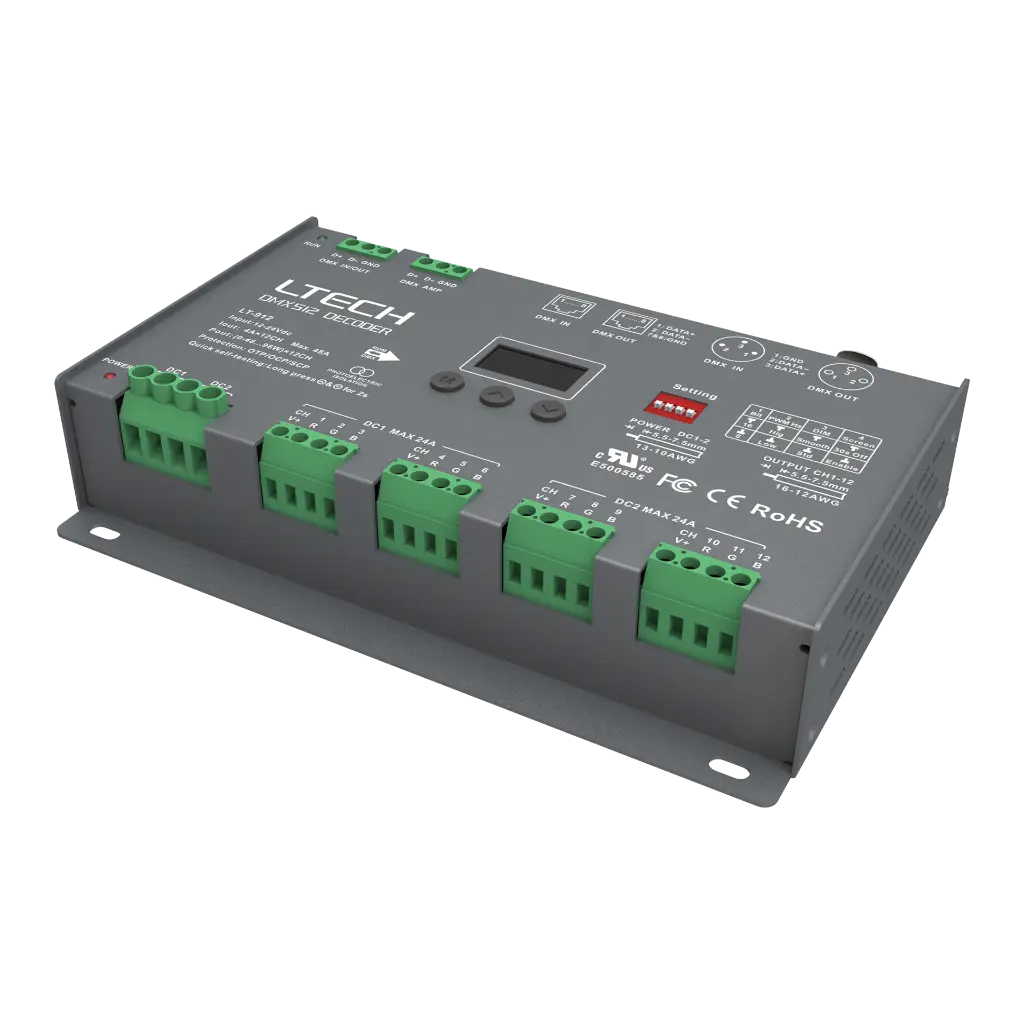

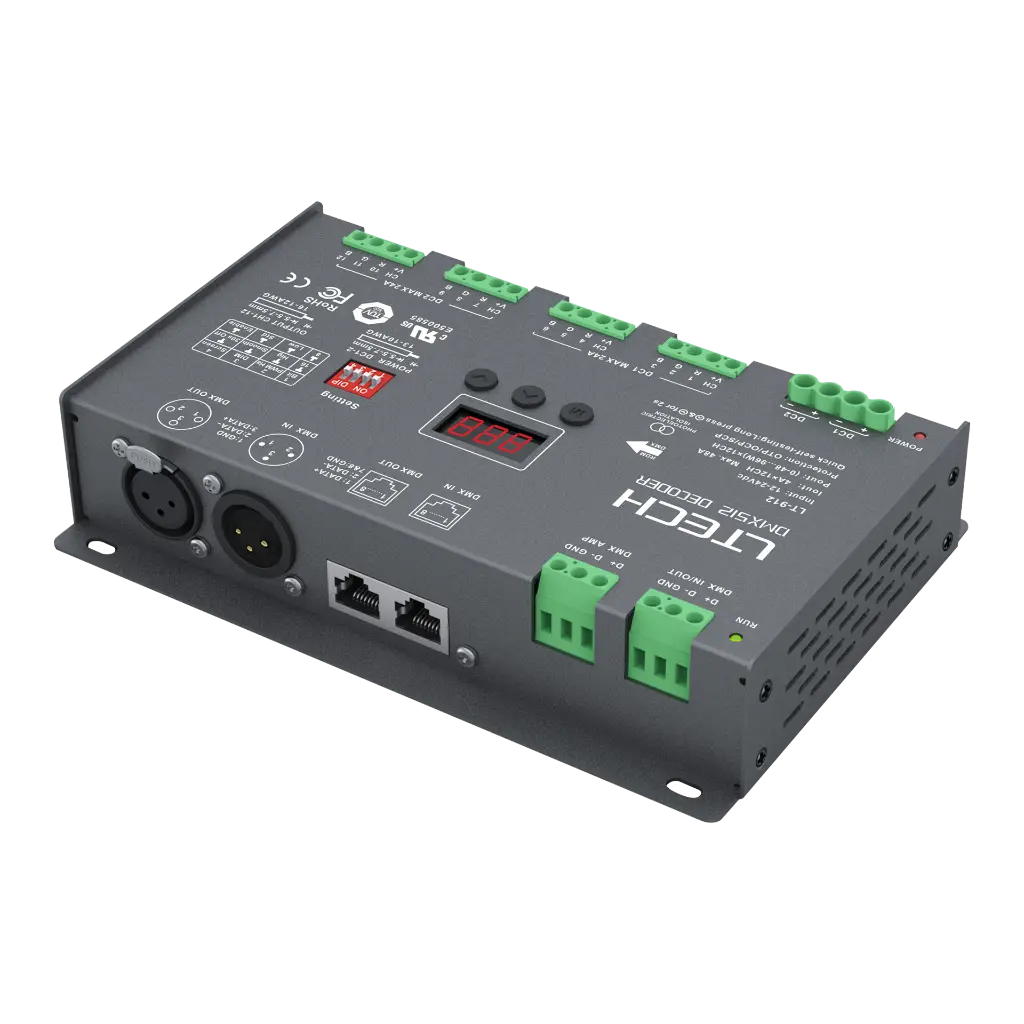

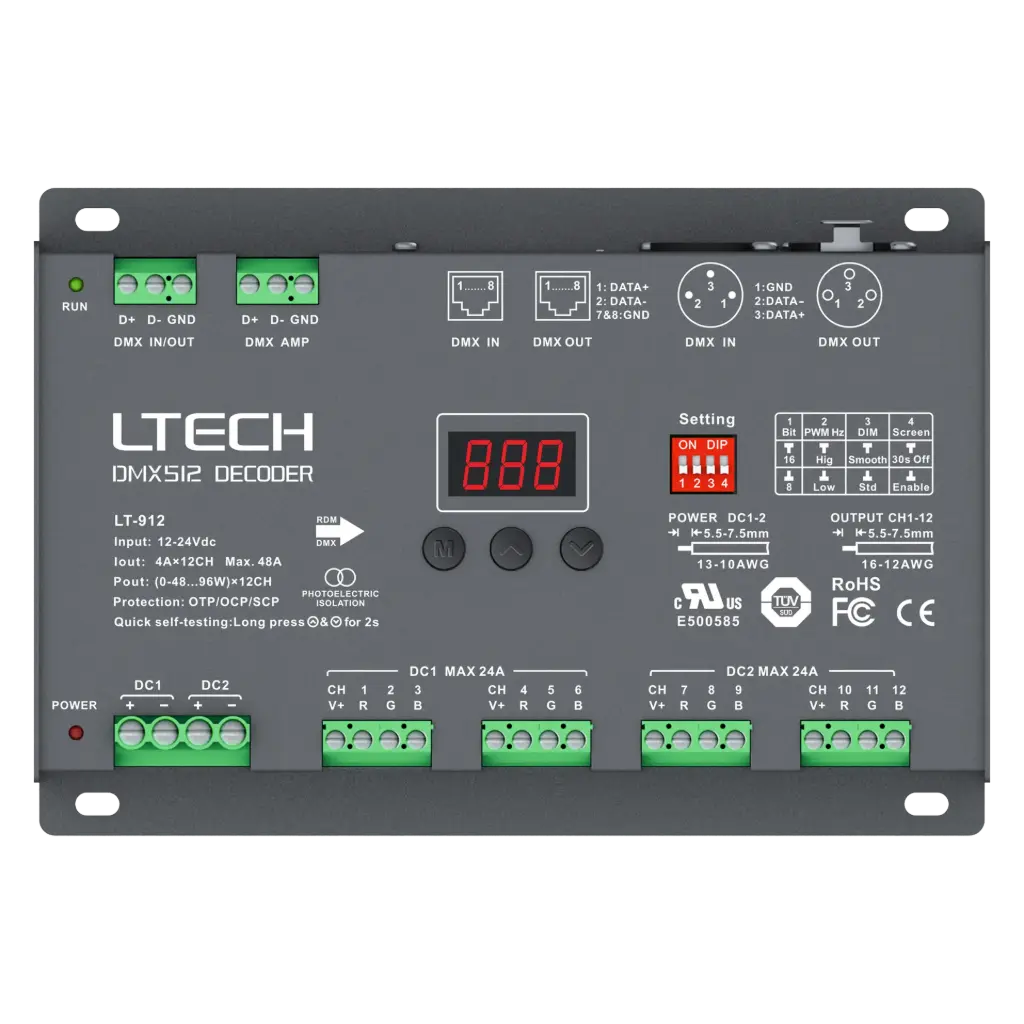

12-channel controller designed for high-power applications, delivering up to 1152W output. Features digital display with touch buttons, RDM remote management, firmware upgrade, and selectable 8/16-bit gray levels with adjustable PWM frequency. Supports 3-pin XLR, RJ45, and green terminal DMX interfaces with photoelectric isolation and signal amplification. Includes power-on state management, fast self-testing, and full protection with fault warnings.
• Input signal: DMX512/RDM
• Input voltage: 12~24V DC
• Current load: 4A × 12CH Max. 48A
• Photoelectric Isolation: Yes
• Working Temperature: -30°C~65°C
• Dimensions: L180 x W122 x H39 (mm)
• Weight: 730g
