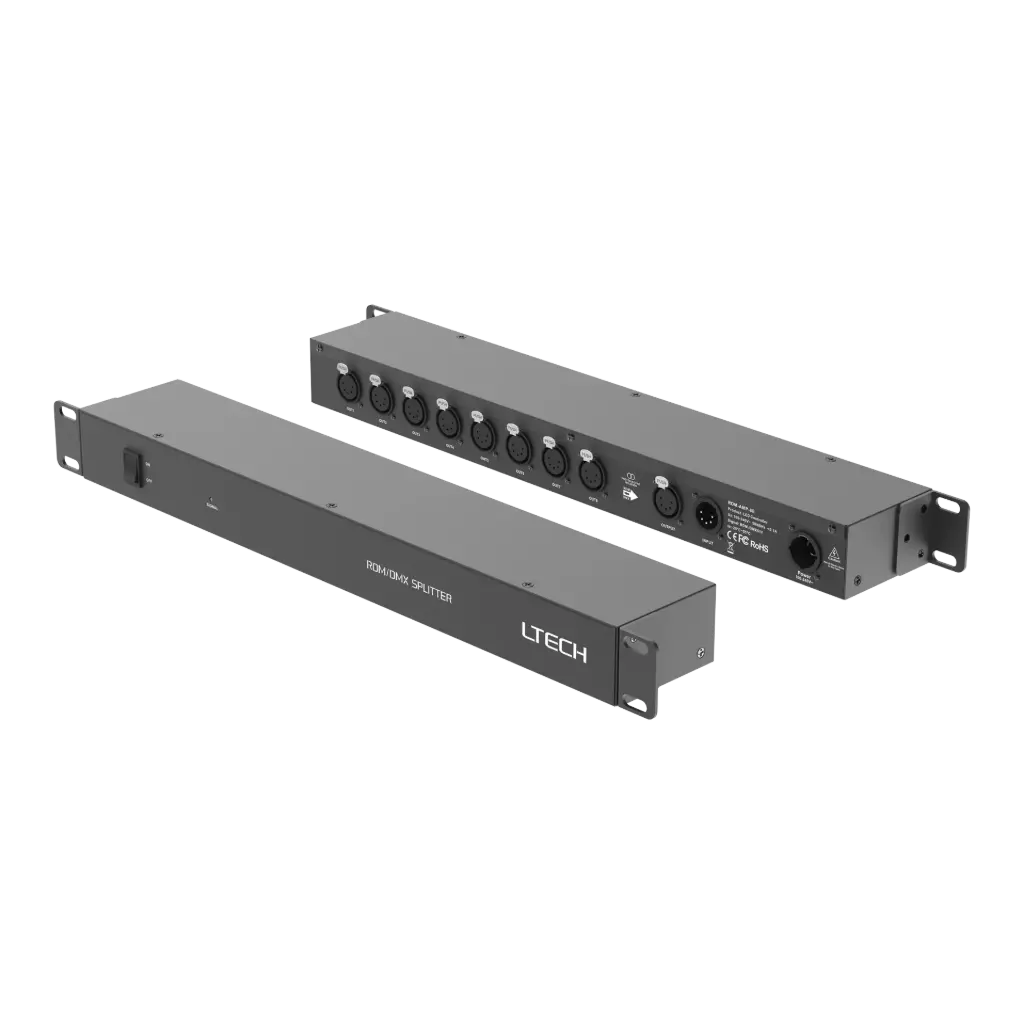

This 1U rack-mounted DMX/RDM signal amplifier features 1 input and 8 isolated outputs, automatically recognizing DMX/RDM signals to expand device capacity. It includes relay and BYPASS functions to strengthen weak signals and extend transmission distance, with independent photoelectric isolation for enhanced safety and reliability. Equipped with Neutrik 5-pin XLR connectors, it is ideal for TV broadcast, stage, and entertainment lighting applications.
• Input Voltage: 100-240V~, 50/60Hz
• Input Signal: 1CH DMX/RDM Signal input (photoelectric isolation >3KV)
• Output Signal: 8CH DMX/RDM signal output (photoelectric isolation >3KV), 1CH Output (BYPASS)
• Input Port: 5-pin XLR-1
Output Port: 5-pin XLR x 8
• Working Temperature: -20°C~55°C
• Dimensions: L486 x W76 x H44 (mm)
• Weight: 1150g
