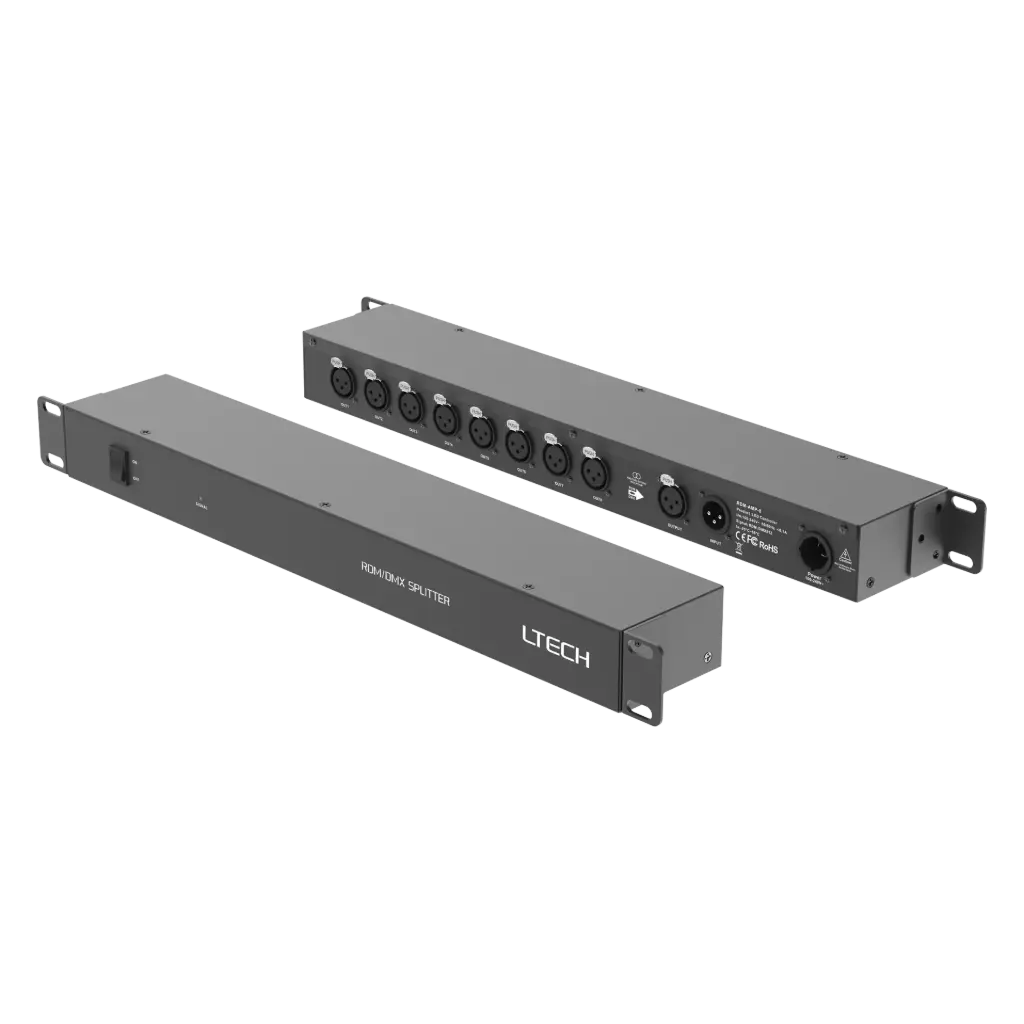

This rack-mounted DMX/RDM signal amplifier features 1 input and 8 outputs with photoelectric isolation to enhance safety and reliability. It automatically recognizes DMX/RDM signals, offering relay and BYPASS functions to extend transmission distance and expand device capacity. Equipped with Neutrik 3-pin XLR connectors, it is ideal for TV broadcast, stage, and entertainment lighting applications.
• Input Voltage: 100-240V~, 50/60Hz
• Input Signal: 1CH DMX/RDM signal input (photoelectric isolation>3KV)
• Output Signal: 8CH DMX/RDM signal outputs (photoelectric isolation>3KV)
, 1CH output (BYPASS)
• Input Port: 3-pin XLR×1 + OUTPUT (BYPASS)×1
Output Port: 3-pin XLR×8
• Working Temperature: -25°C~55°C
• Dimensions: L485 × W75 × H44 (mm)
• Weight: 1150g
