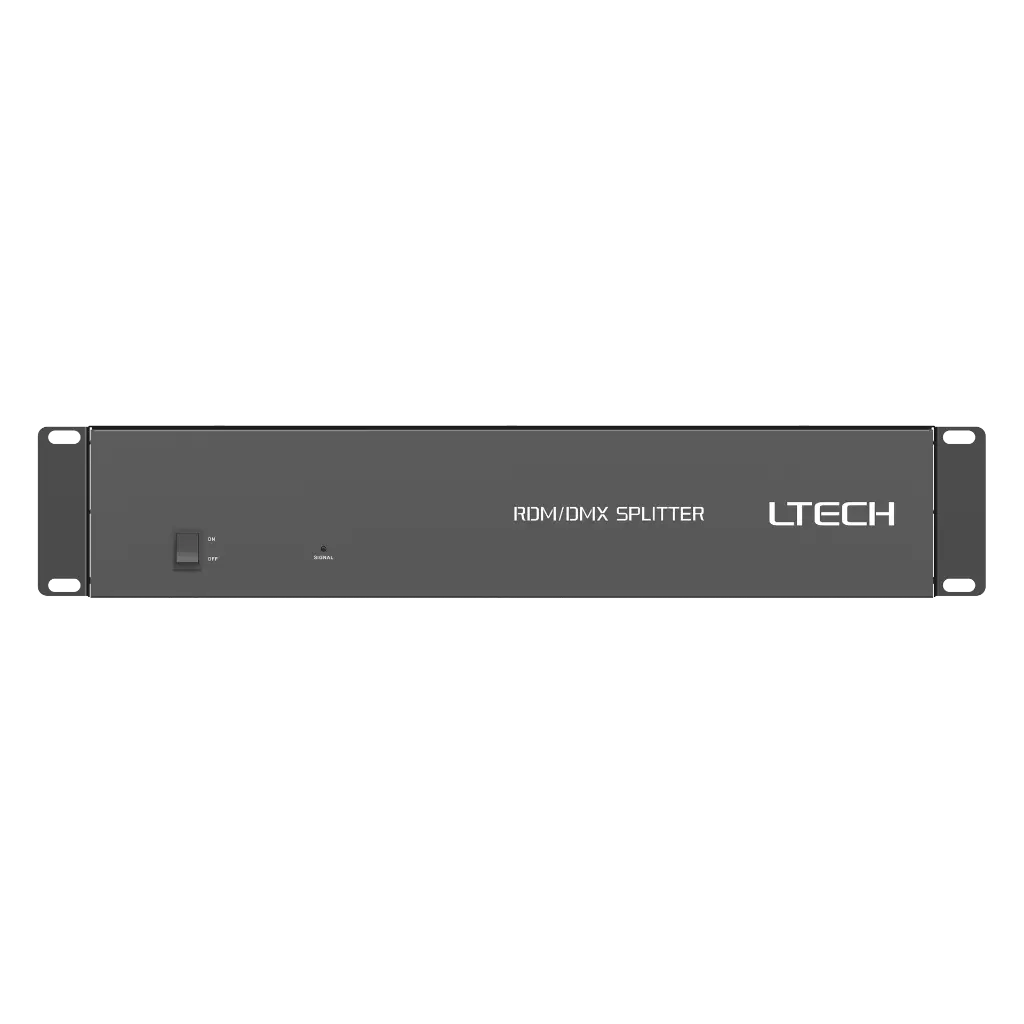

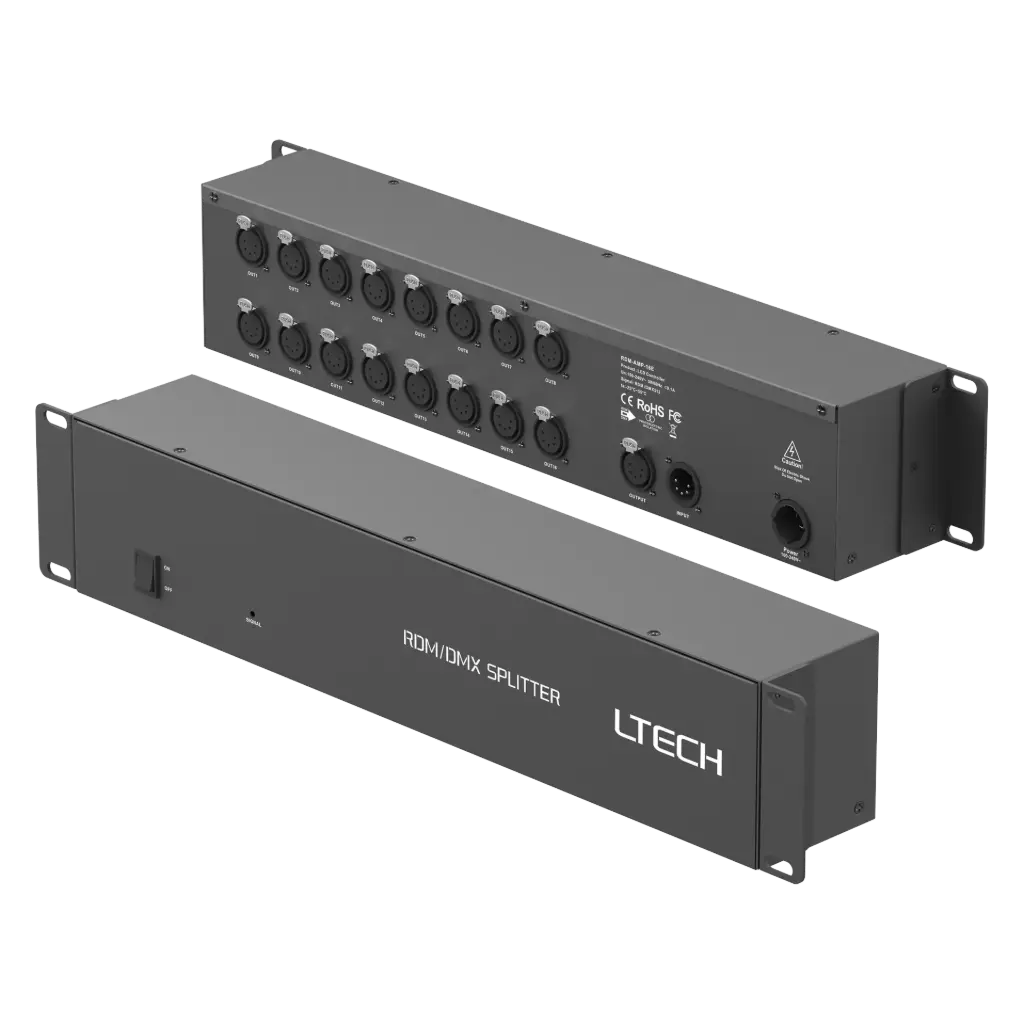

This 1U rack-mounted DMX/RDM signal amplifier provides 1 input and 16 outputs with independent photoelectric isolation for maximum safety and reliability. It automatically recognizes DMX/RDM signals and features relay and BYPASS functions to extend transmission distance and expand device capacity. With Neutrik 3-pin and 5-pin XLR connectors, it ensures secure connections, making it ideal for TV broadcast, stage, and entertainment lighting applications.
• Input Voltage: 100-240V~, 50/60Hz
• Input Signal: 1CH DMX/RDM signal outputs (photoelectric isolation >3KV)
• Output Signal: 16CH DMX/RDM signal outputs (photoelectric isolation >3KV) 1CH Output (Bypass)

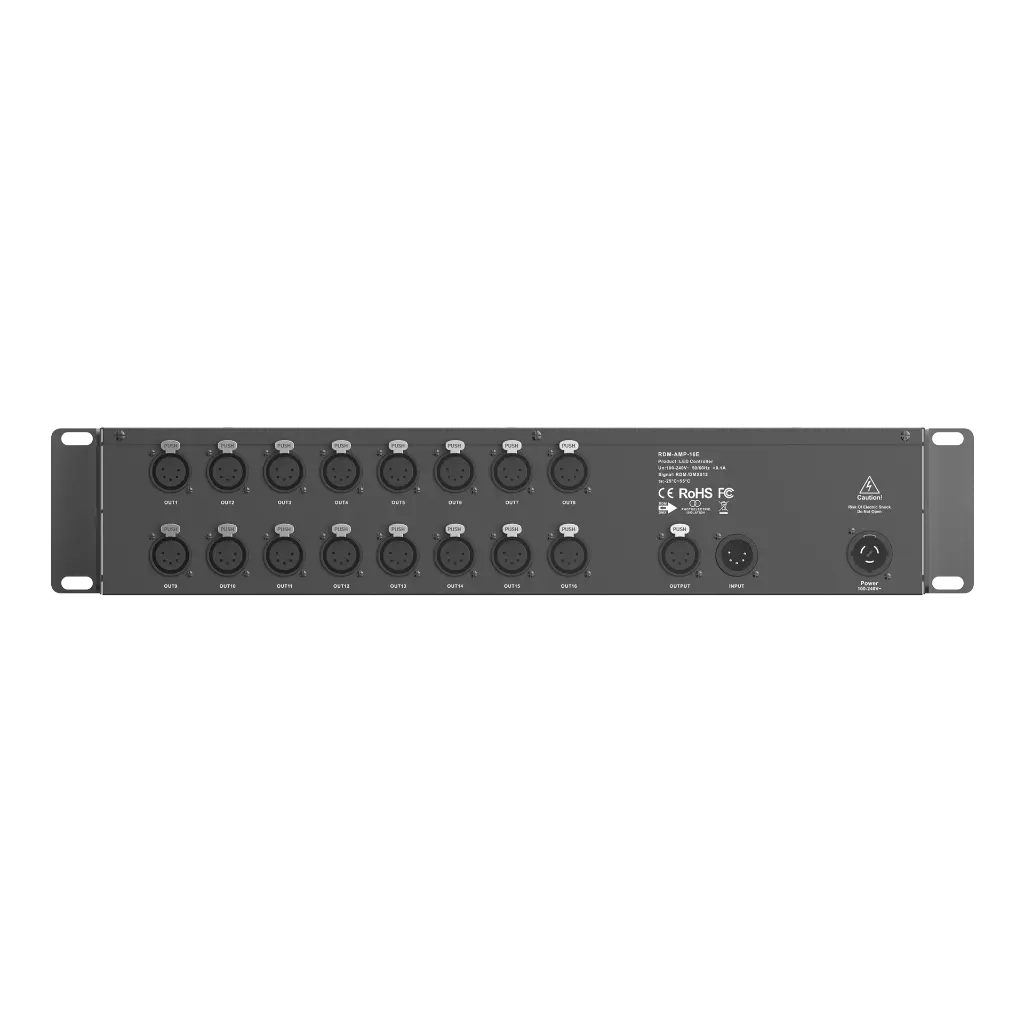

Input Port: 5-pin XLR x 1
Output Port: 5-pin XLR x 16
• Working Temperature: -20°C~55°C
• Dimensions: L486.5 x W88 x H85 (mm)
• Weight: 1922g
