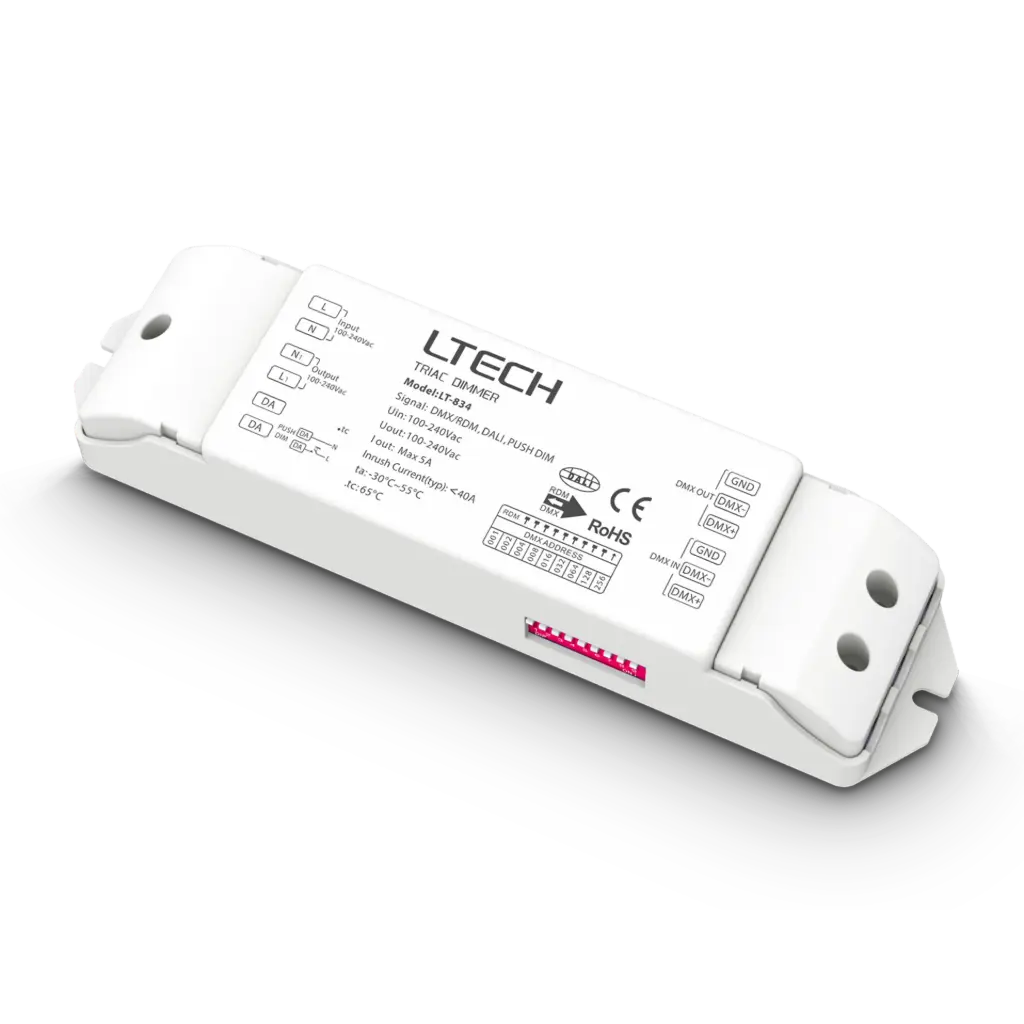

This dimming module supports DALI, DMX/RDM, and Push DIM interfaces with a leading-edge phase-cut dimming output. It handles up to 5A current load and works with bulbs or triac dimming drivers. Built-in overload protection provides automatic recovery, while the full protective plastic housing ensures safety. Compliant with IEC62386-101, 102, and 207 DALI standards, it is designed for reliable use in indoor environments.
• Input Voltage: 100~240V AC, 50-60Hz
• Output Current: Max. 5A
• Load Power:
Incandescent lamp: 25-500W
High-Voltage halogen lamp: 25-500W
• Dimming LEDs: 6-300W
• Working Temperature: -30°C~55°C
• Dimensions: L175 x W44 x H30 (mm)
• Weight: 140g
