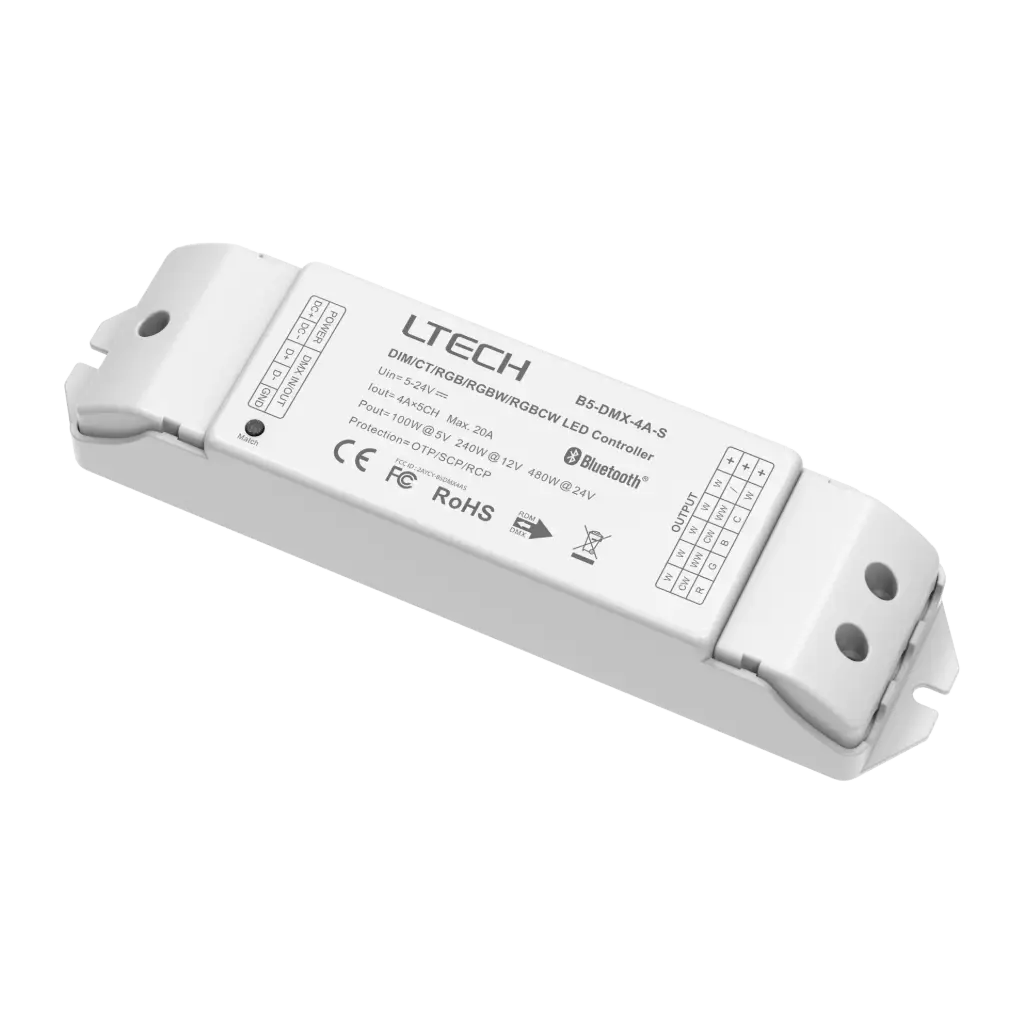

This compact, lightweight controller features a flame-retardant PC housing and Bluetooth 5.0 SIG Mesh for stable, reliable networking. It supports DMX512/RDM and Bluetooth/DMX intelligent control, with soft-on and fade-in dimming for visual comfort. Compatible with DIM, CT, RGB, RGBW, and RGBWY lights, it allows advanced dimming parameter settings, remote control via the Super Panel, and iOS/Android device operation, with customizable soft-start timing and power-on lighting state.
• Wireless Protocol Type: Bluetooth 5.0 Mesh, DMX/RDM
• Output Voltage: 5-24V DC
• Input Voltage Range: 5-24V DC
• Load Current: 4Ax5CH / 5Ax4CH Max. 20A
• Load Power: (0~20W... 96W) x 5CH Max. 480W
• Working Temperature: -20°C~55°C
• Dimensions: L175 x W44 x H30 (mm)
• Weight: 130g
