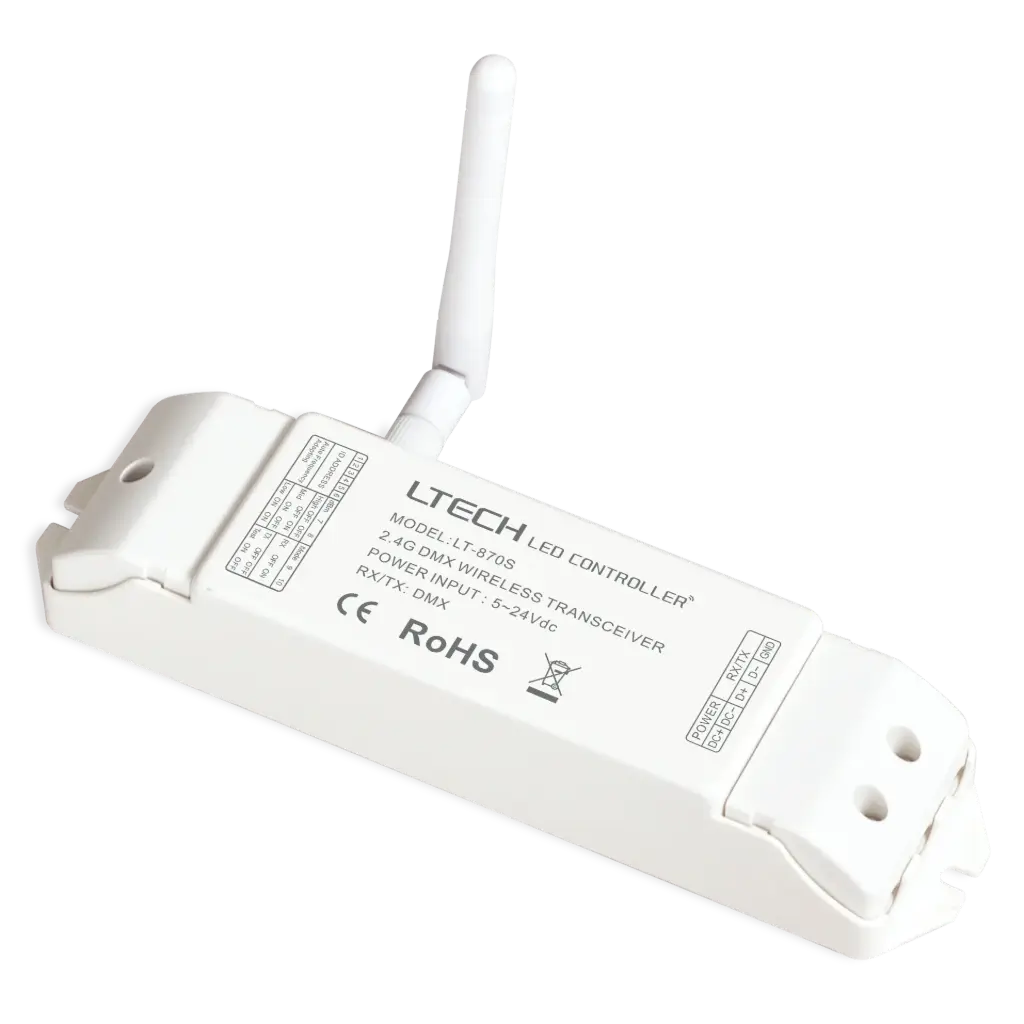

A wireless DMX512 transceiver that replaces traditional wired connections, ensuring fast, reliable, and delay-free data transmission. It supports point-to-point or point-to-multipoint communication, with one emitter pairing to multiple receivers under the same ID. Featuring automatic frequency hopping, it selects clear channels for stable operation, whether used between a console and lights or directly between fixtures.
• Input Voltage: 5~24V DC
• Working Frequency: 2.4GHz
• Max. Transmitted Power: 20dBm
• Receiver Sensitivity: -96dBm
• Communication Distance: 350m (weather/environment affects the actual values)
• Working Temperature: -30°C~55°C
• Dimensions: L175 x W44 x H30 (mm)
• Weight: 125g
